We had a lull in the heavy winds during which I was able to get an initial alignment in and then up to DRMI locked.

The wind is now back up to the 30s mph and the IMC glitch is happening quite frequently (both on the rocky start-up to DRMI and thereafter).

Thus, I will be staying in DOWN until conditions improve.

Meanwhile, the HAM6 SHUTTER red alert came on with guardian telling me not to power up due to SHUTTER_FAILURE. I am investigating this.

Sun Nov 17 10:10:23 2024 INFO: Fill completed in 10min 20secs

TITLE: 11/17 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Wind
OUTGOING OPERATOR: TJ
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 44mph Gusts, 33mph 3min avg
    Primary useism: 0.12 μm/s
    Secondary useism: 0.32 μm/s
QUICK SUMMARY:

IFO is IDLE due to ENVIRONMENT.

In the last hour since TJ's OWL alog, the wind has not died down, and the microseism has only gone up.

With 50mph gusts, we are unable to lock. Will stay in idle until we can re-attempt lock.

On the bright side, the IMC is locked.

The IMC has been struggling to stay locked for the last few hours, interrupting locking and restarting the process. Ground motion has also not been kind with a 6.1M earthquake from Japan a few hours ago, and useism and wind on the rise. Since the wind is getting over 40mph gusts, I'm switching the Observatory Mode to Environment - Windy.

TITLE: 11/17 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Lock Acquisition
INCOMING OPERATOR: TJ
SHIFT SUMMARY:

3:01 UTC GRB-Short E 525935 We were not locked for the begining of this stand down event.

2024-11-17 3:27:53 NOMINAL_LOW_NOISE reached
3:30:27 OBSERVING reached

Violin ITMY Mode 5 is still rising on this lock.
I changed the Gain to 0 and waited 15 minutes to see if it will stop going up or even turn around.
I then tried about 3 minutes with the gain at -0.02 ( Nominal gain just negative) but it was obvious that the no gain is better than opposite gain.
I ended up just turnin goff the gain.

05:11 UTC Lockloss https://ldas-jobs.ligo-wa.caltech.edu/~lockloss/index.cgi?event=1415855535
This was a very fast lockloss , it doesn't look like the same IMC /FSS locklosses we have been seening. But the PSL-FSS_FAST_MON_OUT_DQ was still the first signal to change behavior.

Relocking notes:

Relocking has been made very difficult with the IMC constantly unlocking. Most of the Locklosses are in locking Green arms, but everyfew attempts it gets a little further like DRMI, then the IMC stops working again.
I tried turning the ISS off again, but it hasn't stopped it from unlocking the IMC.
I turned back on the ISS so  just in case H1 manager gets to about ISC_LOCK state 500 it will auto lock for him.

I couldn't get Past DRMI 1f, and ended up in a PRMI & Check Mich loop.

I tried to do an Intial_Alignment, But IMC would not stay locked for long enough.
I eventually waited for the IMC to lock then turned off the ISS Auto Locker for the duration of the Initial alignment.

Initial alignment went well with the ISS turnt off.
Trying to relock again.

TITLE: 11/17 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 159Mpc
OUTGOING OPERATOR: Ibrahim
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 15mph Gusts, 11mph 3min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.24 μm/s
QUICK SUMMARY:

H1 Has been locked for 1 Hour and 45 minutes.
DCPD's are diverging, Which I usually attribute to the Violins growing.
Turns out it's one of the usual suspects..... ITMY Mode 5 increasing.

I have turned the Gain off of ITMY m5 to see if it stays at that level or decreases.

The IFO stays locked until 1:25 UTC then I can do a Calibration sweep are the calibration time early today was missed by a lockloss.

TITLE: 11/16 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 157Mpc
INCOMING OPERATOR: Tony
SHIFT SUMMARY:

IFO is in NLN and OBSERVING as of 22:35 UTC

There was one IMC-caused Lockloss which ended our 13hr and 36 min lock acquisition. (alog 81310)

Stayed locked for the majority of this shift with one somewhat troublesome lock acquisiton for a number of reasons:

• ALSX was stuck at 0.15 cts, with a max of 0.3 cts after intervension. I went into manual initial alignment to continue troubleshooting. Jenne advised to touch ITMX, which worked. I was able to get ALSX to the normal ~0.8cts and let guardian successfully take it from there. Initial alignment happened fully auto.
• We were able to lock up until OFFLOAD_DRMI_ASC until a lockloss occured due to the IMC glitch. The IMC was still coming in and out, locking and unlocking for 4 more minutes.
• We were able to get all the way up to LOWNOISE_ESD_ETMX, before losing lock again.
• IFO was able to lock to NLN on the third and final try.

I was not able to take a calibration measurement due to the Lockloss, and we're not thermalized yet. I've informed Tony, the EVE operator, and he will take a calibration sweep once thermalized (01:24 UTC).

LOG:

None

Lockloss seemingly caused due to the IMC with MC2 losing lock within 1ms of ASC (attached).

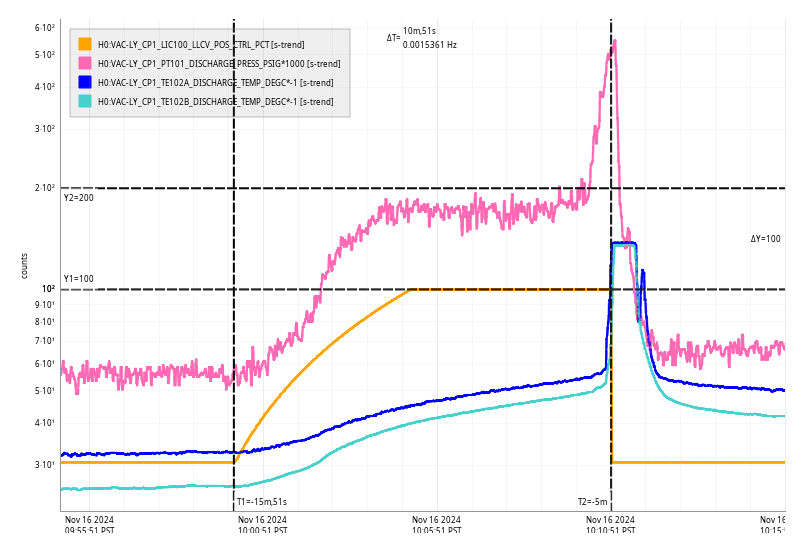

Sat Nov 16 10:10:51 2024 INFO: Fill completed in 10min 47secs

TITLE: 11/16 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 164Mpc
OUTGOING OPERATOR: TJ
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 12mph Gusts, 9mph 3min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.20 μm/s
QUICK SUMMARY:

IFO is in NLN and OBSERVING as of 05:34 UTC (10 hr lock!)

TITLE: 11/16 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Aligning
INCOMING OPERATOR: TJ
SHIFT SUMMARY:

Most of the meat of the shift has already been posted earlier.

Had a return of the FSS/IMC glitches this afternoon/evening.  Have made it back to Observing at the end of the shift though.

For the night we are set for locking for the OWL.  But if locking becomes an issue that lasts over 2hrs, plan is to take ISC LOCK to IDLE for the night.
LOG:

• 0007-0028 initial alignment
• 0111 OBSERVING
  • 0122-0131 PI 31 begins increasing pretty steadily over atleast 5min and started causing DCPD glitches, but then guardian finally was able to bring it down
  • 0208 LOCKLOSS (looks like an FSS/IMC glitch, @0211 IMC also caused on the order of min of downtime before relocking)
  • Several FSS and/or IMC glitches for a few locking attempts

• 0534 OBSERVING

Had about 20hrs with no IMC/FSS glitches from 9pm Thurs night until about 340pmPT Fri afternoon.  But have now had several for the last 5hrs.

Also for one ~60min stretch, H1 almost made it to NLN, but had rung up violins which kept us at OMC Whitening for 20min until the next IMC glitch.

Here are some running notes for the rough 5hrs filled with glitches (currently have H1 in IDLE).

Notes During Return of IMC/FSS Glitch Locklosses

2340utc (340pmPT) LOCKLOSS with IMC tag was the beginning of IMC/FSS glitch locklosses (where we went almost 20hrs since the last glitch around 5utc (9pmPT).

0111-0208:  OBSERVING

0208utc (608pmPT):  Attached screenshot shows a coincident glitch lockloss seen on FSS & IMC.  Here is the LOCKLOSS page also tagged with IMC glitch.

Starting an FRS Ticket to mark the DOWNTIME (FRS-32644) for 3.5hrs of DOWNTIME so far.  Where there was notable part of downtime due to IMC not locking easily.

• 0241 Lockloss at DARM to DC ReadOut looked like a FSS/IMC glitch lockloss---> IMC + FSS lockloss tags.
• 0255 Lockloss at RESONANCE also looked like a FSS/IMC glitch lockloss---> IMC lockloss tag
• 0256 Lockloss at READY ---> FSS lockloss tag
• 0334 lock made it almost to NLN, Yay Yay Yay!!!!   BUT it was a little delayed due to....

VIOLINS Rung Up A Bit: (haven't had this since my shift on Tues night!)   So were stuck at OMC WHITENING for over 20min before H1 had....

• 0357 Lockloss at OMC WHITENING (with an IMC LOCKLOSS tag)

So for the last 3hrs:

• 0208-0256:  50min with a flurry of FSS/IMC glitches causing locklosses at various states also causing IMC locking grief.
• 0256-0357:  Hour of NO glitch locklosses, and almost made it to NLN (but rung up violins prevented that).  Then another IMC glitch.
• 0420 Went to IDLE due to more locklosses and for a pause

Not sure what is more useful.  Keep having ISC LOCK continue to locking, or to leave it in IDLE for IMC/PMC/FSS monitoring....

For FAMIS #26340:  All looks well for the last week for all site HVAC fans (see attached trends).

TITLE: 11/16 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Aligning
INCOMING OPERATOR: Corey
SHIFT SUMMARY:

IFO is LOCKING in ENGAGE_ASC_FOR_FULL_IFO

Just had a lockloss and trying to get back to observing. IFO has been quite well behaved today. Both lock acquisitions were fully automatic with H1 needing no intervention.

That being said, we did have two locklosses.

Lockloss 1: ETM glitch caused.

Lockloss 2: IMC caused.

LOG:

None

TITLE: 11/16 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Aligning
OUTGOING OPERATOR: Ibrahim
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 14mph Gusts, 11mph 3min avg
    Primary useism: 0.03 μm/s
    Secondary useism: 0.28 μm/s
QUICK SUMMARY:

Walked in to a locking h1, which then has moved on to INITIAL ALIGNMENT.  Ibrahim shared how H1 has had a better time--so am cautiously optimistic for the night---with the goal of OBSERVING!

Environmentally we are becoming quieter with µseism dropping below the 95th percentile and winds not too breezy.

Ibrahim, Ryan S

Seems like an IMC lockloss. Interestingly, there was no obviously glitchy behavior (as previously observed) before or after the lockloss. Attached screenshot of ASC and IMC losing lock.

Sheila, Vicky.

We changed the low pass filtering on the ADF SQZ angle servo to be lower, going from 1 Hz low pass to 0.1 Hz low pass on the ADF I/Q demod filter banks. I think this reduced the sqz angle readback noise a bit (trends before/after). It didn't make a huge impact on the control signal that goes to the CLF_RF6 demod phase (bottom purple trace), and it might be worth considering low pass filtering that control signal too. I accepted the SDFs for this filter bank LPF change.
