TITLE: 08/21 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Corrective Maintenance
CURRENT ENVIRONMENT:
SEI_ENV state: MAINTENANCE
Wind: 6mph Gusts, 5mph 5min avg
Primary useism: 0.01 μm/s
Secondary useism: 0.07 μm/s
QUICK SUMMARY: Corner volume pumpdown continues; HAM5/6 HEPIs are still locked but are ready to be unlocked again.
Today's activities: - After the replacement of the PT-154 gauge (https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=79599), and after the small volume of the gauge was pumped overnight, now it has been valved together with the main volume - The small Pfeiffer turbo, along with the leak checker was taken off from the gauge's volume - Then, the HAM7-BSC3 small FCT section was valved together with HAM7 - FCV-1 opened - The 2 aux carts have been taken off from the HAM5/HAM6 annulus system - An aux cart was added to GV7 for safety reasons, to protect its annulus system during opening it up - The HAM6 turbo was valved out. The reason for valving it out so early is that the backing scroll pump had horrendous noise, so it needs rebuilding, and would have not been a good decision to let it run overnight. Especially, that the backing pressure was slowly growing. The hoses, cables, and the cart was also put away - RGA scans were collected at the corner, before opening up the large gate valves - GV5 and GV7. The results will be posted to the comment section
Yesterday morning I unlocked HAM5&6 HEPIs, unaware that VAC needed back up on that chamber to disconnect turbos. This afternoon, Mitch and Ibrahim helped me re-lock those HEPIs. Because we didn't think any alignment work would be needed before unlocking again, we didn't use the normal procedure to try to preserve HEPI position, I just turned off the loops and we engaged the stops. Even so, the biggest offsets from operating position are less than 50 um/urad, most are more like 10.
Jim, the vacuum team finished with all the works around HAM5 and HAM6, so feel free to unlock the HEPIs.
Unlocked now.
TITLE: 08/20 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Corrective Maintenance
SHIFT SUMMARY: Just some light maintenance activities today as pumpdown continues. HAM5/6 HEPIs were locked so VAC team could valve out the turbopump on top of HAM6.
LOG:
Start Time | System | Name | Location | Lazer_Haz | Task | Time End |
---|---|---|---|---|---|---|
14:41 | CDS | Erik | CR | n | Restarting Picket Fence | 14:48 |
15:30 | FAC | Nelly | FCES | n | Technical cleaning | 16:22 |
15:40 | CAL | Dave | remote | n | restart h1calcs | 17:15 |
15:40 | DAQ | Dave | remote | n | Restart NDS1 | 17:15 |
15:42 | FAC | Karen | LVEA | n | Technical cleaning | 17:10 |
15:50 | FAC | Kim | EX | n | Technical cleaning | 16:49 |
16:14 | PEM | Genevieve, Sam | MY | n | Checking access | 16:30 |
16:23 | FAC | Tyler, Eric | LVEA | n | Moving cabinets | 17:01 |
16:42 | OPS | RyanC | LVEA | n | Restarting dust monitor | 16:50 |
16:45 | PSL | RyanS | CR | n | FSS RefCav alignment | 17:59 |
16:49 | FAC | Kim | LVEA | n | Technical cleaning | 17:50 |
16:58 | VAC | Jordan | MY, EY | n | Turbopump check | 19:15 |
16:59 | VAC | Travis | MX, EX | n | Turbopump check | 19:46 |
17:10 | FAC | Karen | MY | n | Technical cleaning | 18:16 |
17:14 | FAC | Richard | LVEA | n | Safety walkabout | 17:31 |
17:52 | ISC | Elenna | CR | n | IM transfer functions | 18:49 |
17:59 | FAC | Kim | MX | n | Technical cleaning | 18:51 |
18:33 | VAC | Janos | LVEA | n | VAC checks | 18:41 |
19:42 | SEI | Jim, Mitchell, Ibrahim | LVEA | n | Locking HAM5/6 HEPI | 19:58 |
20:08 | PEM | Genevieve, Sam | MX, EX, MY, EY | n | Taking pictures of PEM equipment | 21:43 |
20:38 | VAC | Janos, Jordan, Gerardo | LVEA | n | VAC checks | 21:38 |
22:04 | PEM | Robert, Genevieve, Sam | EBay | n | PEM things | 22:27 |
22:21 | VAC | Jordan, Gerardo | FCES | n | Move turbopump on HAM8 | Ongoing |
22:28 | PEM | Robert, Genevieve, Sam | LVEA | n | Taking pictures of PEM equipment | 23:13 |
22:30 | CAL | Tony | PCal Lab | local | PCal checks | 23:03 |
23:08 | VAC | Janos | LVEA | n | Valving out HAM6 turbo (on-chamber) | Ongoing |
MiriamR, RickS, TonyS, FranciscoL
On Monday, August 19, we moved the X-End pcal inner beam to be centered on the Rx input port. The previous configuration had the inner beam to the right of the Rx input port by 5mm. We centered the beam to the desigated position before the interferometer resumes the obsevation run.
Note: Screwing the yaw-adjuster in a clock-wise motion moves the beam from the right side of the target to the center (goes to the left).
The voltage from BothBeamsBefore.jpg was of 3.383 V as measured with a hanheld voltmeter, after moving the beams (see BothBeamsAfter.jpg) the voltage was of 3.384. EndStationLog.pdf has a list of voltage values with the corresponding times (local timezone) at which they were measured.
Janos, Dave:
After review of the current pressure alarms, we came up with the following changes:
1. Janos requested that PT120B (BSC2-BS) be replaced with PT132_MOD2 (BSC3-ITMX). The latter is a less noisy signal.
2. For alarms where the high level is an order of magnitude greater than the signal average, reduce the high to be about 3*avg
These changes were made and installed at 13:50 during the reboot of cdslogin.
To help with the review of the vacuum alarms I wrote a python program which compares the alarm HIGH value with a hours worth of minute trend data (AVG and MAX). If MAX/HIGH > 10 it flags the channel.
Code output before the change:
Compare Vac Alarm levels with past 1 hour of data
H0:VAC-LX_X4_PT144B_PRESS_TORR VE gauge, LX X1-beamtube, CC: high=5e-08 avg=2.27E-09 max=2.29E-09 ratio=2.18E+01!
H0:VAC-MX_X1_PT343B_PRESS_TORR VE gauge, MX X1-beamtube, CC: high=5e-09 avg=1.91E-09 max=1.93E-09 ratio=2.59E+00
H0:VAC-MX_X5_PT346B_PRESS_TORR VE gauge, MX X2-beamtube, CC: high=5e-09 avg=1.34E-09 max=1.35E-09 ratio=3.70E+00
H0:VAC-EX_X1_PT523B_PRESS_TORR VE gauge, EX X2-beamtube, CC: high=5e-09 avg=1.16E-09 max=1.17E-09 ratio=4.27E+00
H0:VAC-LY_Y4_PT124B_PRESS_TORR VE gauge, LY Y1-beamtube, CC: high=5e-08 avg=3.08E-09 max=3.15E-09 ratio=1.59E+01!
H0:VAC-MY_Y1_PT243B_PRESS_TORR VE gauge, MY Y1-beamtube, CC: high=5e-09 avg=1.39E-09 max=1.41E-09 ratio=3.55E+00
H0:VAC-MY_Y4_PT245B_PRESS_TORR VE gauge, MY CP4, CC: high=5e-09 avg=1.32E-09 max=1.34E-09 ratio=3.74E+00
H0:VAC-MY_Y5_PT246B_PRESS_TORR VE gauge, MY Y2-beamtube, CC: high=5e-09 avg=1.73E-09 max=1.77E-09 ratio=2.83E+00
H0:VAC-EY_Y1_PT423B_PRESS_TORR VE gauge, EY Y2-beamtube, CC: high=5e-09 avg=1.28E-09 max=1.29E-09 ratio=3.87E+00
H0:VAC-LY_Y3_PT114B_PRESS_TORR VE gauge, CP1 LY vac gauge, CC: high=5e-08 avg=2.30E-09 max=2.33E-09 ratio=2.14E+01!
H0:VAC-LX_Y8_PT132_MOD2_PRESS_TORR VE gauge, PT120B BSC2 CC: high=2e-07 avg=1.94E-07 max=1.95E-07 ratio=1.03E+00
H0:VAC-LY_X0_PT100B_PRESS_TORR HAM1 VAC: high=5e-06 avg=3.34E-08 max=3.35E-08 ratio=1.49E+02!
Code output after the change:
Compare Vac Alarm levels with past 1 hour of data
H0:VAC-LX_X4_PT144B_PRESS_TORR VE gauge, LX X1-beamtube, CC: high=6e-09 avg=2.28E-09 max=2.30E-09 ratio=2.61E+00
H0:VAC-MX_X1_PT343B_PRESS_TORR VE gauge, MX X1-beamtube, CC: high=5e-09 avg=1.92E-09 max=1.94E-09 ratio=2.58E+00
H0:VAC-MX_X5_PT346B_PRESS_TORR VE gauge, MX X2-beamtube, CC: high=5e-09 avg=1.34E-09 max=1.35E-09 ratio=3.69E+00
H0:VAC-EX_X1_PT523B_PRESS_TORR VE gauge, EX X2-beamtube, CC: high=3e-09 avg=1.17E-09 max=1.17E-09 ratio=2.56E+00
H0:VAC-LY_Y4_PT124B_PRESS_TORR VE gauge, LY Y1-beamtube, CC: high=9e-09 avg=3.10E-09 max=3.17E-09 ratio=2.84E+00
H0:VAC-MY_Y1_PT243B_PRESS_TORR VE gauge, MY Y1-beamtube, CC: high=5e-09 avg=1.40E-09 max=1.41E-09 ratio=3.54E+00
H0:VAC-MY_Y4_PT245B_PRESS_TORR VE gauge, MY CP4, CC: high=5e-09 avg=1.33E-09 max=1.34E-09 ratio=3.72E+00
H0:VAC-MY_Y5_PT246B_PRESS_TORR VE gauge, MY Y2-beamtube, CC: high=5e-09 avg=1.74E-09 max=1.77E-09 ratio=2.83E+00
H0:VAC-EY_Y1_PT423B_PRESS_TORR VE gauge, EY Y2-beamtube, CC: high=5e-09 avg=1.29E-09 max=1.29E-09 ratio=3.86E+00
H0:VAC-LY_Y3_PT114B_PRESS_TORR VE gauge, CP1 LY vac gauge, CC: high=6e-09 avg=2.32E-09 max=2.35E-09 ratio=2.55E+00
H0:VAC-LX_Y8_PT132_MOD2_PRESS_TORR VE gauge, PT132 BSC3: high=6e-07 avg=1.94E-07 max=1.95E-07 ratio=3.08E+00
H0:VAC-LY_X0_PT100B_PRESS_TORR HAM1 VAC: high=9e-08 avg=3.34E-08 max=3.35E-08 ratio=2.68E+00

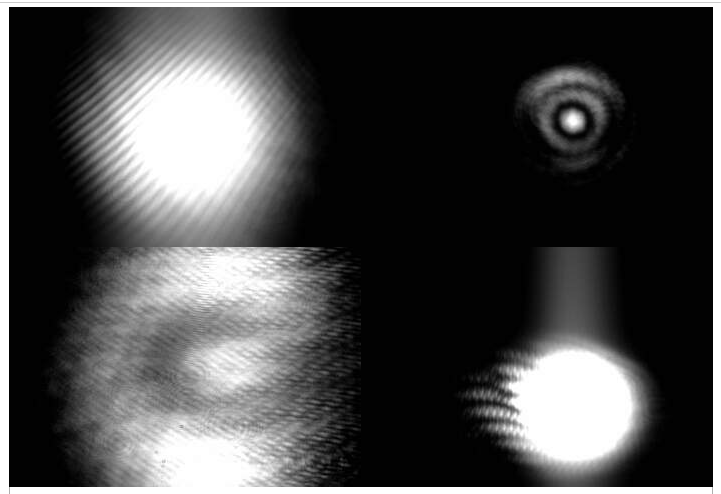

This morning, I attempted to improve the FSS RefCav alignment as the signal on the trans TPD has been falling over the past month. Using the two picomotor-controlled mirrors in the FSS path, I was only able to increase the signal from 0.54V to 0.66V, which is much less than I was hoping for. I'm still seeing what looks like a pitch misalignment on the RefCav REFL camera, but any further adjustment with the picos doesn't seem to be providing much more improvement on the TPD, so we'll likely need to go into the enclosure for some on-table alignment in the future to improve the alignment further.
WP12044 TW1 raw minute offload
Dave:
As the first part of the file copy, I configured h1daqtw1 to write its raw minute trends to a new empty directory, freezing the past 6 months of data in a renamed minute_raw_1408206258.
I temporarily reconfigured h1daqnds1 to serve the past 6 months of minute trends from this directory. The nds1 daqd process was restarted at 09:56 PDT with coordination with the control room.
WP12049 h1calcs model change
Louis, Joe B, Jeff, Erik, Dave:
A new h1calcs model was installed at 08:44 PDT. No DAQ restart was required.
Picket Fence
Erik,
Was restarted, remote station switch. Please see Erik's alog for details.
This morning, I manually ran through the usual magnetic injection suite (21 total injections across all stations) that's run before Tuesday maintenance during normal observing times to verify things were working. The only hiccup I encountered was that none of the injections at EX seemed to run; the amplifiers turned on correctly, the correct filter modules were applied, and Guardian showed no errors, but the magnetometers gave no response when the injection was supposed to start and I saw no signal in the appropriate _EXCMON channels. After conversing with Dave and Erik and seeing there was no problem starting a manual excitation, they suggested that the PEM_MAG_INJ Guardian likely needed to be restarted to re-establish connection with the frontends at EX since some of them were restarted in June. After restarting the node, I ran through the suite again and there were no issues.
The last successful test ran from 1408203575 to 1408204731 (about 22 minutes), and I've left the Guardian in WAITING.
Jim, Mitchell
Yesterday Jim walked me through adding fluid to the corner station Hepi Pump station. The fluid level was getting close to tripping.
EY running at 8-1/4, trip level is 8-1/8
EX running at 7-3/16, trip level is 7
Corner running at 5-1/2, trip level is now 5-5/16
Other than adding fluid all stations are running smoothly with no new leaks.

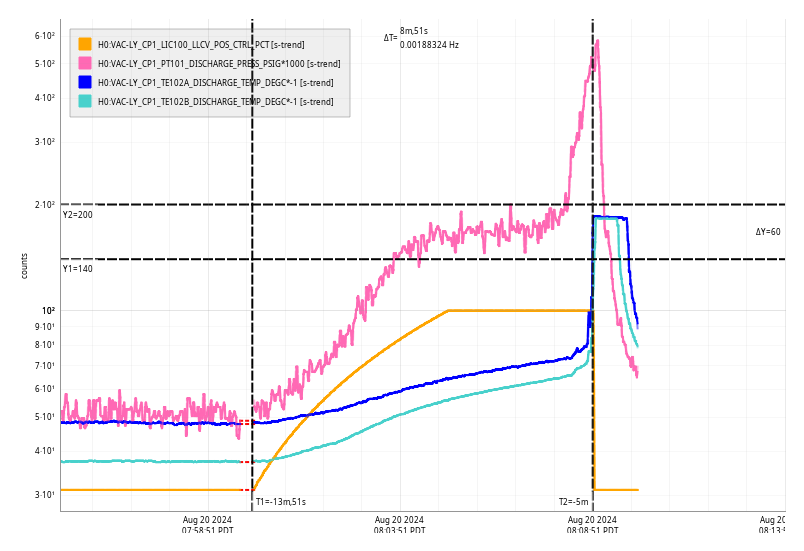

Tue Aug 20 08:08:51 2024 INFO: Fill completed in 8min 48secs
Jordan confirmed a good fill curbside.
The Picket Fence display on Nuc5 was updated and restarted. There were some minor code changes. The only significant change was a switch from HWUD station back to HLID.
TITLE: 08/20 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Corrective Maintenance
CURRENT ENVIRONMENT:
SEI_ENV state: MAINTENANCE
Wind: 3mph Gusts, 1mph 5min avg
Primary useism: 0.01 μm/s
Secondary useism: 0.07 μm/s
QUICK SUMMARY: Pumpdown of corner volume continues. Some light maintenance activities planned for the day as well.
Workstations were updated and rebooted. This was an OS packages updated. Conda packages were not updated.

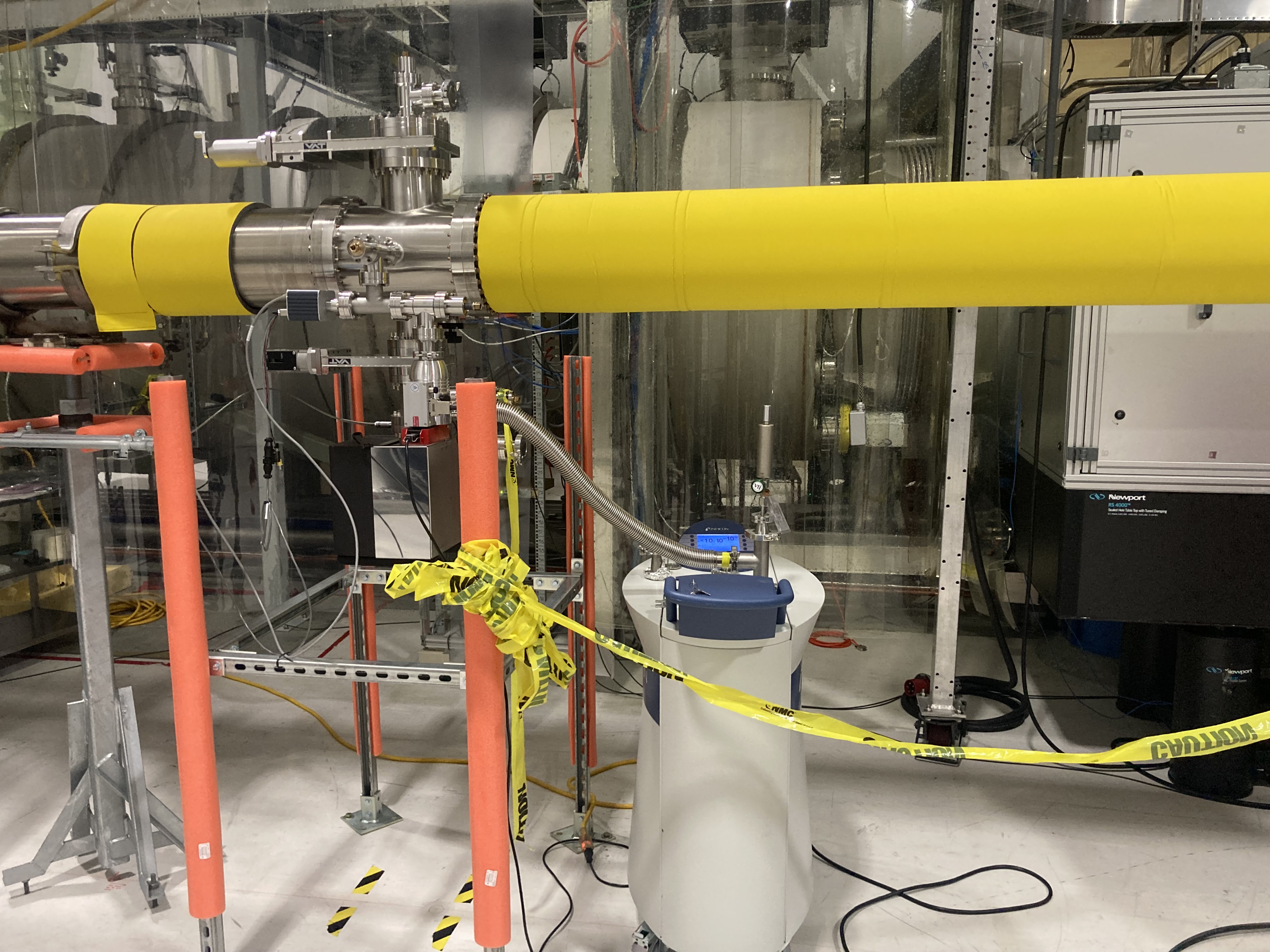

Jordan V., Gerardo M., Travis S., Janos Cs. The PT-154 MKS wide range gauge was replaced due to failure, on the small FCT section between HAM7 and BSC3. Its small volume is being pumped down. As the pressure of that FCT section between GVs FCV-1 and FCV-2 is supposedly around 1-2E-8 Torr, it will be pumped overnight. Now it is at 6.1E-8 Torr. Tomorrow it will be valved in to the main volume. After this, this small FCT section will be valved together with HAM7 and the relay tube (FCV-1 to be opened). Leak check was also done, and no leak bigger than 1E-10 Torr was detected.
Corner RGA Scans
RGA Model: Pfeiffer Prisma Plus
EM Voltage: 1200V
Dwell Time: 500ms, 0-100 AMU
Valve States: GV5 & GV7 closed, RV1 closed, FC2 & FC3 closed (Relay Tube & FC Tube valved out of corner)
Pumping: 4x 2500 l/s Ion Pumps, 1x 500 l/s ion pump (HAM6), 3x 2000 l/s Turbo pumps
RGA Volume had been pumped with 80 l/s turbo & aux cart throughout duration of vent, but these were not valved in to RGA volume during scan collection, RGA filament on for ~1 week before scans collected
Corner Pressure at time of scans: 1.15E-7 Torr (PT120B)
Raw data files will be collected at T2400297
Last attachment is a comparison to the March pumpdown, which had GV5 and GV2 closed, 4x 2500 l/s IPs, 1x 500 l/s IP, 2x 2000 l/s TPs, March scan collected after ~12 days of pumping
August pumpdown started 8/6/24, and turbopumps were turned on on 8/7/24, corner has been pumping for 13 days, GV1 & 2 opened on 8/12/24
