model restarts logged for Tue 18/Mar/2014
2014_03_18 11:27 h1susetmx
2014_03_18 11:53 h1susetmx
2014_03_18 12:03 h1susitmx
2014_03_18 12:32 h1susitmy
2014_03_18 12:51 h1susetmx
2014_03_18 12:52 h1susitmx
2014_03_18 12:55 h1susitmy
2014_03_18 13:01 h1susbs
2014_03_18 13:05 h1suspr3
2014_03_18 13:07 h1sussr3
2014_03_18 13:08 h1susetmy
2014_03_18 13:12 h1dc0
2014_03_18 13:14 h1broadcast0
2014_03_18 13:14 h1fw0
2014_03_18 13:14 h1fw1
2014_03_18 13:14 h1nds0
2014_03_18 13:14 h1nds1
2014_03_18 13:21 h1broadcast0
2014_03_18 13:27 h1broadcast0
2014_03_18 16:22 h1iopsush2a
2014_03_18 16:22 h1susprm
2014_03_18 16:24 h1suspr3
2014_03_18 16:25 h1susmc1
2014_03_18 16:27 h1susmc3

All restarts expected. h1broadcaster multiple restarts due to memory issues.

Large number of restarts due to Tuesday Maintenance Work

One fan has been secured and there is only one fan running now at X end.

I turned off three gowning rooms at ~10:40 am (2 in the VEA, 1 at the entrance)

Ski turned off one of the two HVAC fans at 10:57.

The TMS lab is still operating - I will ask Corey/Keita about this.

For the first time since the injection path rework on friday, we have the arm cavity locking reliably.  It seems like our difficulties locking for the last several days really were due to seismic motion, not some probelm we created while reowrking the path.  I breifly has YAWWFS working tonight, and saw transmission up to 1000 counts with the cavity locked stably.

The IMC is also now locking stably, although I can't do the handoff.  Since we've had so many problems since our maintence today, I'm not going to try to chase down why the handoff doesn't work until some of these other problems are fixed.

Leaving the arm cavity locking, no WFS on.

The links to filter modules from the quad drive align screens don't work, except for M0.  The M0 links are (for example) H1SUSITMX_M0_DRIVEALIGN_L2L.adl while the lower stages link to H1SUS-ITMX_L1_DRIVEALIGN_L2L.adl

The H1SUSITMX screens exist in /ligo/rtcds/lho.h1/medm/h1susitmx, the H1SUS-ITMX ones don't.

I'm assuming that this worked in the past, since Keita and Arnaud have been loading filters in these filter banks.

For some reason (maybe related to the CDS boogie man???) the supervised guardian nodes (ie. the nodes running under the guardian supervision infrastructure on h1guardian0) are unable to talk to any of the h1ecatx1 TwinCat IOC channels.

Sheila first noticed this when guard:ALS_XARM was not able to connect to the H1:ALS-X_LOCK_ERROR_STATUS channel.  The truly weird thing, though, is that all other channel access methods can access the h1ecatx1 channels just fine.  We can caget channels from the command line and from ezca in python.  We can do this on operator workstations and even from the terminal on h1guardian0.  It's only the supervised guardian nodes that can't connect to the channels.

I tried reloading the code, restarting the guardian nodes, nothing helped.  The same problem regardless of which node was used.  Note:

• this was all working fine earlier today, before the massive crasiness started this afternoon.
• the nodes seem to be able to talk to all other channels just fine.
• the guardian nodes can talk to the other Beckhoff IOCs (h1ecaty1, h1ecatc1) without any problem.

I'm at a loss.

There's clearly something different about the environment inside the guardian supervision infrastructure that makes this kind of failure even possible, although I honestly have no idea what the issue could be.

I'm going to punt on trying to spend any more time diagnosing the problem, since I'm just going to chalk it up to the other weirdness.  Hopefully things will fix themselves tomorrow.

some of the digital video cameras used to have names, that appeared in on the links in the H1VIC_DIGITAL_OVERVIEW.adl screen.

The names disappeared sometime this afternoon, maybe related to the deleted files?

J. Kissel, S. Dwyer, D. Sigg, J. Rollins, A. Pele, H. Radkins, D. Gustafson, F. Clara, C. Reed, J. Batch, D. Barker

So, maintenance day was awesome. In summary, we had two problems that took us 4 hours to identify:
(1) The h1sush2a IOP model's DAC enable bit had gone bad after Sheila's restart of the h1suspr3 model. This resulted in the mode cleaner misalignment, because alignment offsets were not getting out to the SUS. This has happened several times before, see for example LHO aLOGs 10375, or 8964.
(2) Some of the /opt/rtcds/lho/h1/ directory structure has disappeared for an as yet unknown reason. This resulted in the mode cleaner blowing up the FSS every time it tried to LOCK.

The story, in chronological order for the record:

- Kiwamu and I flip HXTS signs, store new safe snapshots, and leave with the IMC locked. (see LHO aLOG 10837)
- Sheila installs optical lever BLRMS into PR3 by restarting the h1suspr3 front end code, which is on h1sush2a computer. (see LHO aLOG 10837)
- Restarting the SUS front end model trips the HAM2-ISI watchdogs (but NOT HPI), because the ISI loses communication with the SUS.
- Found the IMC TRANS and REFL cameras appearing grayed out, appearing to be broken / not reporting real data
- Sent Fil out to check if the camera's analog path has been screwed up some how. Confirms OK.
- Fil launched Cyrus and had him reboot the camera server processes on the relevant cameras and there's no affect.
- Sheila, Arnaud, Hugh, and Daniel launch on the "has the alignment changed since we last had a good lock, and to what SEI trips does the change correspond" DataViewer trending game. Red herrings everywhere, Daniel finally identifies that the IMC is just misaligned. The cameras look bad because of some automatic exposure or gain or aperture were searching for light and found none.
- Jim restarts the DAQ (see LHO aLOG 10832)
- Jamie identifies the h1sush2a IOP model's DAC enable bit had gone bad, because of his previous experience with the problem. We all look at the h1sush2a's IOP CDS bit word (one bit in the middle of a bit word, that is un-intuitively related to MC1 and MC3), and find, sure enough, the bit is red.
- Talk to Jim who says the way to solve the problem is to kill all user front-end processes, and restart the IOP process, and restart all the user processes.
- Performing Jim's FIXIT works, and we can drive out of MC1 and MC3 (and the rest on h1sush2a, PRM and PR3) again.
- We used the guardian to bring each SUS back into the aligned state, and turned on the IMC guardian.
- The IMC aligns, but is constantly flashing, breaking the FSS lock constantly during attempts to lock.
- After bringing up all the front end processes, while the DAC enable problems disappeared, we were left with IPC errors in the CDS bit words for 3 of he 4 SUS.
- Looking to clear these errors because they're a suspect, we tried opening the GDS TP screens to hit the "Diag Reset" button, only to discover that MEDM throws and error when SUS GDS_TP screens are called, complaining they don't exist.
- Looking into the /opt/rtcds/lho/h1/medm/ folder, we find that *all* SUS, and several more automatically generated MEDM directories have disappeared.
- Launched Jim and Dave to investigate, continuing to explore why the IMC won't lock (see LHO aLOG 10850)
- Sheila and I toggle switches, BURT restore h1lscepics, h1ascimcepics, h1ecatc1plc2 to 2014-03-18 14:00 PT with no affect
- Sheila checks analog IMC error signal (demod phase) and cabling at ISC racks. Everything looks great.
- Jim, beginning to replace all of the missing MEDM files, begins systematically make-installing all missing models.
- When he gets to h1susmc2 BLAMO -- the IMC locks right up.
- Dick titles the aLOG.


As I said, still unclear why all of these files when missing, but some ~200 files were apparently *non-MEDM* files, and *some* of those files were essential for the IMC to lock. YAAAAAAAY MAINTENANCE DAY YAAAAAAAAY.

The investigation continues on why we lost files from /opt/rtcds continues, in the mean time, Jim has reinstalled all models with the missing files, and things appear functional, but we've test little else than the IMC.

A massive number of files were deleted from /opt/rtcds under mysterious circumstances this afternoon between 1:20 and 4:20 PM PDT.  We checked for intruders, and inquired about creative or rogue scripts, but found nothing.  The largest number of files were deleted from /opt/rtcds/lho/h1/medm.

To restore the medm files, make install was performed on the following models:

h1iopsusb123, h1susitmy, h1susbs, h1susitmx, h1susmc1, h1susmc3, h1susprm, h1suspr3, h1iopsush2b, h1susim, h1susmc2, h1suspr2, h1sussr2, h1sussr3, h1sussrm, h1susomc,
h1iopsusauxb123, h1susauxb123, h1iopsusauxh2, h1iopsusauxh34, h1iopsusauxh56, h1susauxh56, h1iopseib1, h1iopseib2, h1iopseib3, h1hpiitmx, h1iopseih16, h1hpiham6
h1isiham6, h1hpiham3, h1isiham2, h1isiham3, h1iopseih45, h1hpiham4, h1hpiham5, h1isiham5, h1ioppemmy, h1pemmy, h1ioppsl0, h1pslfss, h1pslpmc, h1psldbb,
h1iopoaf0, h1peml0, h1tcscs, h1odcmaster, h1omc, h1iopasc0, h1ascimc, h1sushtts, h1ioppemmx, h1pemmx, h1iopsusey, h1iopsusex, h1iopseiey, h1hpietmy, h1isietmy,
h1isietmx, h1iopiscey, h1pemey, h1iscex, h1odcy, h1odcx, h1iopsusauxey, h1iopsusauxex, h1susauxex.

Additionally, h1susetmx required a make, make install to be performed because the h1susetmxepics directory was missing from the build, even though it had been built shortly after noon today.

The SITEMAP.adl file or symbolic link was missing from medm, so a symbolic link was created to the SITEMAP.adl file in userapps.  Links to other adl files were missing as well.

We do have a complete list of missing files and will evaluate which files should be restored from backup tapes tomorrow.

I was logged in to see why the system wasn't running, and the machine crashed.  It restarted and I burt restored all three pls (h1ecatx1plc, 2, and 3) to 14:00 today.

We are currently investigating a loss of files from the h1boot /opt/rtcds file system. It appears to have happened between 1pm and 4:20pm (when it was discovered). We are restoring the files both from tape backup and by reinstalling from model RCG install scripts. We are investigating the cause of the loss.

(Corey, Jax, Keita)

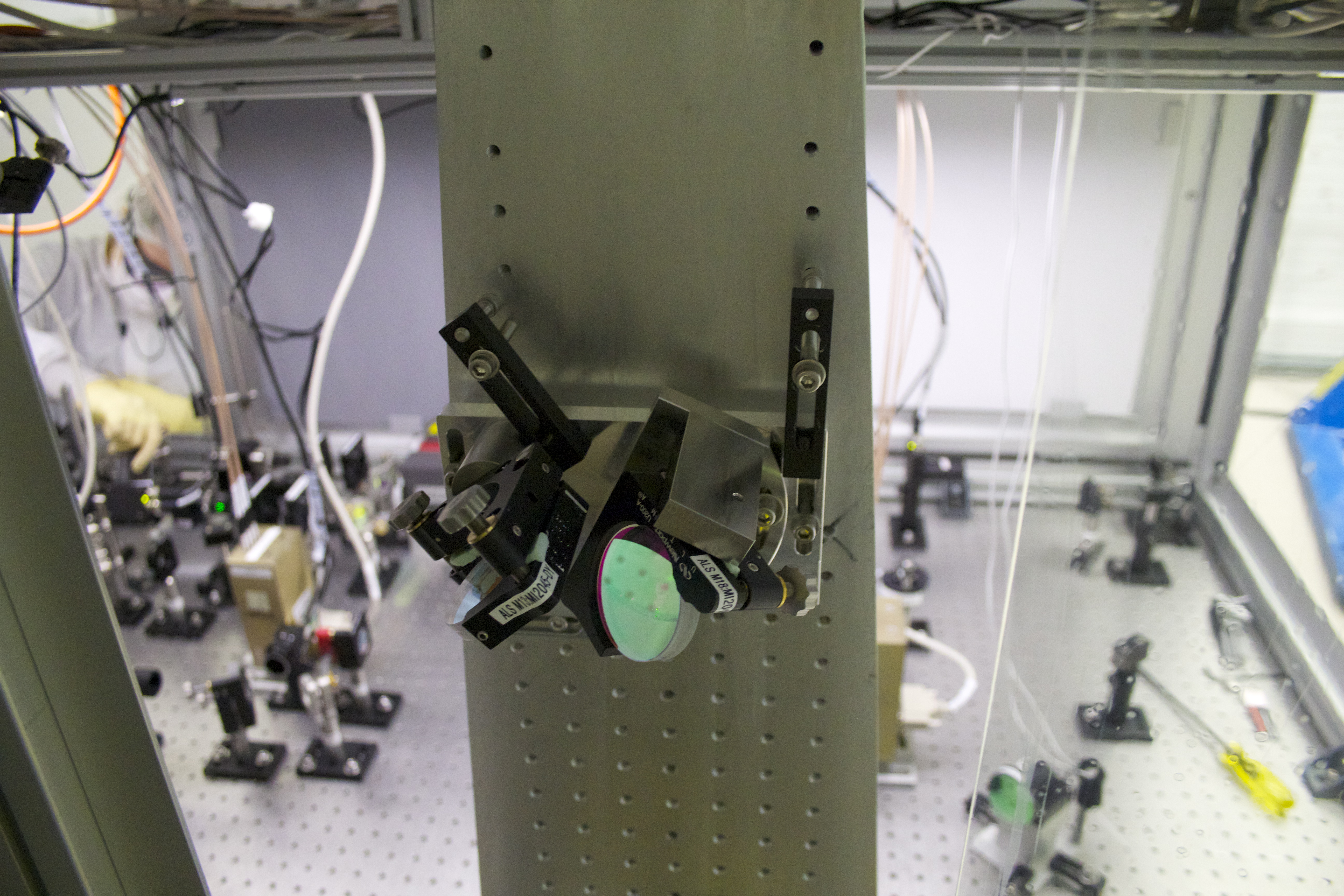

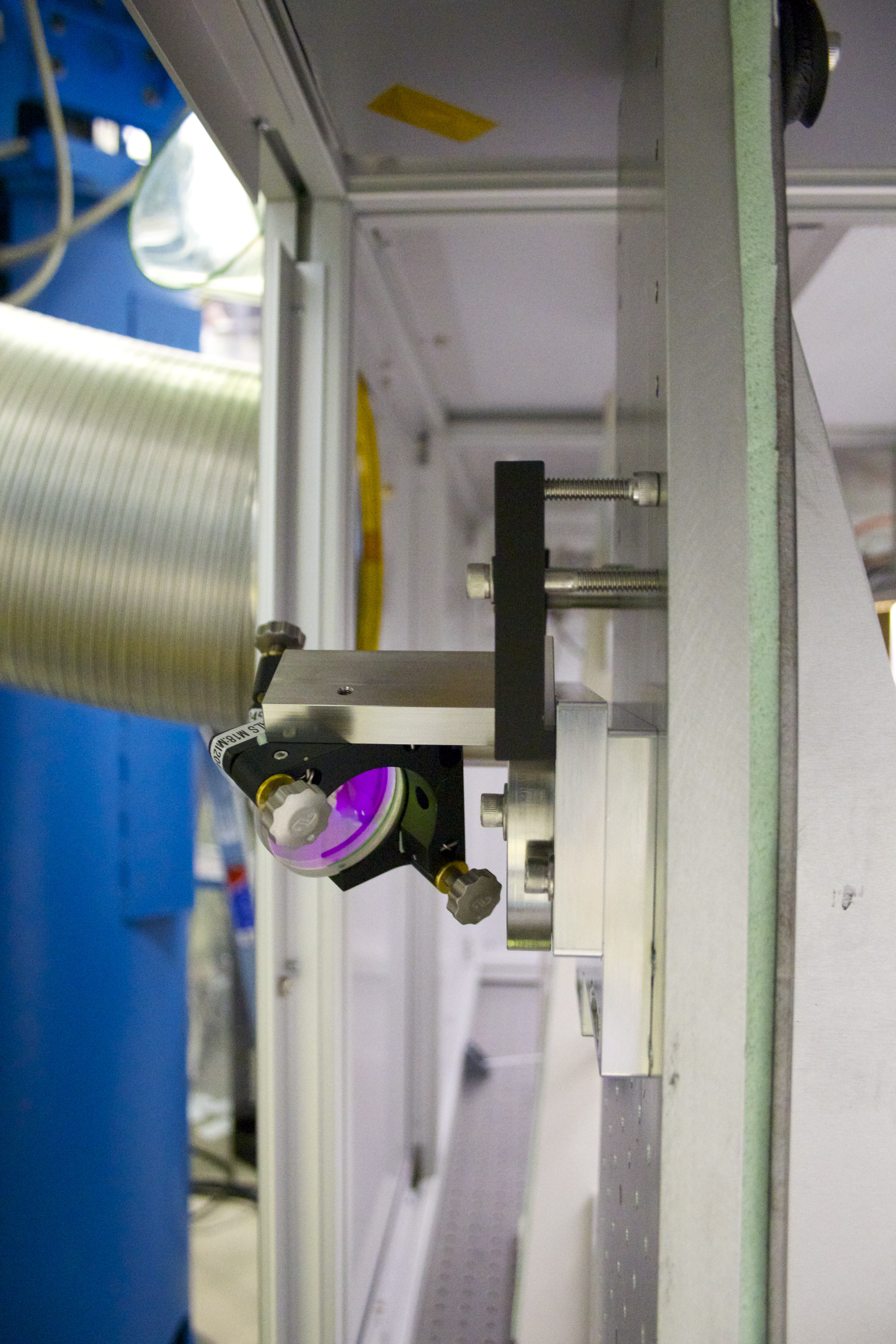

Continue with getting a GREEN beam onto the TMS table.  We had to make more position changes for the GREEN Top Periscope Mirrors (this required using longer screws for the top dog clamps [see photo]).  Then most of the time was spent pointing the beam onto TMS.  Once on the TMS, the beam was then pointed onto the QPDs first with a TMS Periscope mirror, but most of it was via ISCTEY mirrors by Jax.  We went through several iterations of tweaking to stay centered on the mirrors and to also have a beam nice & centered on the ISCTEY periscope mirrors (this involved some nap time in the chamber while Jax did all the work outside [see photo]).

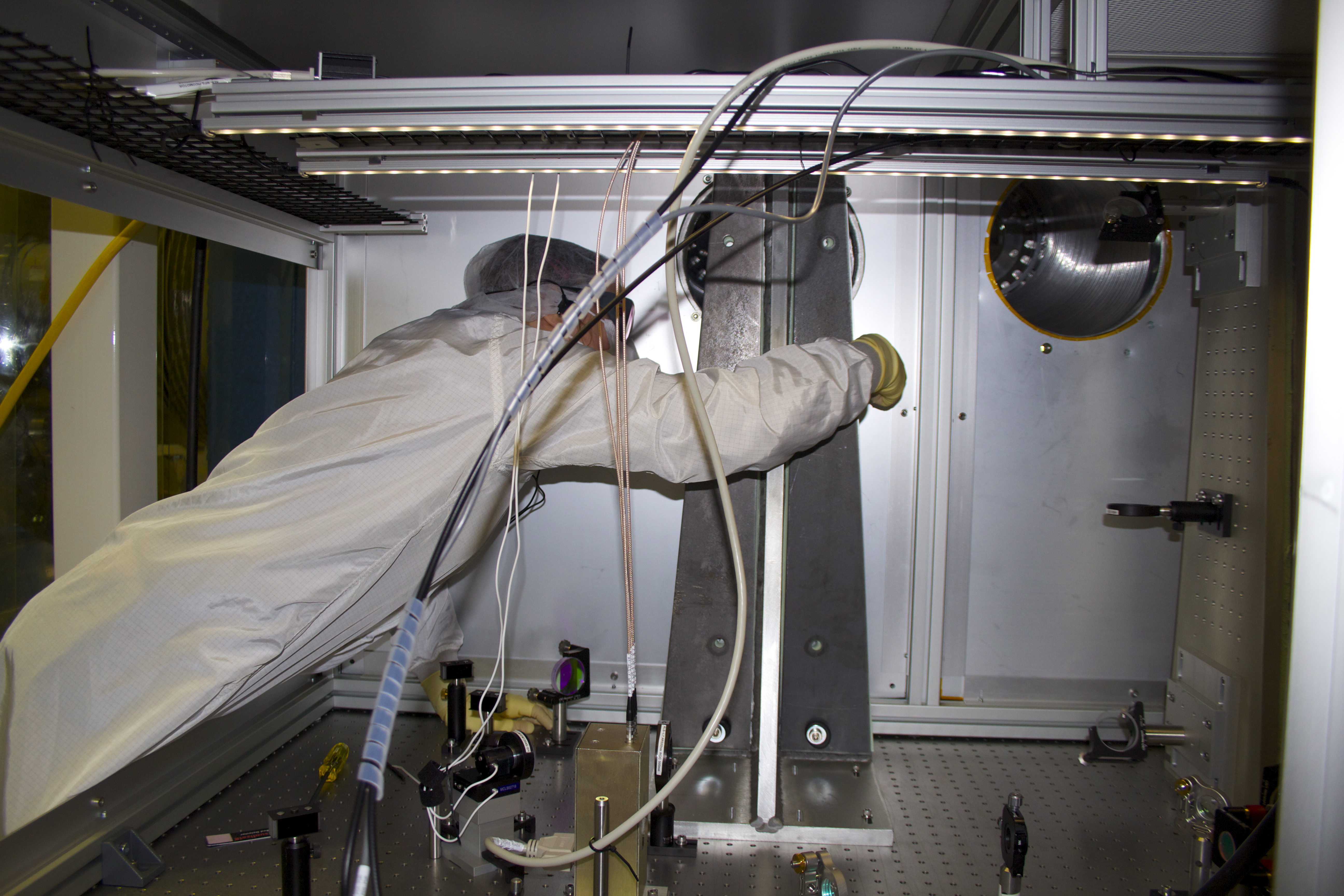

Through this alignment work, we could see the retro-reflected beam off the ETM on the TMS Telescope Mirrors.  On the Secondary mirror the spot looks to be low and little off in yaw.  To fix the pitch, we will need to pitch the TMS "back" via the slider weights under the table.

Additionally, during this alignment work, the QPD servo was engaged & is operational!

We aligned the ALSY green beam to the TMSY, and confirmed that the QPD servo works.

Tomorrow we'll rebalance the TMSY to get the ALS beam retro-reflected off of the ETMY.

Filiberto & Jeff

  The Apollo crew spotted a frayed nylon tag line in the cable tray over HAM5 (good catch Apollo). This tag line has been removed from over the HAM5 chamber, and will be replaced before any more cable pulling is done in this area.

This afternoon, while adjusting the AOSEMs on the H1-SR3 Intermediate Mass, the UL Magnet/Dumbbell assembly was knocked off by making contact with the ceramic boards holding the PD/LED. We will reattach a new Magnet/Dumbbell assembly tomorrow.

Mitchell,
The two monolithic plates have been assembled and the 0-1 blade spring posts have been added. A cleaning in the granite table clean room has been set up. Apollo will be working with C&B tomorrow to wrap and deliver the optical tables which are next up for a helicoil makeover.

Sheila, Jeff, Jim

We have added OpLev BLRMS to the suspension models for suspensions that have opLevs, this change is described in ECR E1400155

This involved changes to h1susetmx h1susitmx (since these are not using the quad master right now) QUAD_MASTER BSFM_MASTER and HLTS_MASTER

There is also a new medm screen in sus/common/medm/SUS_CUST_OPLEV_BLRMS

I also added a link to this screen in the op Lev screens :SUS_CUST_QUAD_L3_OPLEV.adl SUS_CUST_HLTS_M3_OPLEV.adl and SUS_CUST_BSFM_M3_OPLEV.adl

All of these changes are now committed to the svn.

The models are running, and Jim has restarted the DAQ so the new channels are avaiable.  We also checked using dtt and a spectrum that the values diplayed are accurate.

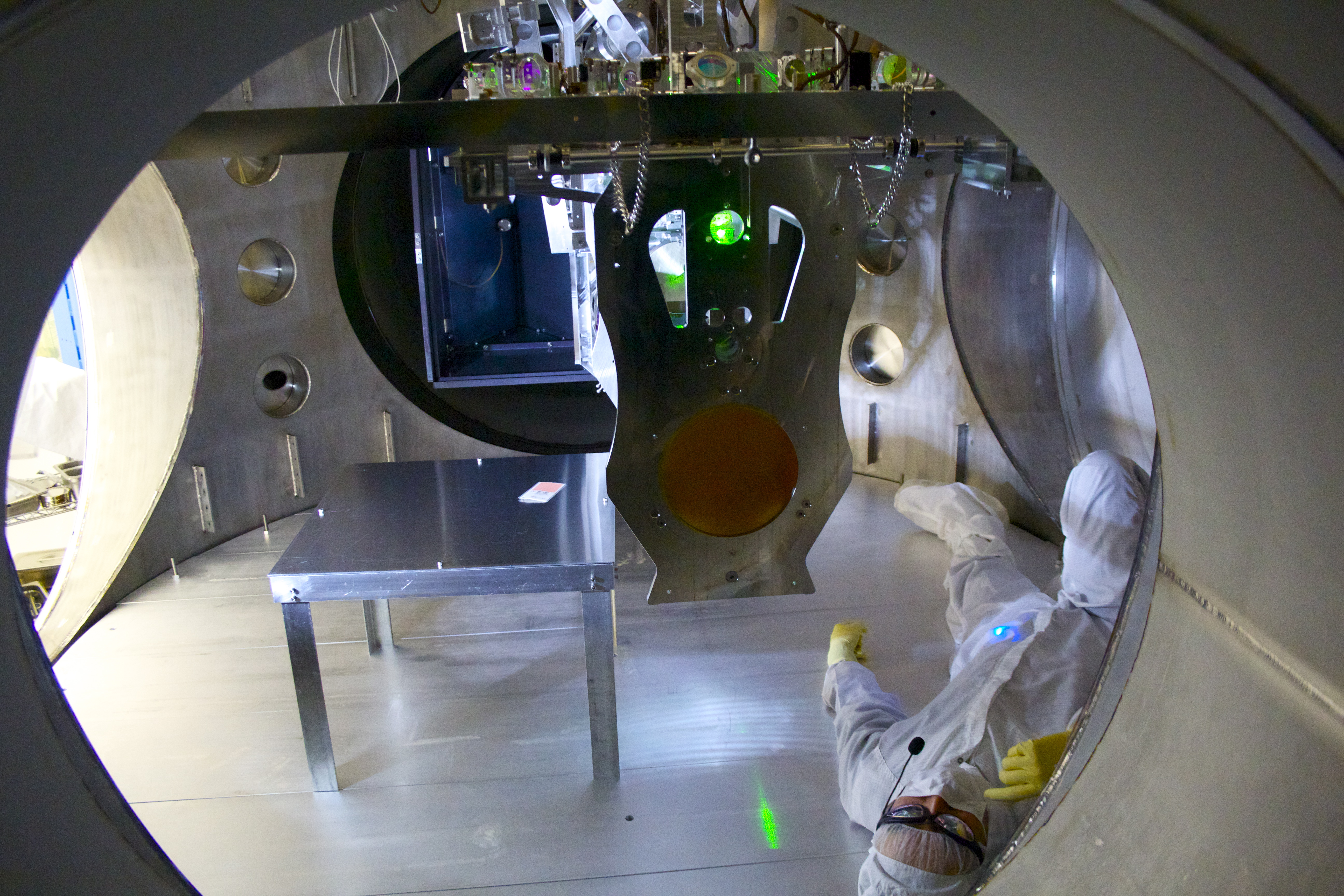

TMS Work (Corey, Jax, Keita, Margot)

Apollo roughly positioned the ISCT-EY Table (via floor markings).

Chamber Floor was first cleaned upon entry for work (did not do an exit floor wipe).  Margot then entered the chamber to remove First Contact from inside surface of pair of TMS Viewports (then went out and removed First Contact off outer surfaces).  She mentioned "finger prints" on the outside surface of one of the TMS viewports; Margot will document in the DCC.

By eye, we checked position of the table, we ended up pushing the table about 3" west.  We then attached ducting between the chamber and the table.  Then we went in to check our line of sight from the TMS Table to the Table Periscope.  This required us to move the GREEN periscope an inch east, and also the top periscope mirror down 4-6".  At this point the laser wasn't quite making it down the ductThis is about where we ended things last evening.

Dust Monitor Check Of Purge Air For BSC10 (Corey, John, Keita)

John whether there was dust coming from the purge air.  So I, with handheld Dust Monitor in hand, crawled under the ACB, and took a few measurements from the Dust Monitor (which was running continuously).  I took measurements at four spots above the input of the purge air.  At the highest point, I had readings which would hover between 1500-2500 counts of 0.5um particles.  At the lowest point (with sensor of Dust Monitor right at the input), the 0.5um counts could be kept at basically 0-counts (with flashes of a few hundred possibly.  So, it would seem the purge air is relatively clean.
