I enabled port monitoring for port 0/42 (sush34) on sw-msr-h1fe, mirroring traffic to port 0/6 for troubleshooting purposes.  It is not known what side effects can occur on the Netgear switches in this configuration.

Built new daqd and nds from tags/advLigoRTS-2.7.1, installed on x1dc0, x1nds1, x1fw1, then restarted the daq system.

I re-racked sw-lvea-aux0 in the EE room today, as specified under WP 4086.  It should be in it's now (hopefully) final location, in RU34 below the patch panel feeding the LVEA.

Here is the current status of the aLIGO SEI work regarding the HAM chambers. Everything in red is a change from last week's status. Everything in green is available.

The PSL was switched to the commissioning mode this morning for approximately one hour for the weekly cleaning. Karen and I entered the PSL enclosure. After the cleaning the PSL was then switched back to the science mode again.

Note: when we followed Robert's instruction to switch it to the commissioning mode the HEPAs in the laser room didn't come up for some reason. We could notice it because the laser room was too quiet. This might be some sort of bug. Toggling the HEPAs off and on on the touch panel eventually made it running.

Beginning measurements of IMC Crossovers.

Not sure why, but I found the IMC locked, but with the top (M1) stage turned OFF, gain sert to zero, with FMs 1 and 2 on. In order to engage M1, I
- turned off FM1 (the boost), turned on inputs and outputs
- used a TRAMP of 20, and ramped to a gain of 1.0 (probably didn't need to go that slow, but I didn't want to blow the lock)
- Turned on the boost filter.

Also found FM9 (CLP300) of M3 LOCK OFF, so I turned that ON.

The LOCK Gains are now [M1,M2,M3] = [+1,+0.2,-300].

Finally, all of the notch filters (FMs 6-10 in M3_ISCINF Bank) were OFF. Turning them on (both the R3 and V3 notches [FMs 6 & 7], the 1st, 2nd, and 3rd harmonic violin mode notches [FMs 8-10] independently) makes the loop unstable, as indicated by the MC2 output at all stages increasing wildly hitting the limiters. We'll have to explore / model that later.

Save the notches, and the factor of 2 difference in M2 and M3 gain, the configuration should be the same as what's at LLO.

Results of ETMX main and reaction chain top mass transfer functions for Phase 2c, after final alignement, are attached below. Most of the measurements are showing good agreement with the model, except for pitch, as on last thursday. The first two modes of the main chain @~0.55Hz and ~1.30Hz appears to be shifted down in frequency (page 5 of first pdf). The second pitch mode of the reaction chain @ ~ 1.33Hz is shifted up, and we can see vertical to pitch as well as transverse to pitch cross couplings from the extra 2Hz and 2.22Hz resonnances (page 5 of the second pdf). After plotting ETMX pitch transfer function against other fiber quads (3rd pdf), it seems like a common feature between quads. The results will be discussed during the sus meeting, but are approved for now since livingston ITMY looks identical.

Plots attached are described below :

1- H1 M0-M0 ETMX phase 2c main chain top mass transfer functions (in red) against "fiber" model (in blue), for the 6 degrees of freedom

2- H1 R0-R0 ETMX phase 2c reaction chain top mass transfer function (in red) against "erm (end reaction mass)" model (in blue), for the 6 degrees of freedom

3-a) Pitch to pitch main chain comparison between model and other fiber quads : L1 ITMX (June 2013, orange), L1 ITMY (Mai 2013, black), H2 ETMY (Mai 2013, pink), H1 ETMX (last week during alignement, cyan) and H1 ETMX (end of last week after alignement, green)

3-b) Pitch to pitch reaction chain comparison between erm model, H1 ETMX (most recent) and H1 ETMY (Mai 2013)

In response to Jeff.K's request I set up the IMC autolocker so that it can automatically lock itself. So far it seems locking without difficulties. The IMC autolocker had been intentionally disabled until this evening for allowing people to run some measurements on the SUS/HEPI/ISIs. Jeff.K is volunteering to remotely run some cross-over measurements which I haven't finished (alog 7369) as a part of the IMC characterization. So Jeff, it is all yours until everybody wakes up !

The autolocker script, which I copied from Chris's original one and temporarily named as rudimentary_autolocker.2013.Aug.12.edition, is running on h1guarian0. It resides in userapps/ioo/h1/scripts/imc which is the usual IMC scripts place.

0800-1000 High dust counts (+3000PCF@.5um) in EY while Apollo works on equipment staging.

0900 Pablo working in H2 enclosure

0910 Karen will be opening LVEA exit doors during cleaning

930 Thomas aligning optical lever to check for B coupling on PR3

1430 Pablo working in H2 enclosure again. All the time. Every day.

1500 H1 enclosure and PSL environmental sensors go slightly wacky. Readings of -4F and 0% humidity in laser room and anteroom. Maggie and Daniel working on Beckoff system.

Nothing really sensitive on this platform at the moment but the system is floating; please be mindful of the blue crossbeams.  We'll do Optical Table positioning tomorrow if IAS is available.

Today we relocated the E-module and the newly assembled clean room skeleton, as well as other extraneous "stuff" @ end y to allow for vinyl flooring installation to proceed tomorrow. We also started removal of FFU's and lights from the clean room located at ham 4 which is approximately 50% complete. Machined some vacuum accessories for Cheryl V.

Transfer functions were runnning over the weekend on HAM2 and HAM3 ISIs (tilt decoupling frequency meausrement).

Measurements are complete. Isolation loops, and HEPI alignment offsets were turned back on.

Found computer completely unresponsive, rebooted.  Had to manually mount /ligo file system.

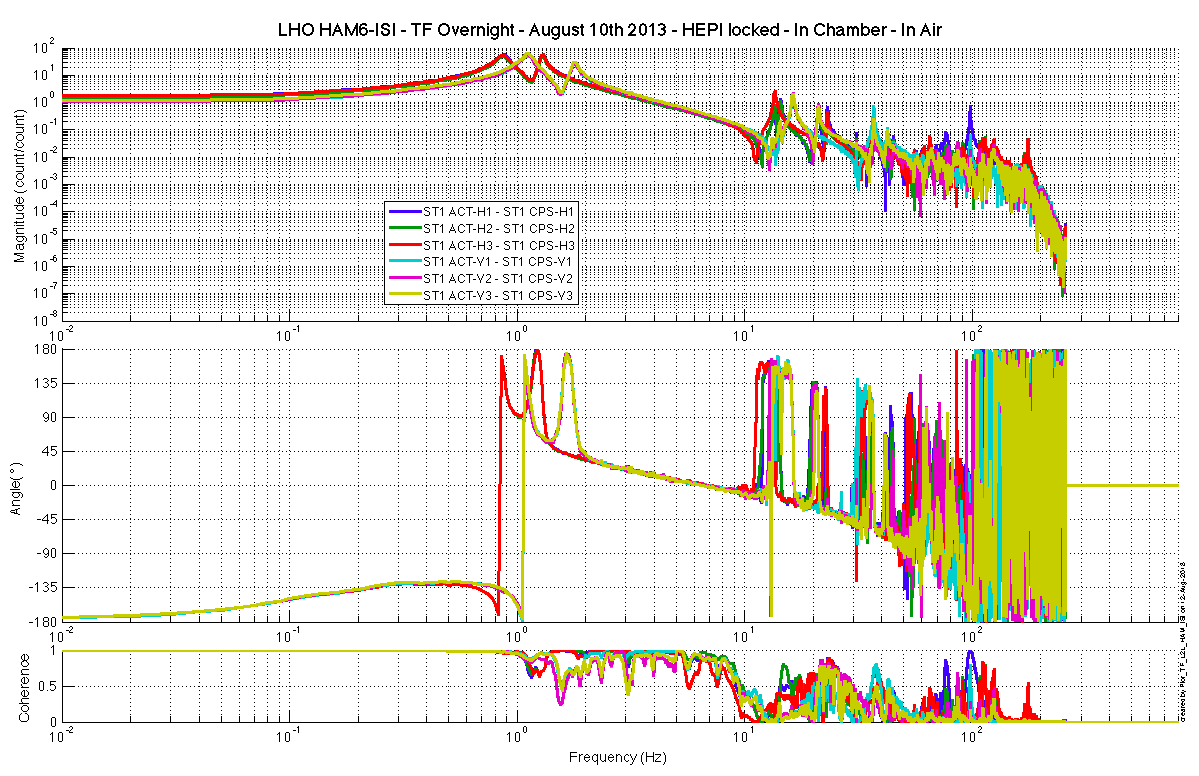

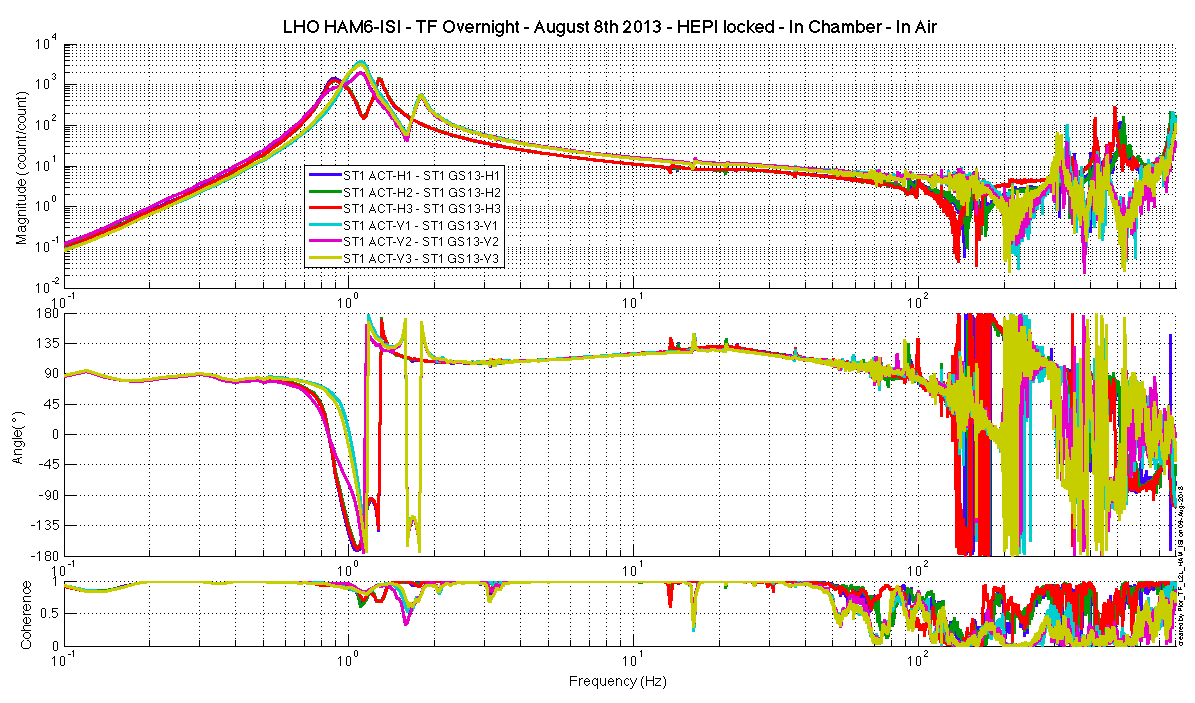

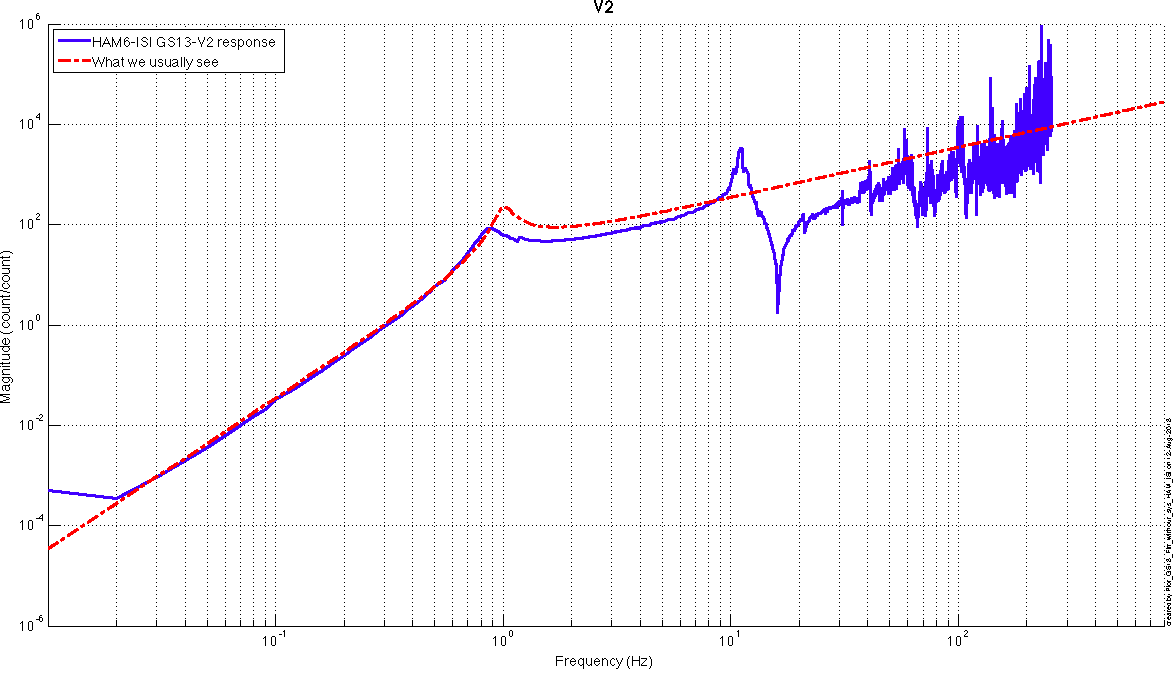

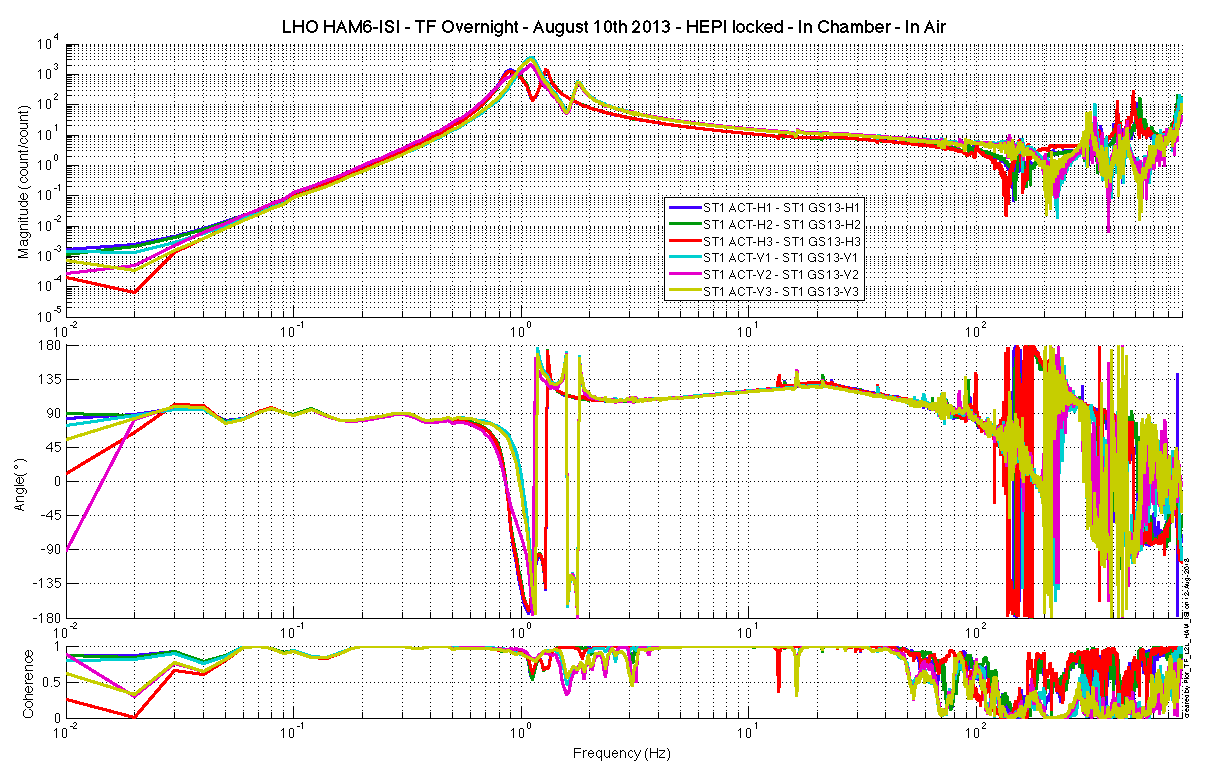

The transfer functions measured recently on HAM6-ISI featured a discrepancy between what was seen by GS13-V2 (purple curve), and what GS13-v1 (cyan) and GS13-V3 (yellow) would see.

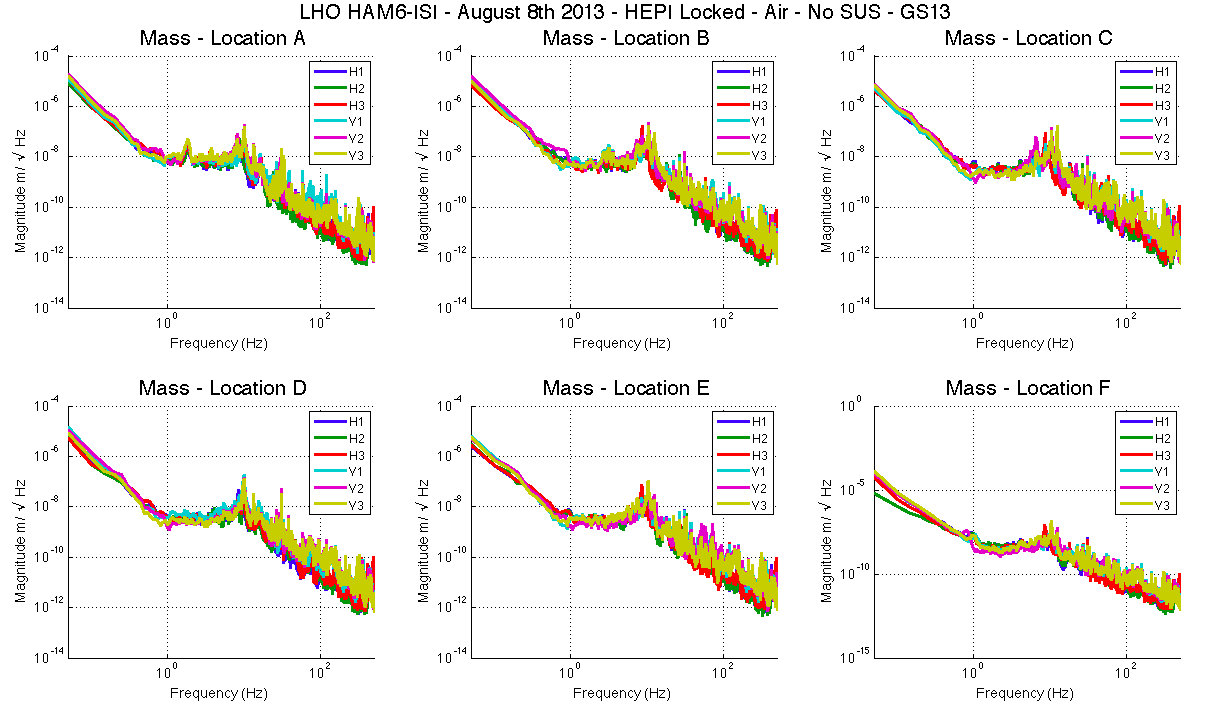

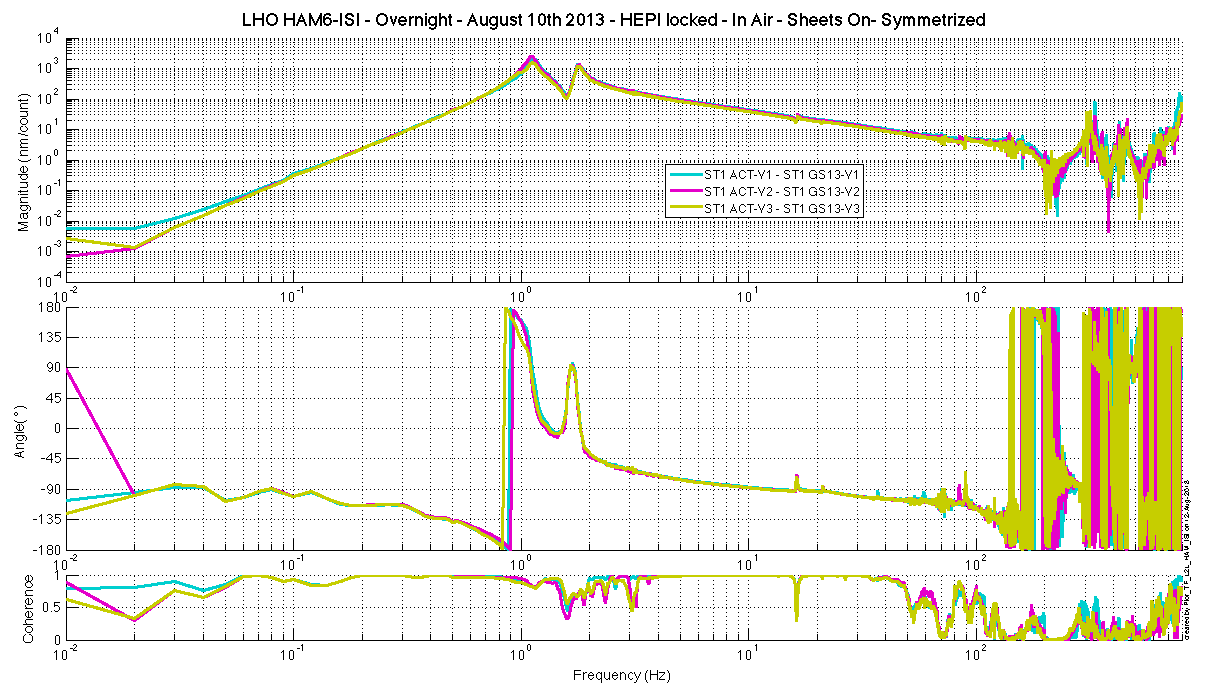

Thinking GS13-V2 could be saturating, we tried taking a new set of measurements over the weekend, with lower actuation. Reducing the actuation did not change the shape of HAM6-ISI TF, as seen on the latest results.

I am on site (briefly) to verify vacuum system is Ok - it is - leaving now (1215 hrs.)

I removed the screws and washers from the peek clamp bracket.  Washers were not reachable, but I was able to push them to a place where they dropped into a temporary foil shield I installed under the top mass.

Keita and I then removed the peek clamp and bracket by lifting it from the bottom and hooking it from the top with a dental pick.

Cable connectors were threaded from the top down, past the blade spring on the -Y side, with the orientation defined in D0901880-v5, while cables were held out of the way on the other side of the "H" slot in D1200469-v1.

Pictures:

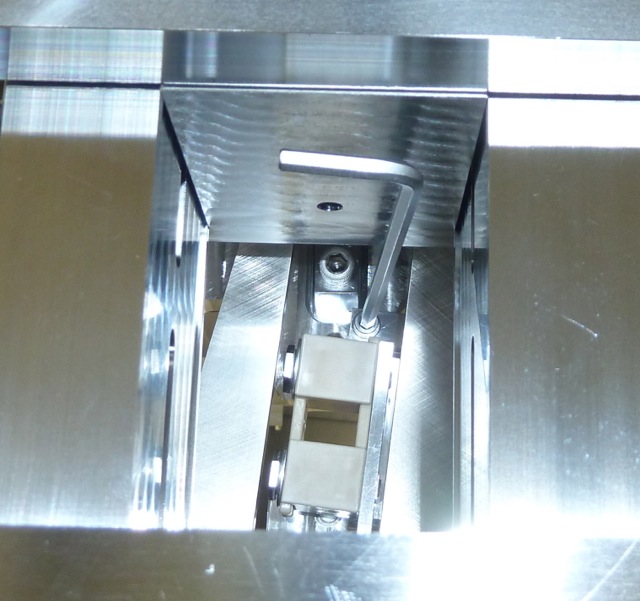

P1030993 - peek clamp and bracket

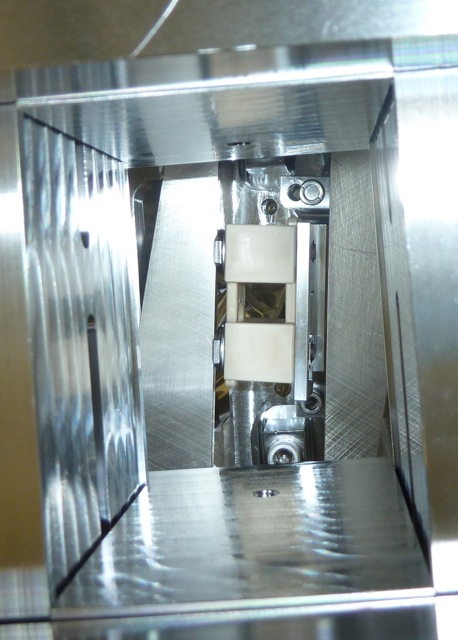

P1030995 - bracket screw removed - loose washer remains

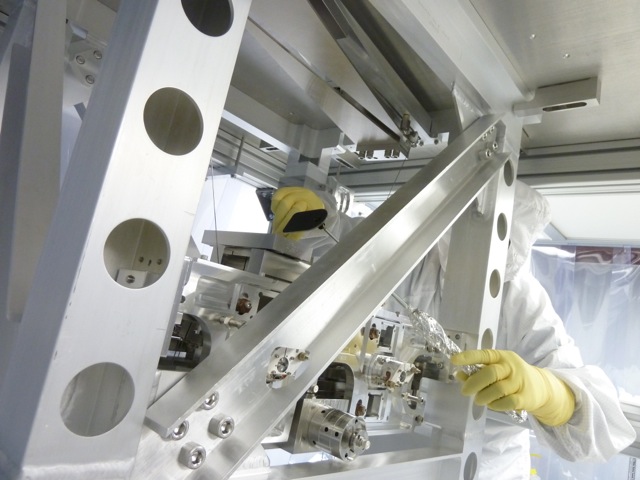

P1030997 - fishing for the peek bracket

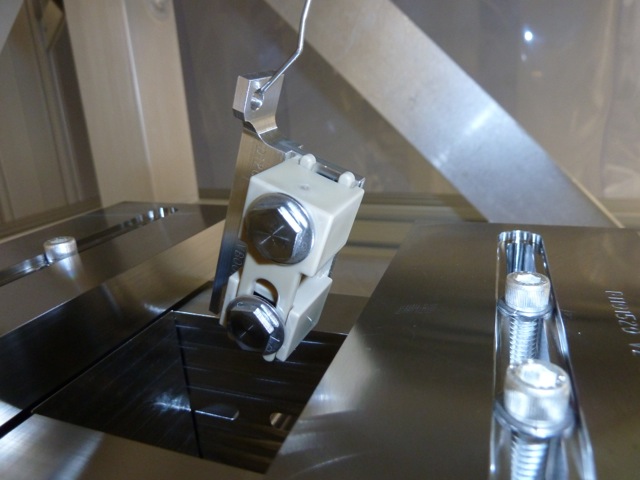

P1030999 - bracket caught

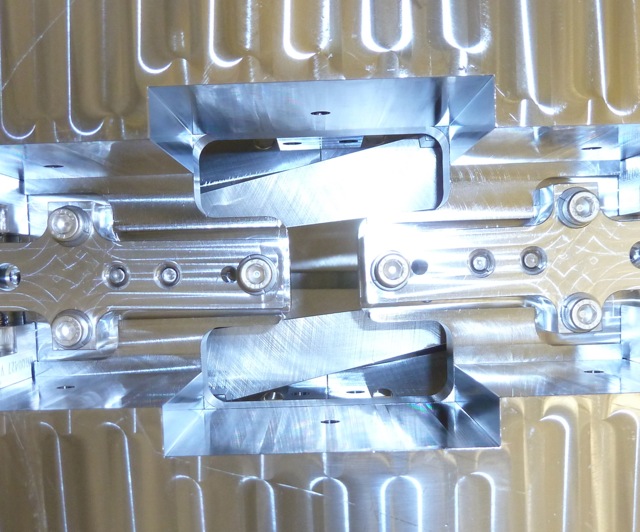

P1050005 - "H" slot as seen from below before threading cables

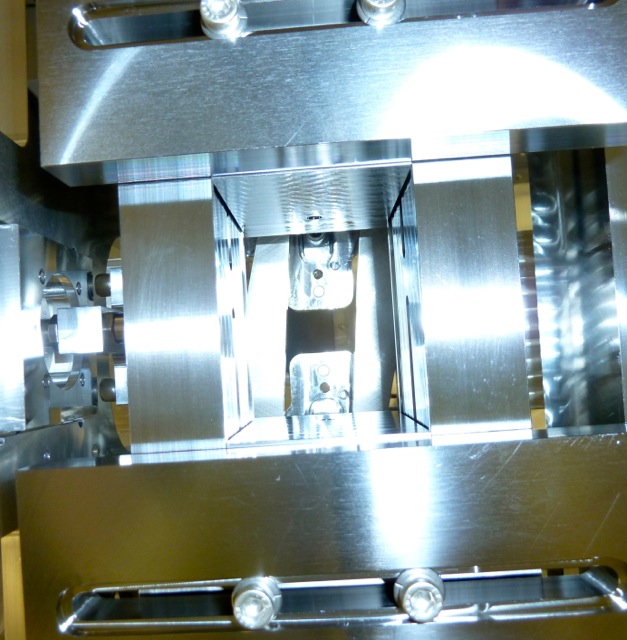

P1050006 - "H" slot as seen from above before threading cables

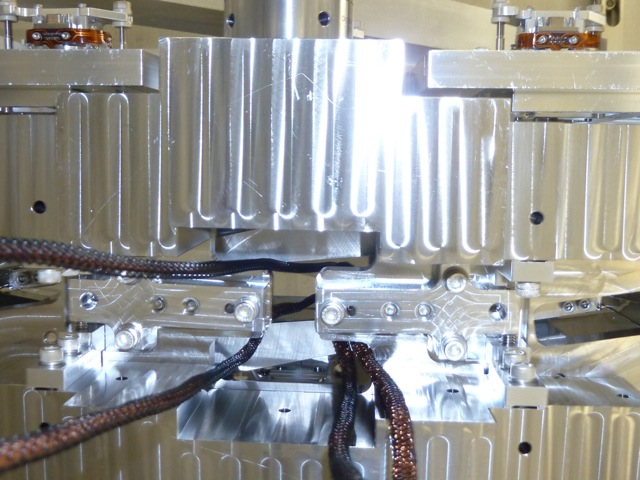

P1050009 - "H" slot as seen from below after threading cables

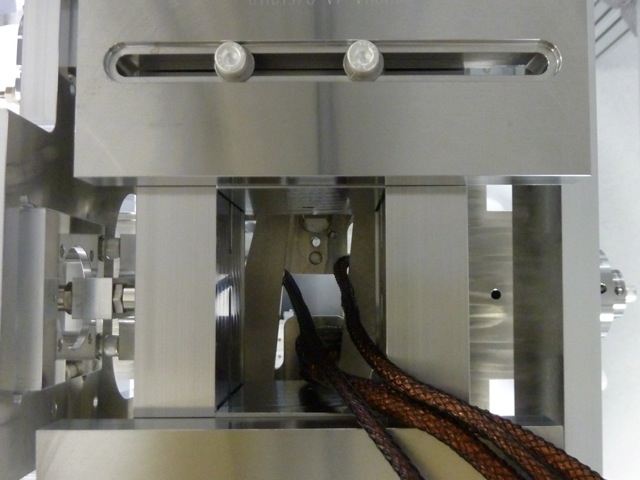

P1050011 - "H" slot as seen from below after threading cables

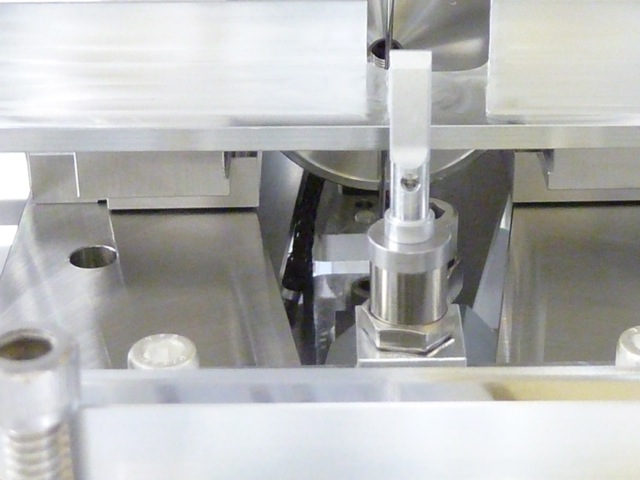

P1050020 - cable connector seen from the side, as it just fits through
                      the "H" slot around the blade spring (-Y side, left in this picture)

(Alexa, Kiwamu)

I have attached the following graphs:

1) The most recent noise budget produced by the ALS HIFOY model

2) Plot of all the contributing sensor noise to the IR noise before applying the CARM control  (which is why we do not see a knee at high frequency when comparing to the noise budget graph)

3) Infrared Noise assuming:

S_IR  = S_sensornoise                                      for f < UGF of CARM feedback

S_IR = UGF/f * S_sensornoise                          for f>UGF of CARM feedback

Thus, we are assuming a 1/f behavior above the UGF, which should overestimate the RMS. This graph includes the current acoustic noise and that with the acoustic noise lowered by a factor of 10 predicted by Robert for the science run.

4) Plot of RMS vs UGF of CARM feedback. This graph indicates if the acousitc noise is lowered by a factor of 10 the UGF of the CARM feedback can be increased while reaminig under the noise limit of 8Hz.

Starting a new round of transfer functions on ETMX over the week end. GPS starting time = 1060127914
