For the 200W laser

There is a broad peak at 4kHz in the ISS rpn plot which appears in the 200W laser's rpn plot as well. For comparison, the last time I took these plots for the 200W laser as 10/30/2012.

I set the damped TFs running last night to check effectiveness of new damping settings. Measurements done when checked at 7:45 am. Plots pending.

^/trunk/QUAD/X1/ETMX/SAGM0/Data/2013-05-30-1053969993_X1SUSETMX_M0_0p01to50Hz_tf.mat

^/trunk/QUAD/X1/ETMX/SAGR0/Data/2013-05-30-1053987452_X1SUSETMX_R0_0p01to50Hz_tf.mat

This is a late alog from yesterday morning. Before the gate valve was open I went out to end y to adjust the transmontane position to see if the 10 uW beam on the refl pd was a gobst beam.  With a better alignment of the Trans mon there were:

8.87 mW green power before the EOM, 1.35mW onto the refl PD and -0.220 volts on the dc output.

[Alexa, Kiwamu]

We are ready for closing the WFS loops.

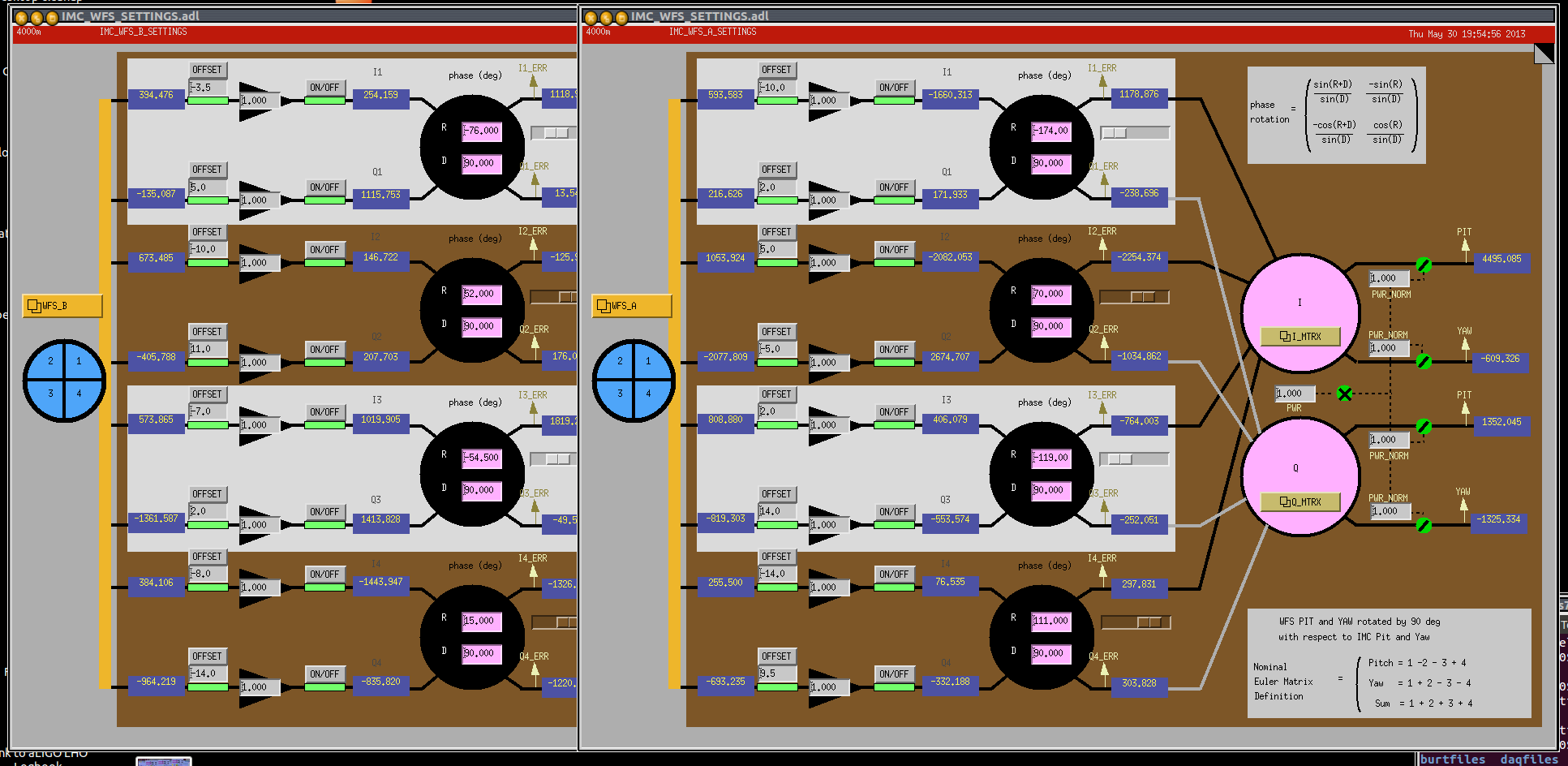

We excited MC3_M1_P at around 3 Hz with an amplitude of 10 counts by AWG. Monitoring the peak in DTT we minimized a signal leaked in the Q-phase. The WFS-A looked perfect and we didn't re-adjust it at all. As for WFS-B we adjusted segment 2 (whose cable was replaced) and segment 3. Plus, later on we flipped the sign of all the segments by further rotating the demod phases by 180 degs in order to have the same signal sign as that of WFS-A.

Attached are plots of dust counts requested from 5 PM May 27 to 5 PM May 28.

Attached are plots of dust counts requested from 5 PM May 28 to 5 PM May 29.

Attached are plots of dust counts requested from 5 PM May 29 to 5 PM May 30.

Modified detailed CDS overview screen to include h1asc model.  Added h1asc .par and .ini files to the data concentrator master file, restarted the data concentrator.  Restored the symbolic link of the SITEMAP.adl file to the proper place in userapps directory.

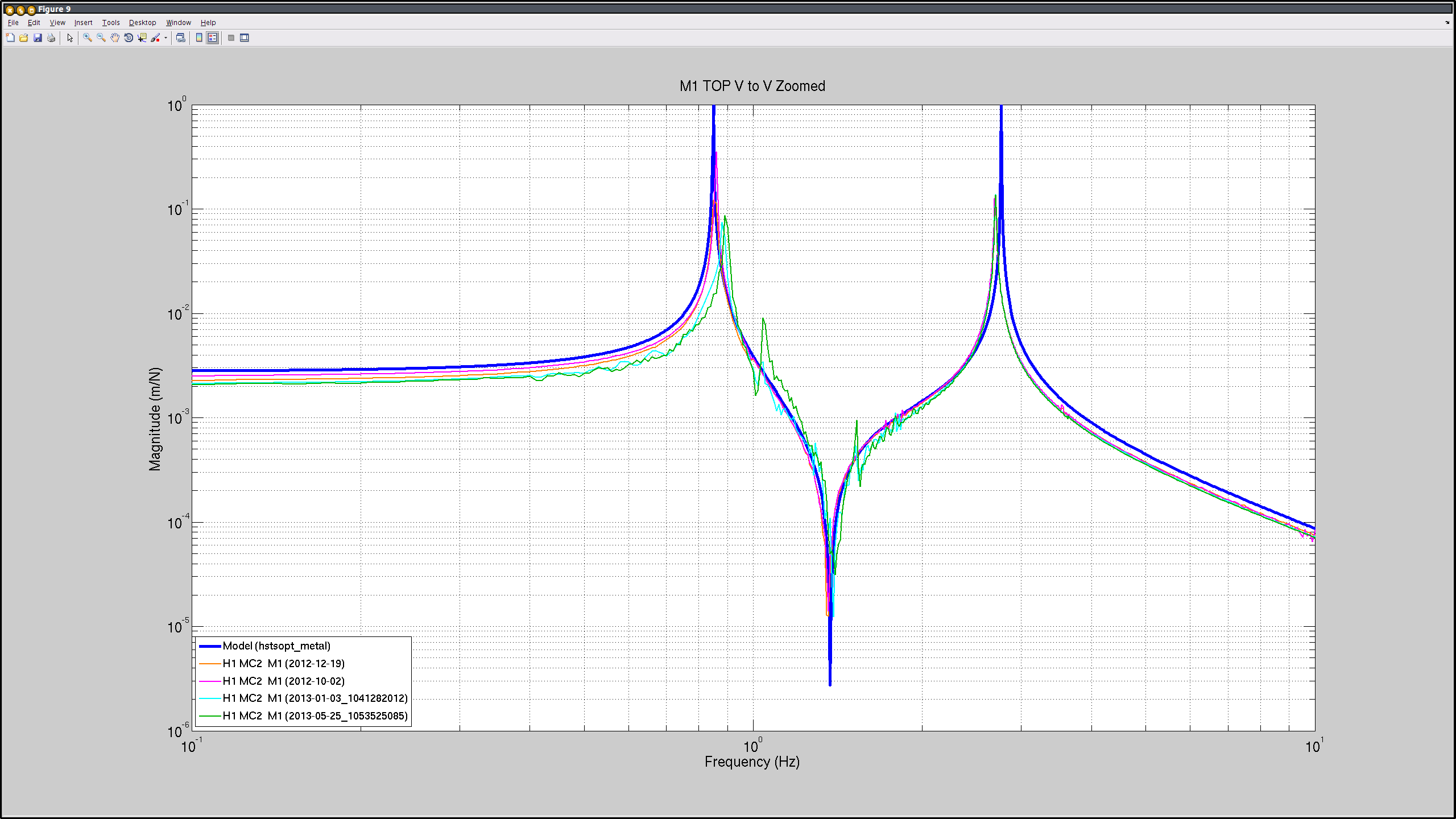

MC1 MC2 and MC3 Phase 3b M1 to M1 transfer functions have been measured over the past weekend. They all show good agreement with model and previous measurements.

The attached files are showing comparison between model, phase 3a and 3b (except for MC2 3b vs 3b)

MC1 (allhstss_2013-05-29_Phase3b_H1MC1_ALL_TFs.pdf)

• model in blue
• phase 3a on march 2013 with ISI locked and suspension undamped in orange
• phase 3b on may 2013 with ISI damped and suspension undamped in cyan
• phase 3b on may 2013 with ISI damped and suspension damped in pink

MC2 (allhsts_2013-05-29_Phase3b_H1MC2_ALL_TFs.pdf)

• model in blue
• phase 3b on january 2013 with ISI unlocked and suspension undamped in orange
• phase 3b on may 2013 with ISI damped and suspension undamped in pink
• phase 3b on may 2013 with ISI damped and suspension damped in cyan

MC3 (allhsts_2013-05-29_Phase3b_H1MC3_ALL_TFs.pdf)

• model in blue
• phase 3a on march 2013 with ISI locked and suspension undamped in orange
• phase 3b on may 2013 with ISI damped and suspension undamped in pink
• phase 3b on may 2013 with ISI damped and suspension damped in cyan

files and data have been commited on the svn under the following directories :
/ligo/svncommon/SusSVN/sus/trunk/HSTS/Common/{MatlabTools/Data}
/ligo/svncommon/SusSVN/sus/trunk/HSTS/H1/${MC1/MC2/MC3}/SAGM1/${Data/Results}


Summary of important events:

- Sheila found the Y-ITM cameras unplugged, she plug them and turn them on.
- LVEA crane maintenance. Talk to Ski or John for more details.
- Apollo working in X End, which (I guess) trigger the dust monitors several times over there.
- Y arm: GV 1,5,6,9,10,11,12,17,18 open
- The main gate seems broken, Ski said will take care of it - (Now, 16:00, is working well)
- PSL died ~2PM, not clear reason why. For more details talk to Michael R.
    NOTE: no alarm when this happen, I think we should have an alarm for events like this.
- PSL recovered ~3PM  ( Go hIFO! )

pablo

We moved the ergo arm and the genie lift (commonly reffered to as a "duct jack") from the LVEA to EX. We will relocate more items on THE LIST depending on crane availability. Drilling of the test stand is ongoing, 25% complete. CPB CR frame work is reassembled and ready for filters and lights pending some slight modifications for the valve motor box interference. Curtain install is 40% complete and ongoing. All CPB CR filters were tested individually in the first bay in a small clean room  with a particle counter and results were 000. We will install all filters in the clean room and retest, with results expected to be as good as previous testing. Annulus piping on GV 2 is 40% complete and ongoing.

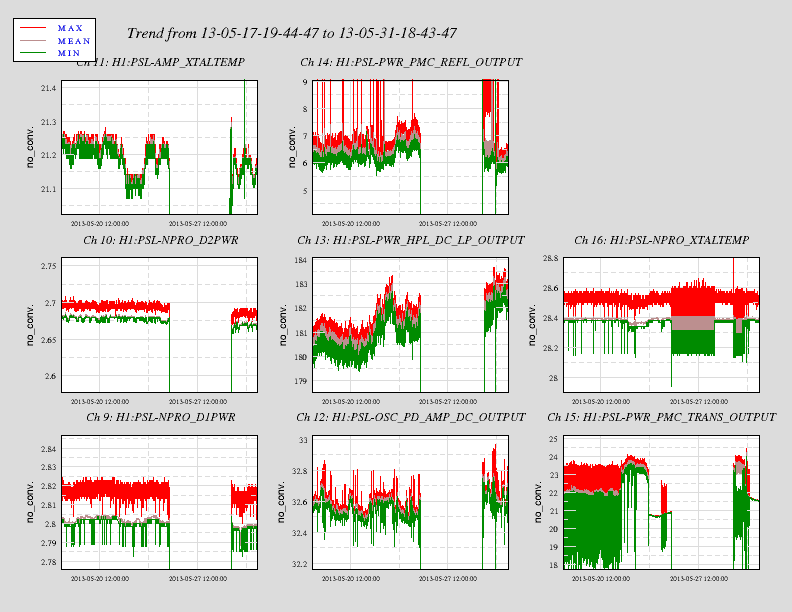

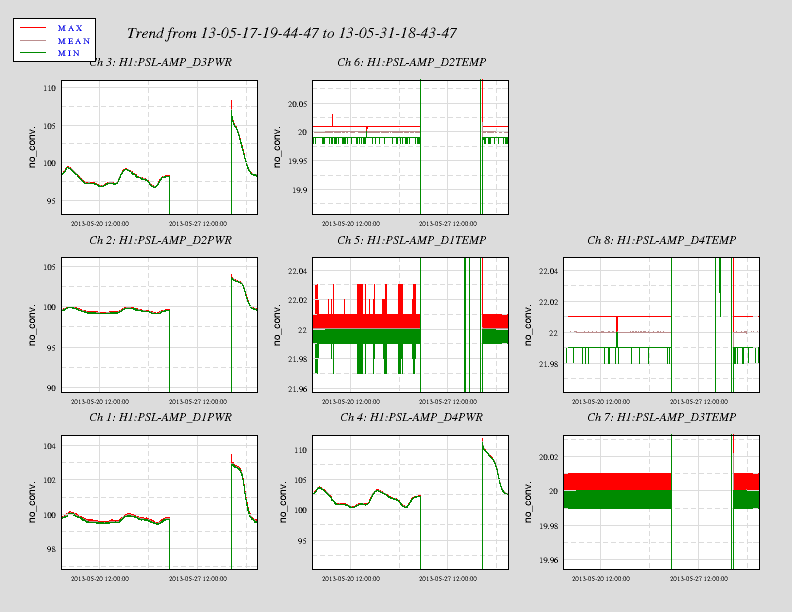

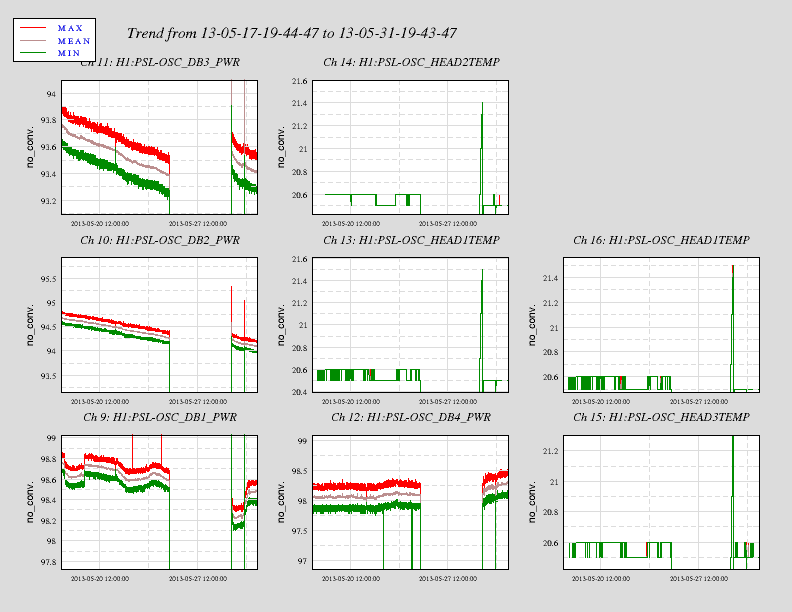

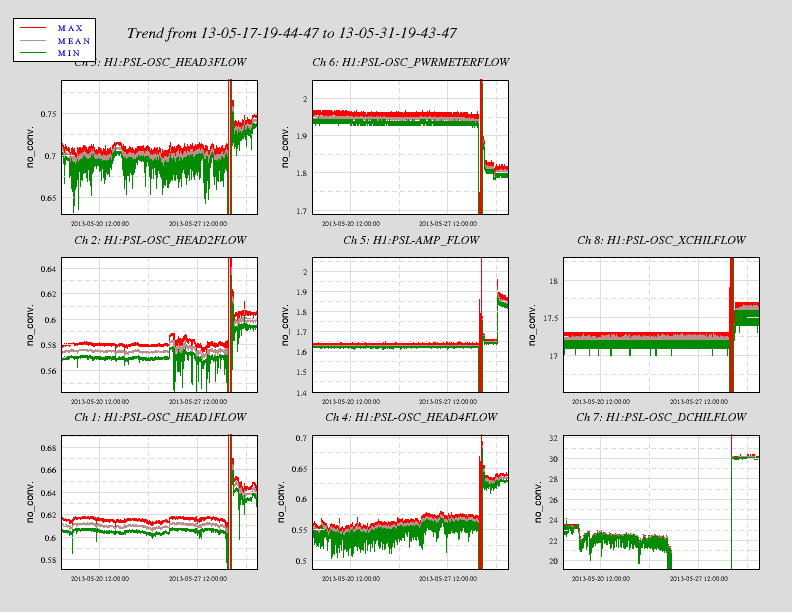

The PSL shut off today when the oscillator internal shutter was accidentally closed. This caused the power watchdog on the oscillator to trip as it couldn't lock to the frontend and the power dropped.

I found the laptop in the laser room (which remotely connects to the Beckhoff computer in the diode room) glitching, as the pointer was randomly moving and rapidly left-clicking even though I wasn't touching it. It looks like it wandered over to the internal shutter button where it clicked and closed the shutter. Thankfully to open the shutter a new window pops up with a warning of a possible Q-switch, and the button to confirm this is in a different position. The pointer was not able to move over to this area and open the shutter. I restarted the laptop which fixed the problem, and was able to bring back the laser. I closed the remote desktop client to ensure this couldn't happen again.

I wrote a little function that shows the coherence between the different channels. It creates a video to ease the viewing of the results (each frame is a frequency step).
I looked at the cross coupling on ISI-BSC6 using the following configuration:
- HEPI not controlled (It might be interresting to redo the measurement with the HEPI controlled)
- ISI controlled level 3, Blend 250mHz on both stages, T240s in stage 1 super sensor
- Sensor correction on both stages in X, Y and Z directions (no HEPI-L4C & STS-2 blend)

The video of the results can be downloaded at: https://svn.ligo.caltech.edu/svn/seismic/BSC-ISI/H1/ETMY/Scripts/Misc/ H1_ISI_ETMY_Cross_Coupling_20130515.avi
The list of channels is presented in: https://svn.ligo.caltech.edu/svn/seismic/BSC-ISI/H1/ETMY/Scripts/Misc/ Channels_List.txt

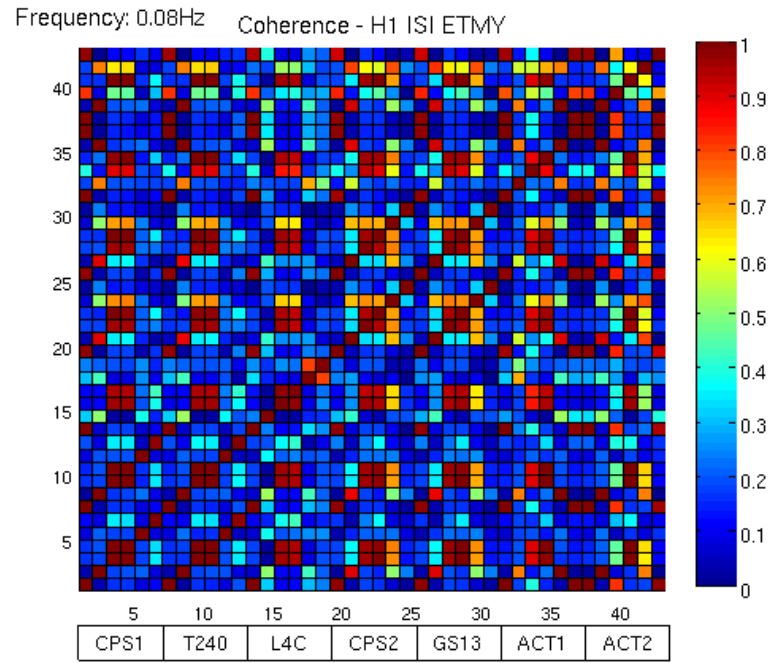

At 80mHz (where the motion amplification created by the control is maximal), the coherence matrix is presented in attachment (H1_ISI_ETMY_Coherence_Matrix_80mHz_20130515.jpg). Each patch is the coherence value.
Lots of information are displayed in the plot. For instance some of the important cross couplings are:
- Sensors Z to Rz on both stages
- Sensors X to Ry (on stage 2)
- Sensors Y to Rx (on stage 2)
- Actuators drive X->Ry,Rz (on both stages)
- Actuators drive Y->Rx,Rz (on both stages)
- Actuators drive Z->Rz (on both stages)

Previous experiences showed that large amplifications at low frequency are created by the control (reasons not totally defined). These amplifications are difficult to evaluate with the seismometers since the measured motions are in (or close from) the noise floor of the inertial instruments. Even if it is tricky to look at the position sensors, they can give us a good idea of the inertial motion amplification (HEPI is not controlled or controlled in position at 80mHz).Below the blend frequency, the error signal should ideally be dominated by the position sensors signals. Consequently, the relative motion between stage 0 - stage 1 and stage 1-stage 2 should be zeroed out.
The attached plot (H1_ISI_ETMY_ASD_CPS_Different_Sensor_Correction_20130515.jpg) shows the relative motion of the two stages (at the center of the horizontal actuators plan) when the ISI is controlled with the configuration described above.

Stage 1 - Comparison No control (black) vs Control (blue):
- In the X,Y directions, the motion of stage 1 relative to stage 0 is amplified by 1000 in the 50mHz-80mHz frequency band.
- In the Z, Rz directions, the motion of stage 1 relative to stage 0 is amplified by 50-100 in the 50mHz-80mHz frequency band
- In the Rx, Ry directions, the amplification of the stage 1 motion is limited in the 50mHz-80mHz frequency band

Stage 2 - Comparison No control (magenta) vs Control (red):
The relative motion between stage 1 and stage 2 is only amplified in the Z and RZ directions (amplification factor 50-100).

Regarding these results, it seems that most of the low frequency amplification comes from stage 1.

(Jax, Sheila)

The green beam is officially on ITMY again!

Unfortunately we no longer have the baffle photodiodes at our disposal, so we can't reproduce the OAT calibration. The rough alignment was achieved by viewing the beam on the pitch and yaw axes of the ITMY and averaging the counts on either side of the optic.

measurements - (pitch, yaw) in counts:

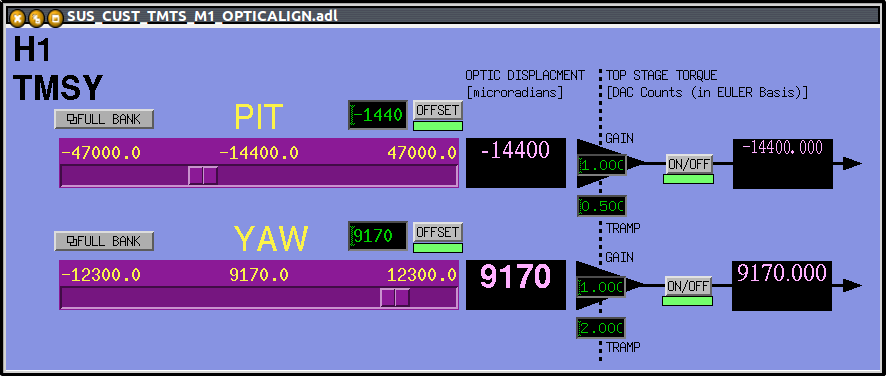

The nominal TMS alignment is (-14400, 9170).

Sheila D, Michael R

We realigned the reference cavity to get the autolocker to lock on a 00 mode. The transmitted PD is reading 2.15 V, which is about what it was before the chiller broke.

I set the common gain to 22.4 dB to get a UGF at 310 kHz.

Redoing the damped TFs on X1 with new damping filters and gains per LHO alog 6548.
