I have taken the calibration data and analyzed it. The plot of the linear response curve is attached.

I used a polynomial fitting program in python to get these numbers.  This should give you the conversion from volts to micro-radians.

           Slope            Y-intercept
Pitch   [  1.01902201e+06   8.42886118e+00]
Yaw     [  9.83122943e+05  -1.19329010e+01]

I have returned the broadband photodetector (S1200235) to its original box in MY.

The tripleteststand is malfunctioning - Symptoms are GPS time for user model and IOP model freezes at some time (identical for both), killing the user model and restarting the IOP results in a GPS time of 0, and the IOP indicates no ADC/DAC cards exist.  There is an interesting dialog which can be brought up using the dmesg command:

[13290.003398] x1ioptriple: Allocated daq shmem; set at 0xffffc9001a10d000
[13290.003399] x1ioptriple: configured to use 5 cards
[13290.003400] x1ioptriple: Initializing PCI Modules
[13290.003408] x1ioptriple: ADC card on bus a; device 4 prim a
[13290.003409] x1ioptriple: adc card on bus a; device 4 prim a
[13290.003415] x1ioptriple: pci0 = 0xffffffff
[13290.003423] resource map sanity check conflict: 0xffffffff 0x1000001fe 0xffc00000 0xffffffff reserved
[13290.003426] ------------[ cut here ]------------
[13290.003431] WARNING: at arch/x86/mm/ioremap.c:98 __ioremap_caller+0xd5/0x301()
[13290.003432] Hardware name: X8DTU
[13290.003433] Info: mapping multiple BARs. Your kernel is fine.
[13290.003434] Modules linked in: x1ioptriplefe(+) mbuf [last unloaded: x1ioptriplefe]
[13290.003437] Pid: 5760, comm: insmod Not tainted 2.6.34.1 #7
[13290.003438] Call Trace:
[13290.003442]  [] warn_slowpath_common+0x77/0x8f
[13290.003444]  [] warn_slowpath_fmt+0x3c/0x3e
[13290.003446]  [] __ioremap_caller+0xd5/0x301
[13290.003449]  [] ? T.484+0x13/0x15
[13290.003451]  [] ? pci_bus_read_config_dword+0x66/0x74
[13290.003452]  [] ioremap_nocache+0x12/0x14
[13290.003457]  [] mapAdc+0x65/0x251 [x1ioptriplefe]
[13290.003461]  [] mapPciModules+0x6c1/0x824 [x1ioptriplefe]
[13290.003465]  [] init_module+0x242/0x97d [x1ioptriplefe]
[13290.003468]  [] ? init_module+0x0/0x97d [x1ioptriplefe]
[13290.003471]  [] do_one_initcall+0x59/0x149
[13290.003475]  [] sys_init_module+0xd1/0x231
[13290.003477]  [] system_call_fastpath+0x16/0x1b
[13290.003478] ---[ end trace 31c35fdb3a0a9ba9 ]---
[13290.003481] ioremap reserve_memtype failed -22
[13290.003483] x1ioptriple: pci2 = 0xffffffff
[13290.003485] resource map sanity check conflict: 0xffffffff 0x1000001fe 0xffc00000 0xffffffff reserved
[13290.003487] ioremap reserve_memtype failed -22
[13290.003488] x1ioptriple: ADC I/O address=0xffffffff  0x0
[13290.003491] BUG: unable to handle kernel NULL pointer dereference at (null)
[13290.003919] IP: [] mapAdc+0xd8/0x251 [x1ioptriplefe]
[13290.004137] PGD 1b7cbc067 PUD 1b7c84067 PMD 0
[13290.004352] Oops: 0000 [#1] SMP
[13290.004562] last sysfs file: /sys/devices/pci0000:00/0000:00:1e.0/0000:27:01.0/class
[13290.004974] CPU 2
[13290.004979] Modules linked in: x1ioptriplefe(+) mbuf [last unloaded: x1ioptriplefe]
[13290.005596]
[13290.005801] Pid: 5760, comm: insmod Tainted: G        W  2.6.34.1 #7 X8DTU/X8DTU
[13290.006215] RIP: 0010:[]  [] mapAdc+0xd8/0x251 [x1ioptriplefe]
[13290.006637] RSP: 0018:ffff8801b7d49dc8  EFLAGS: 00010292
[13290.006846] RAX: 000000000000003f RBX: 0000000000000000 RCX: 000000000000003f
[13290.007059] RDX: 0000000000020cc5 RSI: ffffffff8179c135 RDI: 000000000000000a
[13290.007272] RBP: ffff8801b7d49df8 R08: 000000007ffffff2 R09: 000000000000000a
[13290.007487] R10: 0000000000000006 R11: 00000000ffffffff R12: ffffffffa000f130
[13290.007701] R13: ffff8801be8ad800 R14: 0000000000000000 R15: 0000000000000000
[13290.007914] FS:  00007f957e7836f0(0000) GS:ffff880001e40000(0000) knlGS:0000000000000000
[13290.008326] CS:  0010 DS: 0000 ES: 0000 CR0: 0000000080050033
[13290.008537] CR2: 0000000000000000 CR3: 00000001a165d000 CR4: 00000000000006e0
[13290.008746] DR0: 0000000000000000 DR1: 0000000000000000 DR2: 0000000000000000
[13290.008955] DR3: 0000000000000000 DR6: 00000000ffff0ff0 DR7: 0000000000000400
[13290.009165] Process insmod (pid: 5760, threadinfo ffff8801b7d48000, task ffff8801bdd0f200)
[13290.009571] Stack:
[13290.009771]  0000000000000000 ffffffffa000f130 0000000000000001 0000000000000000
[13290.009985] <0> 0000000000000000 0000000000000000 ffff8801b7d49e48 ffffffffa00087b7
[13290.010401] <0> ffff8801b7d49e18 00000000b7d49e58 ffff8801b7d49e48 ffff8801b7d49e58
[13290.011023] Call Trace:
[13290.011231]  [] mapPciModules+0x6c1/0x824 [x1ioptriplefe]
[13290.011445]  [] init_module+0x242/0x97d [x1ioptriplefe]
[13290.011659]  [] ? init_module+0x0/0x97d [x1ioptriplefe]
[13290.011872]  [] do_one_initcall+0x59/0x149
[13290.012081]  [] sys_init_module+0xd1/0x231
[13290.012291]  [] system_call_fastpath+0x16/0x1b
[13290.012501] Code: 00 02 00 00 e8 0c cc 01 e1 8b 35 91 e8 49 00 48 89 c2 49 89 c6 48 c7 c7 fc d3 00 a0 31 c0 e8 a9 57 00 00 4e 89 34 fd 20 5e 01 a0 <41> 8b 36 48 c7 c7 19 d4 00 a0 31 c0 e8 90 57 00 00 4a 8b 14 fd
[13290.013247] RIP  [] mapAdc+0xd8/0x251 [x1ioptriplefe]
[13290.013468]  RSP
[13290.018602] CR2: 0000000000000000
[13290.019122] ---[ end trace 31c35fdb3a0a9baa ]---

The only way to recover is to power the computer off, then power the I/O Chassis off at the power supply, wait, then power up the I/O Chassis, then the computer.  The IOP model can be started normally at that point, followed by the user model.  So far, the system has died three times since Wednesday July 18.

[Bram, Alberto]

Both the ALS REFL PD and the TMS green QPDs are showing larger counts than before the weekend. It looks like the trend started sometime between Friday and Saturday night.

See attached plots. The REFL PD is set with a negative gain so that it reads 0 when the arm was unlocked, and it beceomes postive when the arm is locked.

Now we read around -4000 cts when the arm is unlocked.

Also the green QPD segments, both A and B read around 2200 cts, vs about 2000 as they did before.

We're not yet sure if this means that there's actually more physical power in the beam going. If that was the case, then it would be quite strange.

Could it be a DAQ artefact?

The H2 ETMY optical lever is fully installed with the beam reflecting off the front surface of the optic, picture of the beam is attached to show beam size.

Calibration data has been taken and being processed, the linear response curve needs to be implemented in the C-code written by Jeff Kissel.  The hysteresis within the gears of the translation stage on the receiver side could be a factor in the accuracy of the calibration.

This alog gives a quick status of the seismic systems (HEPIs and ISIs) used for the single arm test (BSC6 and BSC8).

BSC-ISI:
ISI-BSC8 has been running with damping loops and Isolation loops since the end of May with decent isolation performance. https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=2976

ISI-BSC6 commissioning started more recently. An overall amplification of the motion was immediately noticed around 1Hz (QUAD mode). By the time, writing the commissioning scripts and controlling HEPI was the priority and the no time was spent on ISI-BSC6 to fix the “1Hz” issue.

This week, some modifications were made to the complementary filters that are used to build the blend filters. The initial filters were replaced by less aggressive ones (smaller bump around the blend frequency (750mHz, 250mHz) and less roll off on the low pass. I have attached a link to bode plots of the 4 complementary filters currently used.
LHO_ISI_BSC6_BSC8_OAT_Complementary_Filters_2012_07_20.fig

The blend and isolation filters currently implemented on the two ISIs are designed using the following parameters:
- Blend at 750mHz on all degrees of freedom except on stage 1 in the Y direction where a 250mHz Blend is used instead.
- UGF: 15Hz on all DOFs
- Phase margin > 45deg
- Gain margin>20dB
- Gain peaking <2

The isolation filters used on the two ISIs are pretty closed. Spectra were measured on the ISIs in the undamped and the isolated state. The performances are OK for now. Optimization will be done later.

Stage 2 GS13 spectra are presented below. The scrip that is used to measure the spectra in the different configuration is currently being reworked. The tails of the spectra in the two uncontrolled and the controlled configurations should match better.

BSC-ISI – ITMY (BSC8):
- LHO_ISI_BSC8_ASD_m_CART_ST2_GS13_Undamped_vs_Isolated_2012_07_18_162209.fig

BSC-ISI – ITMY (BSC6):
- LHO_ISI_BSC6_ASD_m_CART_ST2_GS13_Undamped_vs_Isolated_2012_07_19_151614.fig

The HEPI was commissioned fairly quickly to lock stage 0 of the ISI to the ground. Recently, the TMS-QUAD alignment offsets were offloaded on HEPI-BSC6 (250*10^-6 rad in the +RZ direction).

The HEPI are tuned using the following parameters:
- Blend at 800mHz
- UGF: 10Hz
- Phase margin > 45deg
- Gain margin>20dB
- Gain peaking <2
- Pringle modes are controlled (AC)
- No sensor corrections but the STS-2 are in place, connected, leveled and working.

I have attached spectra of the super sensor signals when the HEPI is uncontrolled and controlled.

HEPI – ITMY (BSC8):
- LHO_HPI_BSC8_ASD_m_Super_Sensors_H_Undamped_vs_Isolated_2012_06_20_170452.fig
- LHO_HPI_BSC8_ASD_m_Super_Sensors_V_Undamped_vs_Isolated_2012_06_20_170452.fig

HEPI – ETMY (BSC6):
- LHO_HPI_BSC6_ASD_m_Super_Sensors_H_Undamped_vs_Isolated_2012_07_02_155724.fig
- LHO_HPI_BSC6_ASD_m_Super_Sensors_V_Undamped_vs_Isolated_2012_07_02_155724.fig

Calibration check:
Some measurements were made to check the calibrationand the basis change matrices used on HEPIs and ISIs. Spectra All sensors when no damping on the ISI. Some glitches still need to be fixed (factor of two on HEPI). Couple of glitches still needs to be fixed.
- LHO_ISI_BSC8_ASD_HEPI_BSC_ISI_Undamped_2012_07_18_020214.fig
- LHO_ISI_BSC6_ASD_HEPI_BSC_ISI_Undamped_2012_07_18_020214.fig

During the “1Hz chase” on ISI-BSC6, the reconstruction scripts that are used to build the hundred of filters, required to control the ISI, from a unique set of measurements (ISI undamped) were fully verified for the first time. Excellent agreements between measurements and simulations were seen even on the cross couplings between stages. These scripts allow a huge gain of time during commissioning.
A nice step forward was done during the last few weeks.

[HAM3 In-chamber work from 11:30am-1:15pm]

After staking out ISI Corner3 Cabling work on Thursday, I went about dressing the Corner 3 GS13 pigtail cable, one of the more important to dress since these are the only ISI cables which come from the suspended Stage1 to Stage0 (we have to be careful there are no seismic shorts).   So between Stage 1 & 0, the cable must be dressed just right--not too tight, and not too loose.  Between Stages, you also have to elimate any sort of rubbing.  Basically you have to have a good eye's view and be very precise with clamping these cables.

This is hard for Corner3 on HAM2 & HAM3.

So, in to Chamber and on top of the table I went.  To minimize head rushes/passing out, and gettingoverly overheated, I slowly did work in small steps (either upside down, or by keeping head level with torso and reaching down to the breadboard area).  I removed all other ISI cables from the tiny breadboard we had.  I then dressed the H3 & V3 GS13 cables to their own clamp on Stage0.  I did this such that each cable had a nice & clean "S" run between stages.  After that I installed the Grounding Bracket (with Extension cable bolted on) on the breadboard.  And I finally connected the pigtail cable to the Bracket.

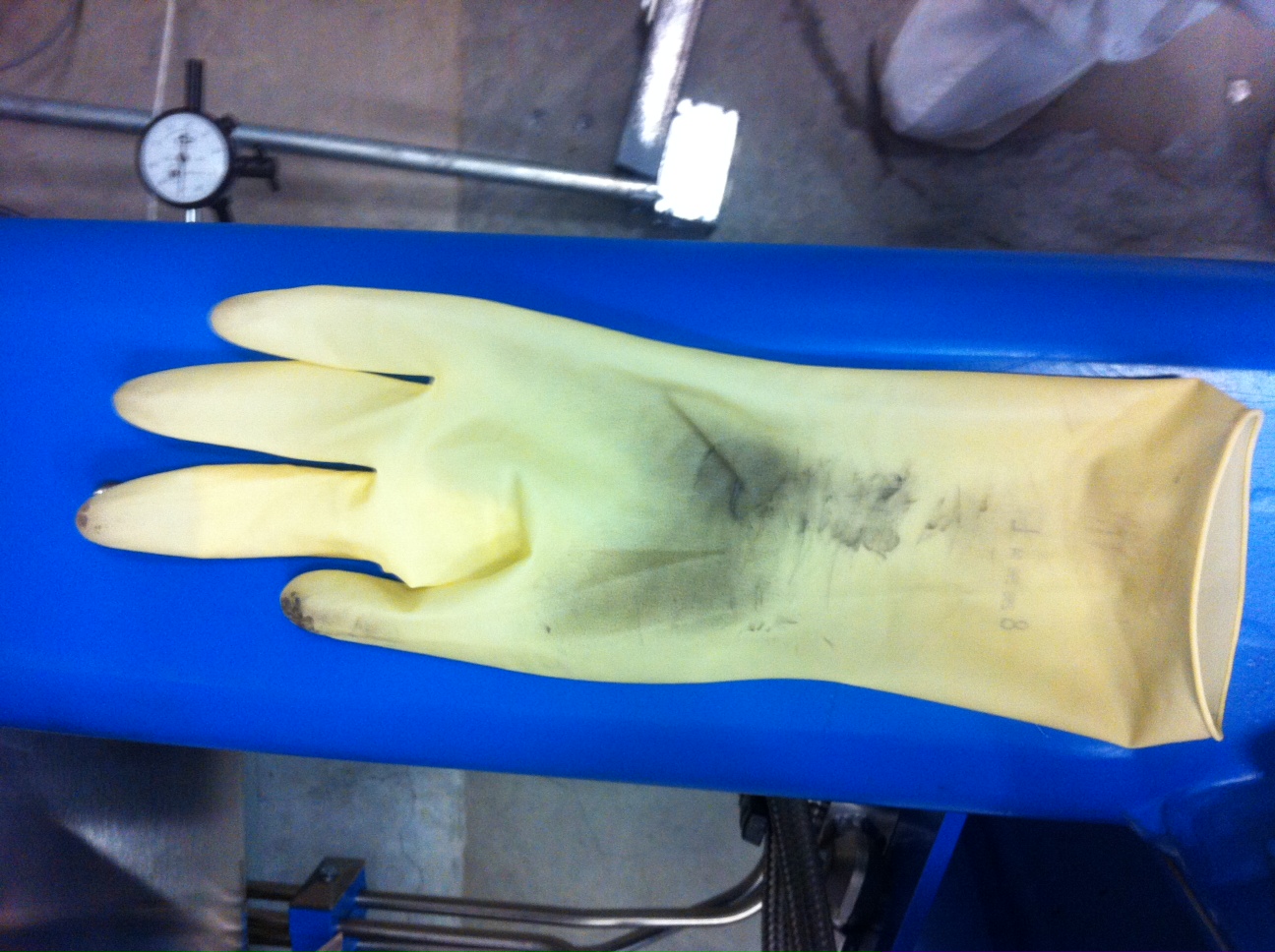

During this work, I managed to drop an allen wrench, and it fell below the ISI and landed directly in the center of the HAM Chamber.  Funnily, it wasn't easy to get to the tool!  I ended up performing endoscopic surgery and used a clean cable to pull out the tool.  Note:  this work yielded a "white glove" test in that afterward, my glove ended up getting fairly filthy after rubbing up against the Chamber floor (see attached dirty glove).

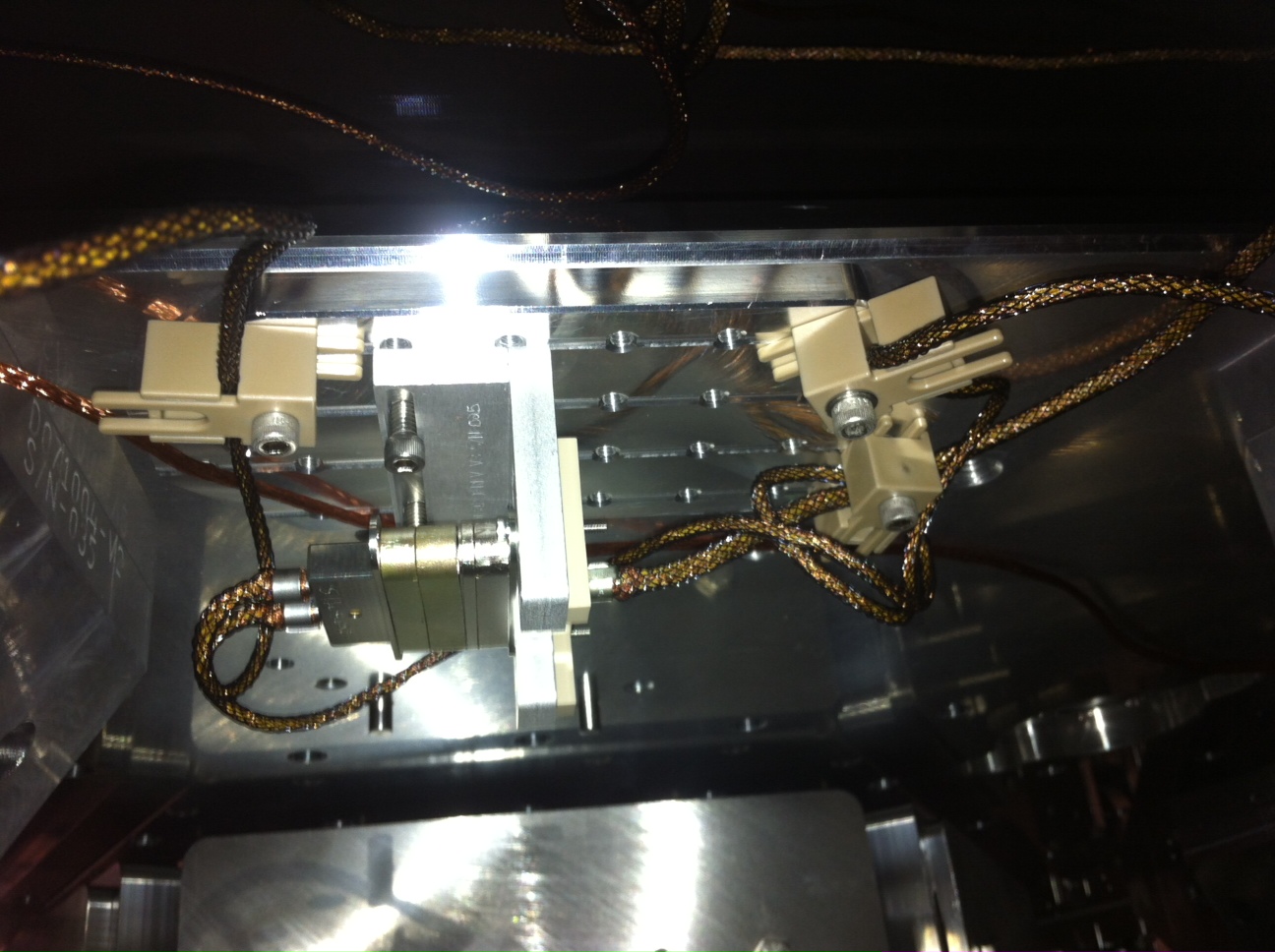

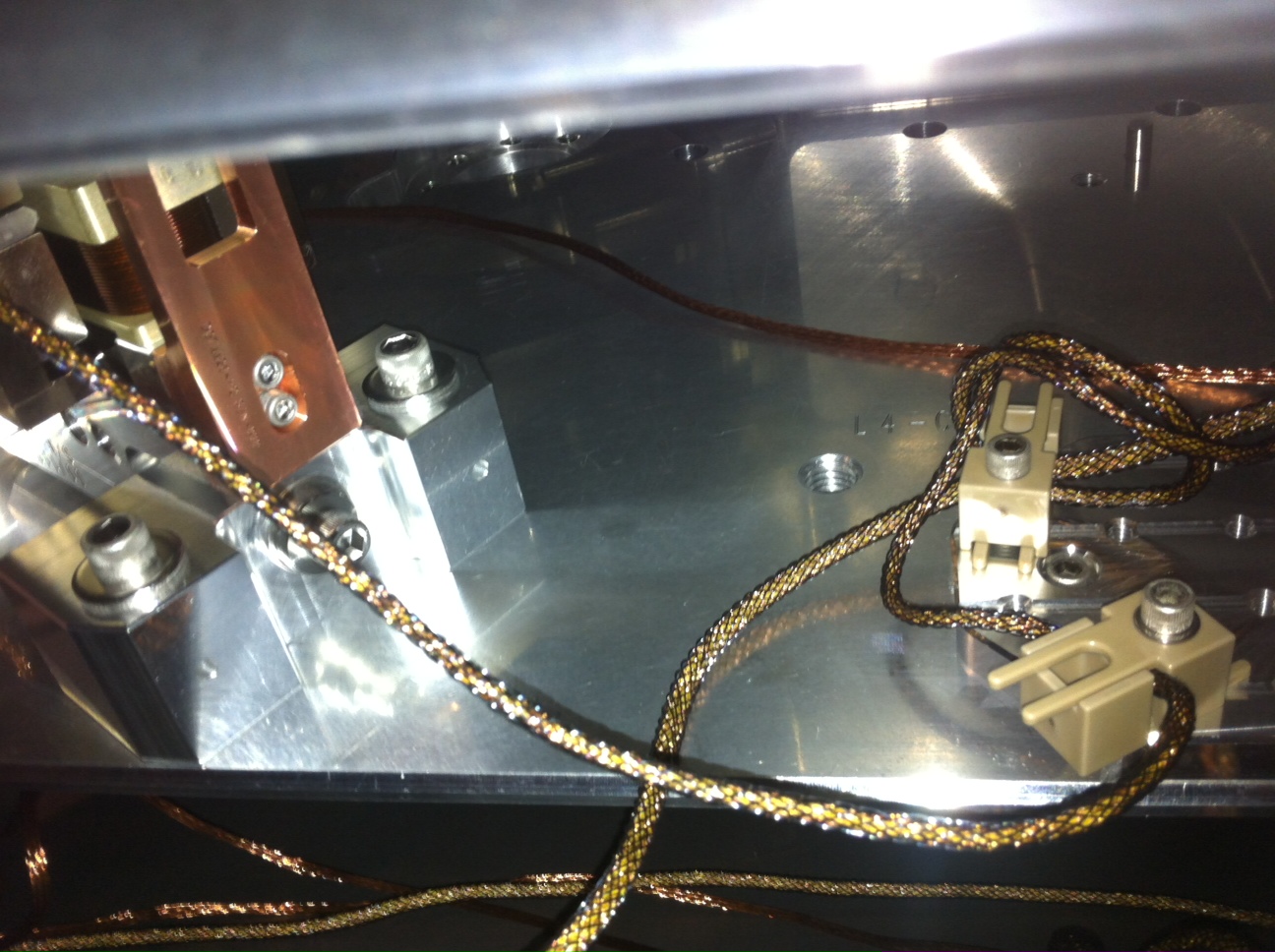

So, the GS13 cables are dressed for Corner3 (see attached photos & video).

As for other cables....

For the H3 CPS & Actuator, I'd say we bypass the tiny breadboard, and pull these cables straight down off of Stage0 & then take them to the Center flange (D2).  For the V3 CPS & Actuator, I'd also try to avoid the center breadboard (because it's just hard to do work in there) and go straight to the flange.

Check ResourceSpace for views of PR3 coming out of the can and MC2 receiving the optic.  Both activities occurred on 7/12/12.

Aligned the cavity using tdsdither @ 19:20.

Left the cavity locked w/o VCO offloading servo to ETMY so we can make a (somewhat) longer term comparison of the ETM angle with (yesterday) and without (tonight) the length drive.

Also QPD servo was disabled so we can see how good or bad the alignment is going to be without active pointing servo.

ETMY L1 damp filters are on (as usual only for L and P).

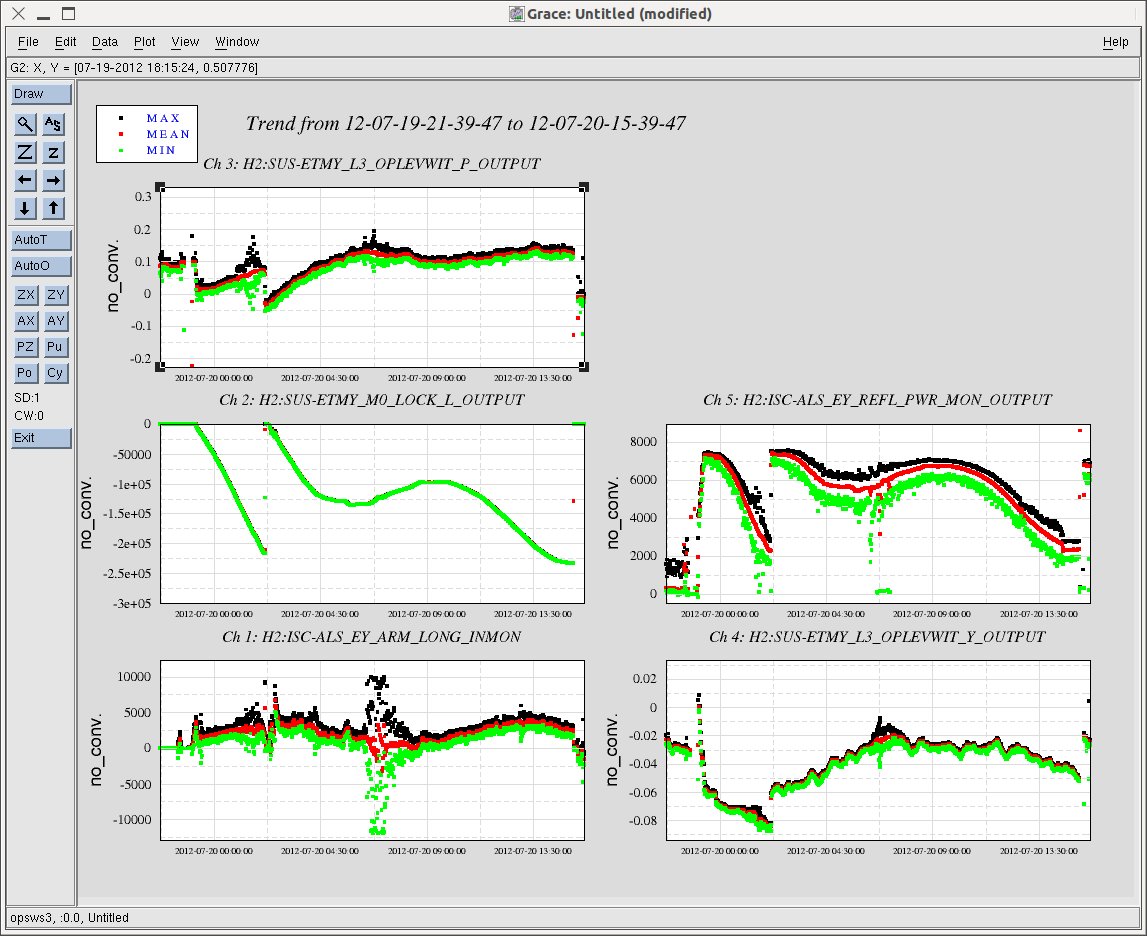

Attached is a trend of cavity length drift from the yesterday.

The first lock stretch is a 3-hours one that I mentioned in https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=3517. The second lock stretch lasted until this morning.

CH2 is the output of the ETMY M0 lock filter. Using 0.48nm/ct calibration, it seems as if the length drift for both of the stretches was about 110 um. You should be able to stitch these two together, so it is something like 220 um over 16 hours period. This could be tidal.

I don't know if our tidal prediction software still works, wiki page says it doesn't work on Linux workstations.

CH3 and CH4 are the output of ETMY oplev. I think these were calibrated by Thomas, but I couldn't find any alog about that, so for now it is uncalibrated.

CH5 is the reflected power which mimics the transmitted power.

Attached are plots of dust counts > .5 microns in particles per cubic foot.

• Bubba working at EY
• Vacuuming in the OSB optics lab at 11:14AM
• Filiberto inventoring in electronics room
• Kyle/Gerardo changing gasket at HAM5
• Elli at EY working on optics table
• Eric working at HAM3/4
• Jim, Mitchell, Greg working at HAM2

Found x1tripleteststand had time frozen at Wednesday evening (July 18).  Could not get models to run, even after restarting the tripleteststand computer and cycling power with the I/O chassis power switch.  Appeared the DAC and ADC cards could not be found.

Ended up turning off power to computer, then turning off power supply to I/O chassis, then powering back up in order.  Started IOP model, then user model, both started properly.

Given the timing, possibly a lightning induced power glitch?

GregG, JimW

The HAM2 ISI is now floating on HEPI. Well, not now, 'cause we lightly re-engaged earthquake stops, but it is currently mostly supported by the springs. We haven't done a level or height check yet, as I don't know where our references are or what height we need to look for, but we are basically ready to start working with IAS on figuring out where we need to move to. Should be able to hammer that out next week.

This afternoon, I:

- ran and committed to svn, TFs of all 6 DOFs of the glass MC2 chamberside, with the damping loops ON.

- performed svn commit on the exports I did of the 2012-07-20 TFs taken earlier of the all metal MC2, which also required renaming with arbitrary time as the form was incorrect for matlab.

- added all 3 sets of the latest data to the plotallhsts_tfs.m file and committed

Plot comparisons to come.

After restoring the Beckhoff system we could not relock the PLL in the end-station.

I turned out the the laser in the optics lab (corner station) was on stand-by, indicating that the 'door' wasn't shut on-time or something similar.

I tickled the laser temperature to find the 00-mode and all is running again.

The PLL in the end-station is running smoothly.

Calibrated ETMY M0 OSEM drive, plus calibration of M0/L1/L2 OSEM sensing, by injecting 0.1Hz drive to M0 while the cavity is locked without low frequency offloading from VCO to ETMY. M0 damping was on but L1 damping was off.

Length drive calibration for M0 stage is 0.48nm/cts, not 1nm/cts.

M0 and L2 OSEM sensing calibration is in a ballpark. According to Stuart JeffK, it should be 38 nm/cts.

L1 OSEM sensing calibration is off by a factor of 10. I checked digital gains but they look OK to me. JeffK called me to tell that Matt put a factor of 10 in SENSALIGN matrix for L which I forgot.

If SENSALIGN matrix element for L were 1, L1 DAMP_L_IN1 calibration would be 32 nm/cts.

The LVEA and OSB chilled water pump was inadvertantly tripped off while attempting some adjustments. The Chiller and water pump were off from about 11:26 local time to 11:35.

The system appears to be back to normal and we have switched to Chiller 3 rather than Chiller 1. Water flow is up from 45hz to 60hz (variable speed pump) We have increased the water flow to help deal with

the summer temperatures.
