Andres R, Gerardo2 M. and Jeff B. Today we moved the ITMY from its H2 one arm test position to its H1-BSC1 position. No problems were encountered during the move or with mounting the QUAD to the BSC.
During any spare moments last week, whilst waiting for test results to come in, I spent time configuring the digital system for the remaining suspension models that are already up and running. - Infrastructure created for BURT snapshot files at, for example, "opt/rtcds/userapps/release/sus/h1/burtfiles/sr2". - BURT infrastructure put under SUS svn control. - Set-up for M1, M2 and M3 stages nominal Watchdog limits, i.e. sensor DC monitors of -30000 to +30000, sensor AC rms monitors of +8000, actuator AC rms monitors of +25000. Also, switched in required "dcBandLim" and "acBandLim" filter banks. - Configured OSEM INPUT FILTERS with default gains (+1) and offsets (-15000), for M1, M2 and M3 stages. Also, switched in required "deWhite" filter banks. - Populated OSEM2EUL matrix with values generated with "make_sushsts_projections.m" and written using "fill_matrix_values.m" scripts (see LLO aLOG entry 2508 for an example). - Populated EUL2OSEM matrix with values generated as above, for M1, M2 and M3 stages. - Verified correct sign convention used in both OSEM2EUL and EUL2OSEM matrices (as detailed in LHO aLOG entry 4350). - Populated SENSALIGN matrix using Matlab blkdiag(1,1,1,1,1,1) function and "fill_matrix_values.m" script, for M1, M2 and M3 stages. - Configured DAMP filter gains using default values for SR2 + PRM (HSTSs), and PR3 (HLTS). Also, switched in required filter banks. - Configured DRIVEALIGN matrix, manually turning off non-diagonal elements, for M1, M2 and M3 stages. - Configured COIL OUTPUT FILTERS gains (signs) for M1, M2 and M3 stages. n.b. the M1-SD BOSEM gain is switched to (+1) for PR3 (HLTS). Also, switched in required filter banks. n.b. updated compensation filters have already installed for all HSTS and HLTS suspensions (see LHO aLOG entry 4359). - Turned ON damping loops for each DOF, but turned OFF M1, M2, and M3 Master Switches, so that new SAFE BURT snapshot could be taken for SR2, PR3 and PRM. - Moved BURT snapshots from "target" directory, to "userapps" directory i.e. from "opt/rtcds/lho/h1/target/h1sussr2/h1sussr2epics/" to directory under sus svn control "opt/rtcds/userapps/release/sus/h1/burtfiles/sr2". - Committed new BURT snapshots to sus svn, "h1sussr2_safe.snap", "h1suspr3_safe.snap" and "h1susprm_safe.snap". These digital systems are now ready to receive the next suspensions for Phase 2a testing chamber-side, most likely this will be PR3 (HLTS). The final piece of the puzzle will be to input/transfer OSEM gains and offsets.
While H2 DAQ was down today I copied the complete set of slow controls PEM minute trend data from H2 DAQ to H1 DAQ using the same procedure followed yesterday for VE and FMCS data.
The H1 DAQ was restarted, it is now serving the full look back of DUST and WEATHER data.
I put all the H1 and H2 DAQ hand edited configuration files into the cds_user_apps SVN repository under trunk/cds/h[1,2]/daqfiles
Files put under SVN
Attached are plots of dust counts > .3 microns and > .5 microns in particles per cubic foot. The data was taken from approximately 6 AM to 6 PM. Also attached are plots of the modes to help show when the data was valid. The large gap is from when the H2 DAQ was down.
Ref WP#3489
Prior to this work, EY H2 Coil drivers were disabled to prevent any damage occuring to ETMY and TMSY (Vern Sandberg and Jim Batch).
Various H2 front ends were rebooted by Alex. The failure of all front end data as detected by the DAQ data concentrator was eventually reproduced, along with the spontaneous crash of h2dc0 when the front end recovered.
Alex spent most of the day with the H2 DAQ down while he tried various upgrades to the MX_STREAMS drivers and code on the concentrator.
By 4pm the H2 DAQ was returned to operational. At around the same time the H1 DAQ was restarted with a complete set of VACUUM and FMCS channels, so that when the H2 DAQ is taken down over the weekend these channels will continue to be trended.
Alex will continue this work through to Monday. The aim is that the bug whereby a single front end restart/reboot invalidates all front ends data for many minutes at a time will be resolved.
Ref WP#3492
Due to today's H2 DAQ work, I reconfigured H1 DAQ to also acquire the VACUUM and FMCS EPICS channels. The process was:
h2ldasgw0 and h2ldasgw1; stop acquiring data, tar up the raw minute files for all the VE and FMCS channels. These tar files were 62GB and 48GB respectively, and have 277 and 382 number of channels respectively.
compess the VE and FMCS tar files, size reduced to 18GB and 8GB respectively.
copy the h2ldasgw0 files to h1ldasgw0, copy the h2ldasgw1 files to h1ldasgw1. Uncompress and install the VE and FMCS files into the minute_raw trends dirctory on h1ldasgw[0,1]
Reconfigure h1fw0 and h1fw1 to acquire VE and FMCS files. The H0EDCU_VE.ini and H0EDCU_FMCS.ini files were copied from H2 DAQ to H1 DAQ.
The H1 DAQ was restarted. VE and FMCS data in full frames, second frames and minute frames started from scratch. The raw minute trend frames were then appended with the latest data, and all previous minute trends are available back to the VE and FMCS epoch.
In addition, the H1 TIMING EPICS channels from the h1ecatc0 IOC were added to the frame. These channels cover the status of the H1 Timing Master in the MSR. The new channels have the prefix H1:CDS-TIMING_
The new ini file is called H1EDCU_TIMING.ini
Patrick reminded me that a trend of this weekend's dust monitors would be also valuable to preserve, so I have just added the H0EDCU_PEM.ini to the H1 DAQ (dust and weather station data). In this case I did not have time to copy the raw minute trend files, so these channels are starting from scratch at 18:30 Friday.

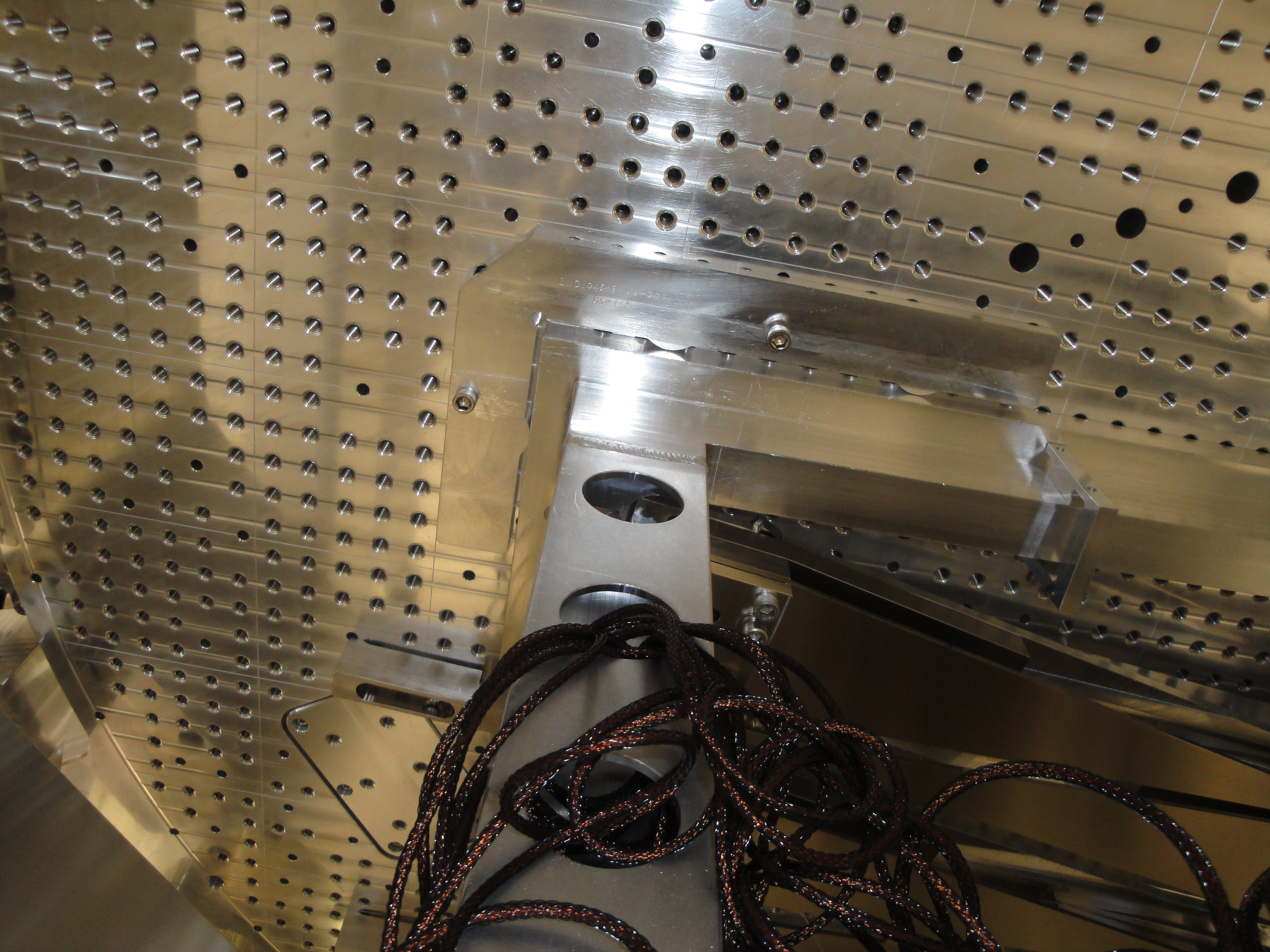

In prep for a possible move next week, we've installed the cookie cutter, cleared a path on the ISI table, removed a bunch of the QUAD dog clamps, and disconnected all of the QUAD cables such that the ITMy is ready to swing 90deg into it's new position.

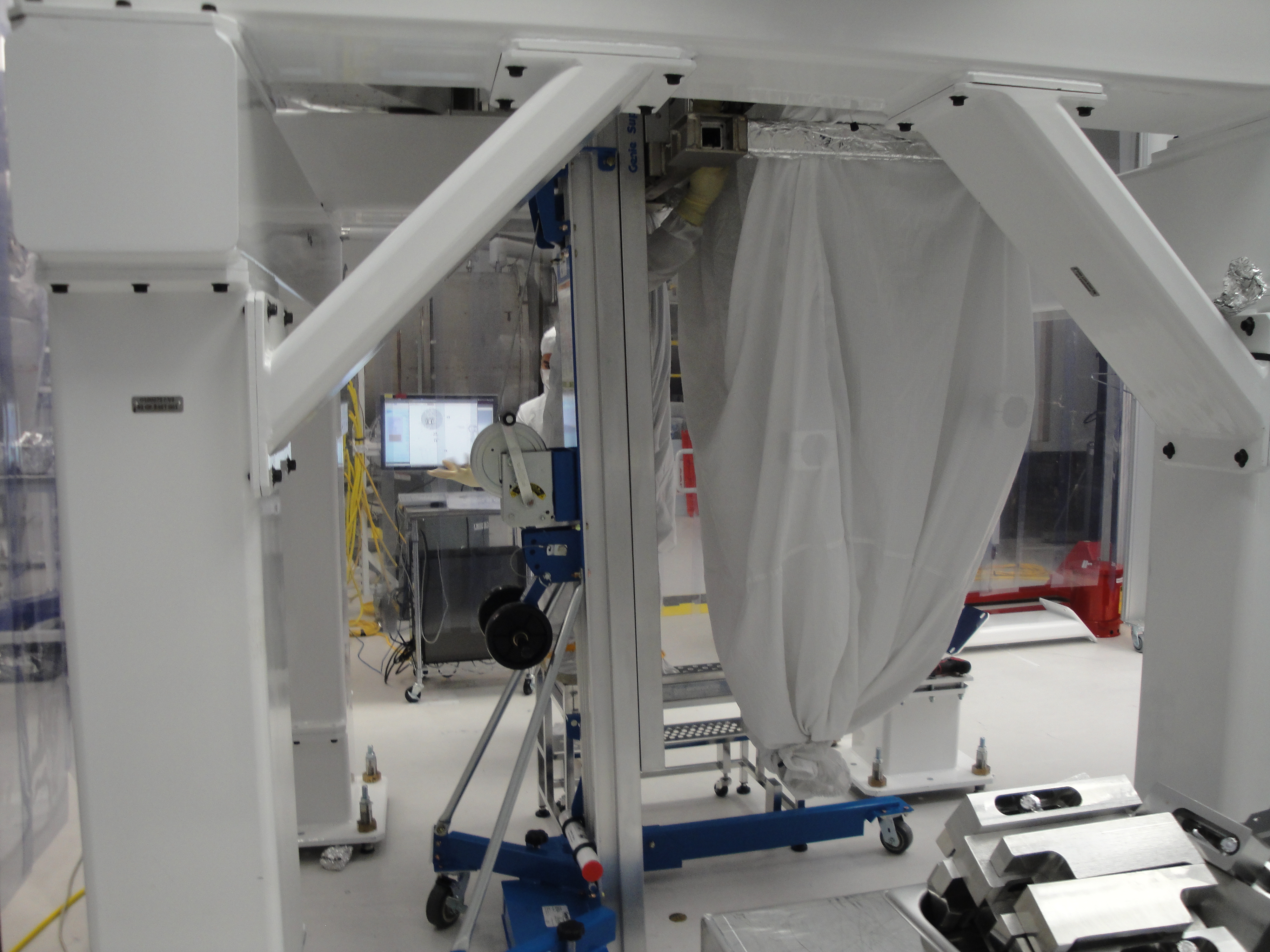

After 2 days and some heroic efforts by a few guys, whose identities shall remain incognito, the formerly-known-as-FMy full suspension has been removed from under the test stand and parked just outside of it. It is strapped to a leg of the test stand now and will be relocated to the BSC2 ISI in another week or after the ISI finishes a few rounds of testing. The maneuver was particularly difficult since the QUAD was still under the ISI, taking up a lot of real estate.
HughR, GregG, JimW Between yesterday afternoon and today, the stage 2 of this assembly had its cap sensors aligned, gapped, then the stage was floated and leveled. After more cps fine tuning, a first pass at cable routing and a round of locker tuning I think stage 2 is pretty well dialed. On Monday we will do more of the same on stage 1, then one more pass at cabling. After that, this ISI should be ready for its first round of testing.
Chub, Gary, Fil, Richard We all spent the week getting the RF system in the front end of the IFO setup. Specific accomplishments include: 1. Powered up all RF components in the CER to propagate signals out into the LVEA. 2. Made up all in-situ RF cables in the CER. Verified all cables and RF components are functioning properly at the right magnitude and frequency. 3. Measured RF losses for each part of the RF distribution system in order to know what value attenuators to add to set the signal levels appropriately. 4. Made up all RF in-rack cabling in the ISC IMC racks out next to the input HAMs. Final QA testing is ongoing. 5. Verified up to Local Oscillator inputs, that the correct RF signal levels exist for locking the IMC length and for proper operation of the IMC WFS detectors This work will continue next week as the last checkout items are completed. Rich
I started the x1ioptstsus1 and x1susquad models on the bscteststand2 computer in the staging building. Manually started awgtpman for iop after correcting an error in the testpoint.par file.
Jim Batch and I have turned off the following coil drivers and AI chassis at EY to allow Alex and company to test and examine the front-end code in search of "mx-streams" issues on the H2 system.
SEI Rack 3 EA SEI coil driver chassis
SUS Rack 3 EA AI filter boxes
TCS Rack 1 EA Ring Heater Driver, 1 EA AI filter box
These should be re-enabled on Monday morning or after Alex has finished his investigations.
Attached are plots of dust counts > .3 microns and > .5 microns in particles per cubic foot. The data was taken from approximately 6 AM to 6 PM. Also attached are plots of the modes to help show when they were running. I moved dust monitor 4 in the LVEA into the clean room over the test stand holding the cartridge assembly. I put it in a narrow space between one of the test stand legs and the clean room curtain.
I noticed on the H1SUSMC2_GDS_TP screen a "red" status under the first (of four) elements for the "RT NET STAT". All other SUS models are "green". Reported to Jim Batch to look into...
Dave B informed us that it is likely triggered and then latched when the model is started. "Diag Reset" clears the error condition.

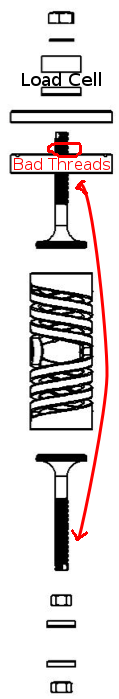

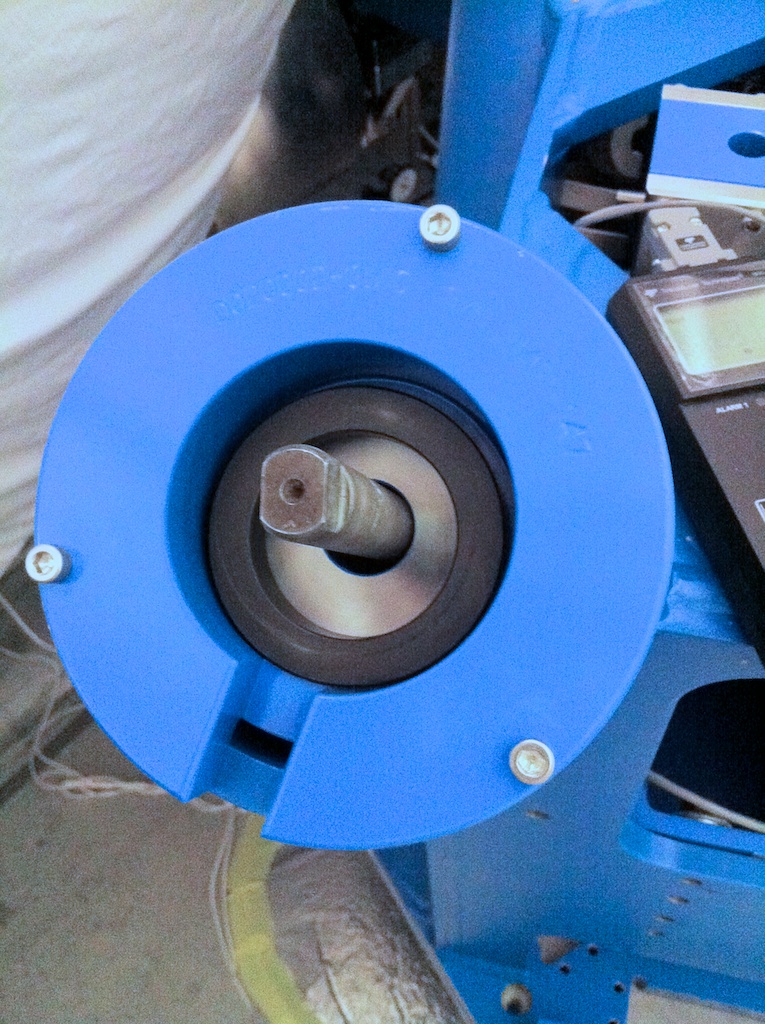

After HAM1 needed a large movement to rectify some measurement issues the springs had come into hard contact with the side of the housing collar. I re-centered the springs and loaded the weight back to the previous values. This brought the support tubes to +- 25 thousandths of an inch. During the process of bringing the support tubes to nominal one of the springs started to bind, and after removing the nut one could see several demolished threads. Tyler G. expertly repaired them and I replaced the spring. The support tubes are now sitting within +- 5 thousandths although with the amount of activity around the dial indicators some of those values may be adulterated. After I locked the HEPI feet down I re-zeroed the dial indicators and hopefully placed them in better positions for when IAS can shoot the table.

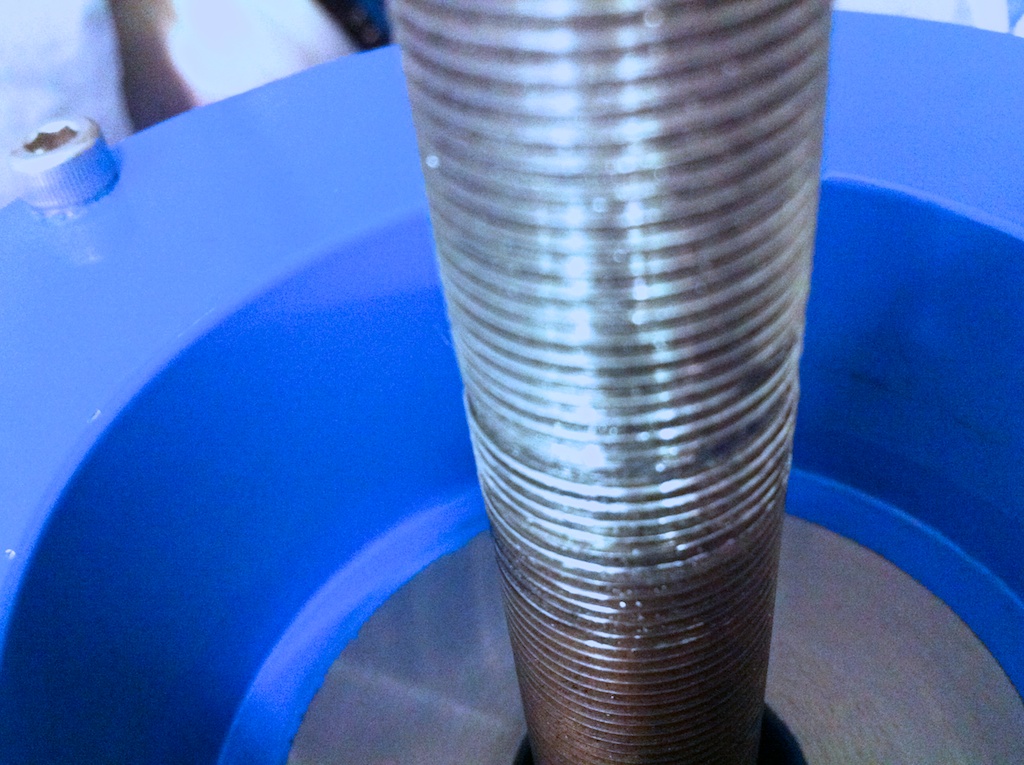

There was some concern about the threads of the spring. The threads were cleaned up on the lathe knocking out the material that had been deposited in the root of the thread. This added a bit of slop where some crests had been lost but I flipped the spring in the housing so the areas supporting the tension of the spring are on good threads.
As requested by Jeff K, I have updated the compensation filters for H1 HXTS suspensions. A similar update previously been carried out at LLO by Joe B (see LLO aLOG entry 4417). The process was first tested with the SR2 (HSTS) suspension, using the prepare script, located in "/ligo/svncommon/SusSVN/sus/trunk/Common/MatlabTools/", with the following Matlab command:- prepare('H1','SUS','SR2','HSTS') Updated foton filter files were then visible from the GDS_TP screen for h1sussr2. The "Coeff Load" button was selected to import the new filters. A cursory check over the medm screens indicated that new filters were in place (see note below). This was then repeated for PR3 (HLTS), PR2, PRM, MC3, MC2, and MC1. The process initially failed (hung-up) for MC2, as this was found to already have in existence h1susmc2.txt.bak and h1susmc2.bak.txt, which prevented the process from completing. Once these were deleted, prepare scripts could complete. N.B. it was observed that the following models did not contain any DAMP filters: SR2, PR3, PRM. I shall confirm if this is intended with Joe B or Jeff K.
Joe B informed us that the "Prepare.m" script did not currently populate the DAMP filter banks. So I have manually copied and pasted via Foton the 'default' filter banks from the MC2 (HSTS) to SR2, SRM and PR3 (HLTS). During this process I also transferred over the normDOF calibration filter from the DAMP filter bank too, with the exception of PR3 given we have not yet calibrated a HLTS suspension.
Mark B. Resuming work on BSFM02. Will take damped and undamped TFs and damped and undamped spectra.
Mark B. Done for the day. Undamped TF data is 2012-09-26_1900_X1SUSBSFM02_M1_*_WhiteNoise.xml, and damped TF data is 2012-09-26_2000_X1SUSBSFM02_M1_*_WhiteNoise.xml . Plots for these data set are appended. I've added the appropriate lines to plotallbsfm_tfs.m and committed it but I haven't run it - I want to check that it does the right thing with data taken on H2 but filed as X1. Spectra time segment starts are startTimeRef.gps = 1032753893; % GPS Start Time Damping OFF startTimeRes.gps = 1032752625; % GPS Start Time Damping ON I still need to generate plots for these and the ones earlier today, but as mentioned previously, first I have to modify plotbsfm_spectraBSFM02.m to accept X1 data (the script it's based on was hard-wired to L1/H1/H2).
Mark B. Here the comparison plot with all the BSFM02 data plus some for the real H2 FMY and X2 BSFM06. The noise in the BSFM02 data sets is rather worse than X2 BSFM06 (but comparable to H2 FMY), so it looks like we don't have the best drive parameters. However it does look like noise and there don't seem to be any significant features common to the noisy bits of 2012-09-25_1100 and 2012-09-26_0900.
Mark B. After some discussion with Stuart, I processed the spectrum data from 7/26/12 morning and evening two ways. First I used a custom plotbsfm_spectraBSFM02.m to process it as X1/BSFM02/BUILD01 with tags of 2012-09-26_0900 (morning) and 2012-09-26_1900 (evening) with names like ^/trunk/BSFM/X1/BSFM02/BUILD01/SAGM*/Results/2012-09-26_*900_X1SUSBSFM02BUILD01H2:SUS-FMY_*.pdf So if anyone is looking for the data by following the directory structure in the usual fashion for a Phase 1b test, appropriate plots will be there. The captions in these plots also specify X1 BSFM02 primarily and H2 FMY secondarily. We also used the stock plotbsfm_spectra.m to process the data purely as H2:FMy with names like ^trunk/BSFM/H2/FMY/SAGM*/Results/2012-09-26_1900_H2SUSFMY_*.pdf This is so that it can be found by the stock version of plotallbsfm_spectra.m, which Stuart felt was too much hassle to customize. We added two new lines to the measList section with comments to the effect that the suspension in each case was really BSFM02. Attached is a set of comparison plots with the morning and afternoon's data. Unfortunately we couldn't include the 'L1','BS','2012-09-24_1200' dataset because it doesn't seem to have been committed from LLO.
In preparation for the Acceptance review, I redid the TF plots with up-to-date comparisons.
Red: 3IFO Phase 1b undamped (2012-09-26_1900)
Pink: 3IFO Phase 1b damped (2012-09-26_2000)
Black: H1 BS Phase 3b undamped (2013-07-30_1059269030)
Orange: L1 BS Phase 3b undamped (2013-08-29_0900)
Because the data was taken on a mechanical test stand in the LVEA with other work going on around, it is somewhat noisy (especially up to about 0.6 Hz in most DOFs and throughout in P) and the damping is a bit strong, but the peaks in the undamped TFs are very clean and in exactly the right positions.
I also redid the spectra with comparisons.
Green: 3IFO BS 2012-09-26_0900
Red: 3IFO BS 2012-09-26_1900 (later the same day)
Cyan: H1 BS 2013-02-25_1000 (on BSTST test stand)
Purple: H1 BS 2013-07-24_1400
Blue: L1 BS 2013-11-27_0930
