WP 12844
ECR E2400330
Modified List T2500232
The following SUS SAT Amps were upgraded per ECR E2400330. Modification improves the whitening stage to reduce ADC noise from 0.05 to 10 Hz.
| Suspension | Old | New | OSEM |
| MC1 M2 | S1100182 | S1100148 | ULLLURLR |
| MC1 M3 | S1100176 | S1100135 | ULLLURLR |
| MC3 M2 | S1100069 | S1100106 | ULLLURLR |
| MC3 M3 | S1100123 | S1100093 | ULLLURLR |
| PR3 M2 | S1100063 | S1000274 | ULLLURLR |
| PR3 M3 | S1100113 | S1000277 | ULLLURLR |
| MC2 M2 | S1100110 | S1100169 | ULLLURLR |
| MC2 M3 | S1000294 | S1100174 | ULLLURLR |
| SR3 M2 | S1100105 | S1100146 | ULLLURLR |
| SR3 M3 | S1100074 | S1100134 | ULLLURLR |
F. Clara, J. Kissel, O. Patane
Edgard, Oli
Edgard got everything done for the PR3 and SR3 L estimator, so I was able to install all the filters and turn them on. Along with the L to L estimator parts, this also included L to P models, and involved updates to the P estimator's P to P and P to L fits.
We are running the L estimator and the updated P estimator as of 2025-10-21 20:18:00 UTC.
The LVEA has been swept, no items of note.
We built on the templates set by the PR3 L/P estimator blends [see LHO: 87596] to create Length and Pitch blend filters for the SR3 OSEM estimator.
The functions that make the model and OSEM filters live in:
blend_SR3_lengthv2_LP_est.m
blend_SR3_pitchv2_LP_est.m
The files were committed to the SVN at (svnRoot)/sus/trunk/HLTS/Common/FilterDesign/Estimator/ under revision 12741.
make_EST_blends.m in the same folder should work for getting these onto the real-time model.
Follow up to Oli's measurements in [LHO: 87363 LHO: 87611].
We did the fitting for the SR3 OSEM estimator with the M1 drive measurements from today plus the Suspoint measurements from two weeks ago.
The plant is not nearly as reciprocal as the PR3 plant, I wonder what that means.
The fits had to be obtained by tweaking over the PR3 OSEM estimator model posted in [LHO: 87593]. This worked really fast, and produced very clean results. I think we might use this method as a way to retune the estimators in the future.
The .pdf attached has the image of the Estimator L/P models for bookkeeping.
The fits are contained in fits_H1SR3_LP-2025-10-07.mat have been uploaded to the SVN under revision 12740 to
(svnroot)/sus/trunk/HLTS/Common/FilterDesign/Estimator.
Here are the ZPKs for the model
_____________________________________________________________________________
SUSPOINT TO M1
Suspoint L to M1 L fit
zpk([0,0,-0.06-4.33i,-0.06+4.33i,-0.051-7.177i,-0.051+7.177i,-0.089-15.255i,-0.089+15.255i],[-0.073-4.136i,-0.073+4.136i,-0.07-4.666i,-0.07+4.666i,-0.071-9.92i,-0.071+9.92i,-0.155-18.168i,-0.155+18.168i],-0.001)
Suspoint L to M1 P fit
zpk([0,0,0.935-6.789i,0.935+6.789i,-1.049-6.865i,-1.049+6.865i,-1.085-18.474i,-1.085+18.474i,0.833-18.561i,0.833+18.561i],[-0.078-4.113i,-0.078+4.113i,-0.058-4.655i,-0.058+4.655i,-0.071-9.916i,-0.071+9.916i,-0.165-13.116i,-0.165+13.116i,-0.221-18.058i,-0.221+18.058i,-0.053-21.596i,-0.053+21.596i],0.383)
Suspoint P to M1 L fit
zpk([0,0,-0.103-4.364i,-0.103+4.364i,-0.095-9.007i,-0.095+9.007i,-0.071-17.115i,-0.071+17.115i],[-0.071-4.094i,-0.071+4.094i,-0.055-4.64i,-0.055+4.64i,-0.062-9.948i,-0.062+9.948i,-0.158-18.146i,-0.158+18.146i],0)
Suspoint P to M1 P fit
zpk([0,0,-0.002-4.162i,-0.002+4.162i,0.006-4.65i,0.006+4.65i,0.036-5.615i,0.036+5.615i,-0.011-9.179i,-0.011+9.179i,-0.065-9.837i,-0.065+9.837i,-0.052-14.212i,-0.052+14.212i,-0.017-21.873i,-0.017+21.873i],[-0.06-4.105i,-0.06+4.105i,-0.01-4.178i,-0.01+4.178i,-0.02-4.629i,-0.02+4.629i,-0.028-4.68i,-0.028+4.68i,-0.019-9.793i,-0.019+9.793i,-0.045-9.975i,-0.045+9.975i,-0.139-13.128i,-0.139+13.128i,-0.041-21.608i,-0.041+21.608i],-0.001)
M1 DRIVE TO M1
M1 drive L to M1 L fit
zpk([-0.067-4.297i,-0.067+4.297i,-0.003-5.174i,-0.003+5.174i,-0.024-12.283i,-0.024+12.283i],[-0.064-4.12i,-0.064+4.12i,-0.057-4.635i,-0.057+4.635i,-0.072-9.904i,-0.072+9.904i,-0.155-18.168i,-0.155+18.168i],0.136)
M1 drive L to M1 P fit
zpk([1.502-5.563i,1.502+5.563i,-1.589-5.824i,-1.589+5.824i,-14.284,14.718,1.462-17.431i,1.462+17.431i,-1.276-17.775i,-1.276+17.775i],[-0.068-4.121i,-0.068+4.121i,-0.063-4.638i,-0.063+4.638i,-0.072-9.905i,-0.072+9.905i,-0.158-13.118i,-0.158+13.118i,-0.163-18.132i,-0.163+18.132i,-0.056-21.582i,-0.056+21.582i],0.078)
M1 drive P to M1 L fit
zpk([1.399-5.266i,1.399+5.266i,-1.594-5.6i,-1.594+5.6i,2.034-16.482i,2.034+16.482i,-2.192-17.091i,-2.192+17.091i],[-0.073-4.113i,-0.073+4.113i,-0.06-4.63i,-0.06+4.63i,-0.068-9.924i,-0.068+9.924i,-0.163-13.118i,-0.163+13.118i,-0.143-18.158i,-0.143+18.158i,-0.072-21.583i,-0.072+21.583i],-25.295)
M1 drive P to M1 P fit
zpk([-0.075-4.398i,-0.075+4.398i,0-5.423i,0+5.423i,-0.068-9.979i,-0.068+9.979i,-0.002-20.622i,-0.002+20.622i],[-0.069-4.109i,-0.069+4.109i,-0.051-4.632i,-0.051+4.632i,-0.076-9.938i,-0.076+9.938i,-0.164-13.126i,-0.164+13.126i,-0.074-21.58i,-0.074+21.58i],76.066)
I needed to retake measurements for the SR3 M1 to M1 L estimator in the L and P degrees of freedom because the ones from 87363 didn't have good enough coherence.
Settings:
- ISI in ISOLATED
- SUS in ALIGNED
- Estimators off (using regular damping)
- L DAMP gain to 20% (-0.1), P DAMP gain at 20% (-0.1), Y DAMP gain to 100% (-0.5)
Results:
M1 to M1
/ligo/svncommon/SusSVN/sus/trunk/HLTS/H1/SR3/SAGM1/Data/2025-10-21_1600_H1SUSSR3_M1_WhiteNoise_EstL_{L,P}_0p02to50Hz.xml r12738
These have a lot better coherence now
Since it was installed, HAM7 ISI has been prone to trips if people are working nearby. Often walking by the chamber is enough, but work in the squeeze racks, HAM6 ISC racks or unplugging electronics from nearby outlets has caused CPS saturations. After talking to Jeff, we decided to try disconnecting HAM7 from the corner timing system and try running the ISI using it's own local 10khz timing clock signal. I pulled the P3 jumper from the H1 CPS and disconnected the timing DB9 that connects HAM7 to the timing system. Position readout seems unchanged before vs. after the change. This shouldn't affect anything else.
As I entered the VEA at X-End I noticed an out place noise, I tracked the noise source to be a noisy power supply at the vacuum rack. Made the report to Filiberto and Richard, noise points to a fan issue.
Filed a FRS ticket, number 35689.
WP12849 Marc is replacing the old PowerTen DC power supply at EX. This supplies the Beckhoff vacuum controls for h0veex. It also supplies the Beckhoff HEPI Pump Controller chassis.
EDC lost 1197 channels when power supply was off (VAC and HPI_PUMPCTRL)
Vac is now back and burt restored at 11:10, we are working on getting the HEPI pump controller back.
Power supply was replaced with Sorensen DCS33-33E supply. Everything powered back up eventually, minor issues with the HEPI controller were solved. This completes WP12849
F. Clara, R. McCarthy, G. Moreno, M. Pirello
HEPI controller did not come back on its own. This computer doesn't seem to be set up to start TwinCAT and tcioc automatically. Started both processes manually, but run into an issue that the TwinCAT system was running, but the PLC code was not. After recompiling the PLC code and loading it, the system finally came up.

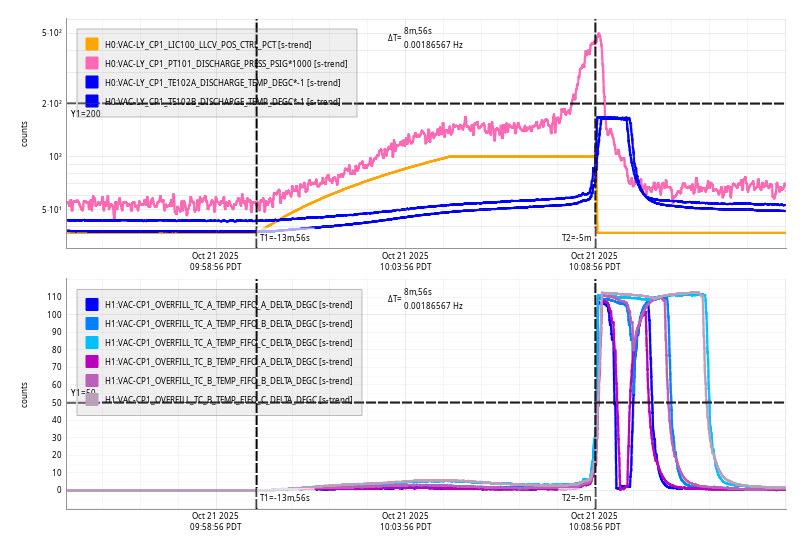

Tue Oct 21 10:08:56 2025 INFO: Fill completed in 8min 53secs
After my change to the laser power guardian (87545 87581) caused a problem last night (87598) , I edited it so that the power scaling is set to a function. If the IMC is locked, it will use IMC-IM4_TRANS_NSUM_OUTMON , if not it will use H1:IMC-PWR_IN_OUT16.

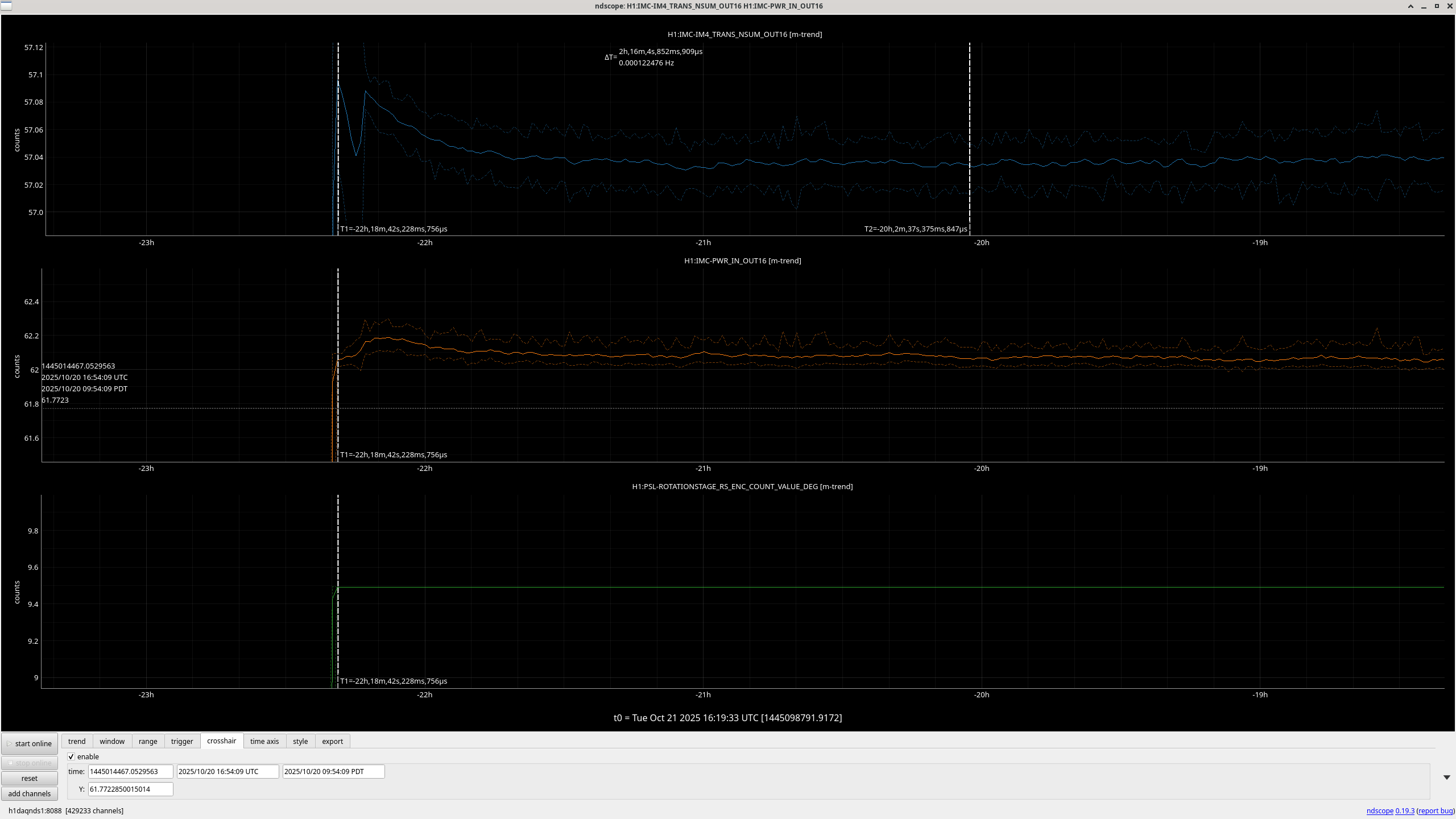

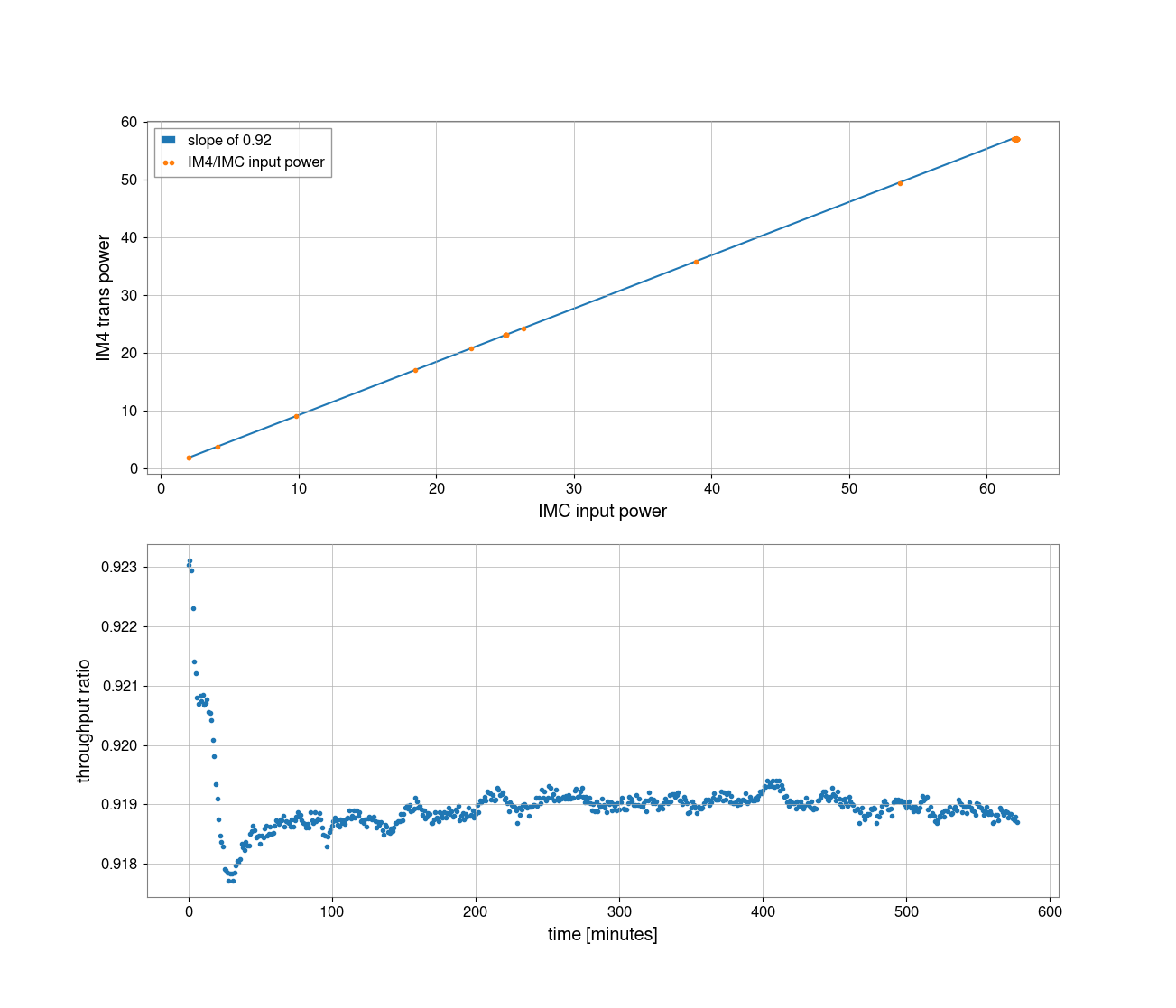

I also made a plot to check if the IMC throughput is dropping as we power up, it is dropping but only by 0.4%.
Per FAMIS, VEA AHU fans were lubricated and swapped. Where AHU 2 previously operated both fans, and AHU 1 operated just 1 this has been flipped. AHU 1 is presently running both fans while AHU 2 runs just one. Ahead of this swap, the non-running fan in AHU 1 was SF1 (nearest the exterior wall). E. Otterman T. Guidry
TITLE: 10/21 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Microseism
OUTGOING OPERATOR: TJ
CURRENT ENVIRONMENT:
SEI_ENV state: USEISM
Wind: 8mph Gusts, 5mph 3min avg
Primary useism: 0.08 μm/s
Secondary useism: 0.71 μm/s
QUICK SUMMARY:
Detector was put in DOWN earlier due to very high secondary ground motion. Maintenance day is today.
Several Guardian nodes reloaded at 07:45 this morning, modifed sqzparams.py
sqzparams.py was modifed yesterday evening at 19:40 and SQZ_ANG_ADJUST was reloaded at that time to apply the code change. Five other Guardian nodes import sqzparams.py and were in CFC state this morning.
I took the opportunity to test the automatic loading of these nodes after verifying none use the modified lines in sqzparams.py. The command is
guardian_modified_not_loaded --load-nodes
a confirmation is required before proceeding with the load. The nodes loaded were (pre-load params shown):
======================================================================================
Node Status File Source Date Running Date
======================================================================================
SQZ_CLF_LR NOT LOADED sqzparams.py 19:40 Mon 20oct2025 08:49 Tue 14oct2025
SQZ_FC NOT LOADED sqzparams.py 19:40 Mon 20oct2025 10:19 Mon 20oct2025
SQZ_MANAGER NOT LOADED sqzparams.py 19:40 Mon 20oct2025 10:19 Mon 20oct2025
SQZ_OPO_LR NOT LOADED sqzparams.py 19:40 Mon 20oct2025 19:29 Mon 20oct2025
THERMALIZATION NOT LOADED sqzparams.py 19:40 Mon 20oct2025 10:18 Mon 20oct2025
======================================================================================
GRD CFC is now green.
Workstations were updated and rebooted. This was both an OS packages update and a conda packages update.
In the CDS conda environment, the python package dttxml was updated to fix a bug, details here: https://git.ligo.org/cds/software/dttxml/-/issues/17
Ryan S, Keita K, TJ S
After the lock loss at 0427 UTC (2027PT), Ryan S started an initial alignment. Green went as usual, but he couldn't get Xarm IR to go. I'll put more details below, but the issue was that the change I made earlier today to change the LASER_PWR guardian to use the IM4 trans channel (alog87581) upon Sheila's findings that gain scaling based on IMC REQUEST caused gain reductions after the power outage (alog87545), caused the power scaling to go to -1.4 after the lock loss. We reverted this change and will have to make it a bit smarter to use this channel in the future.
More details:

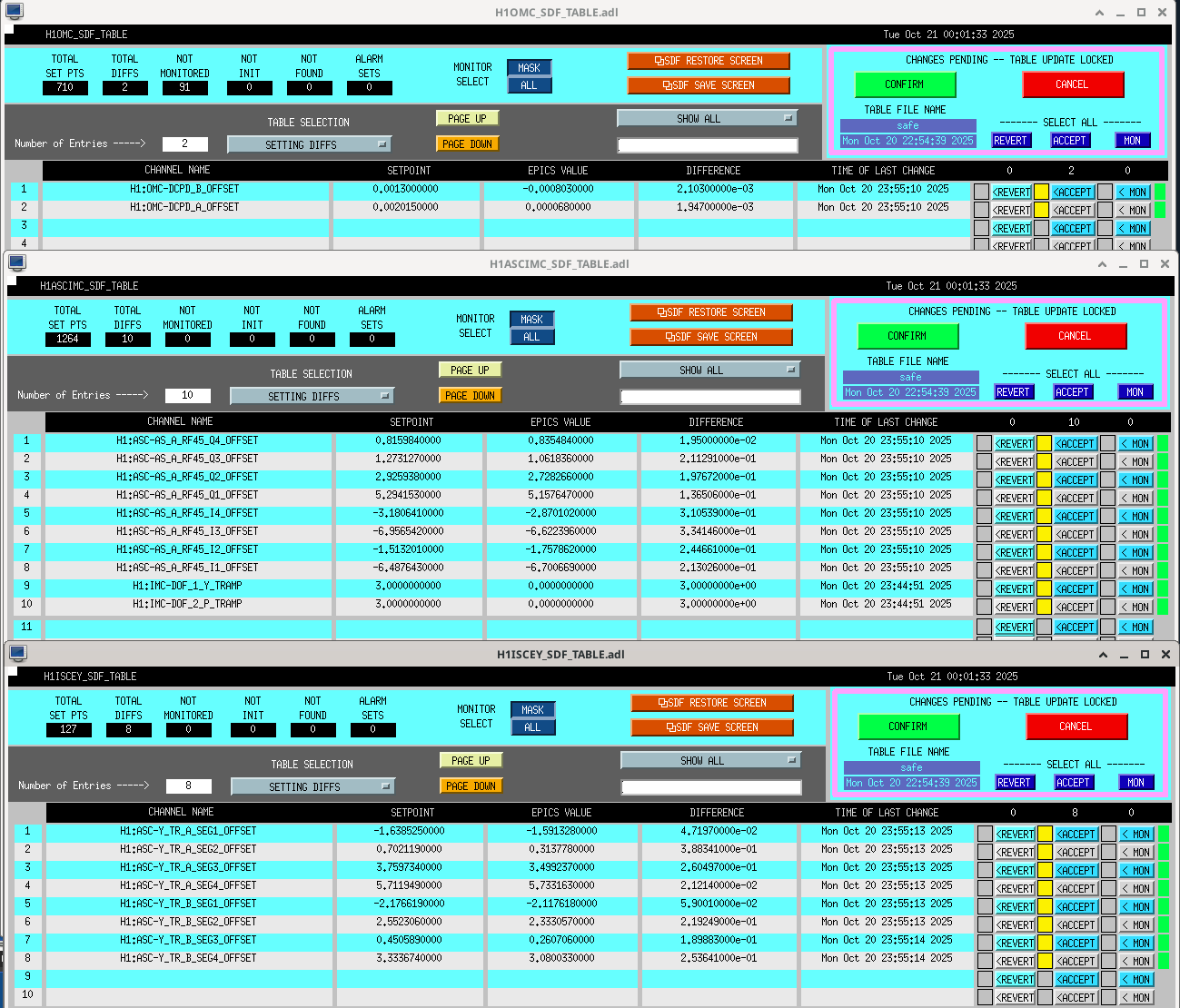

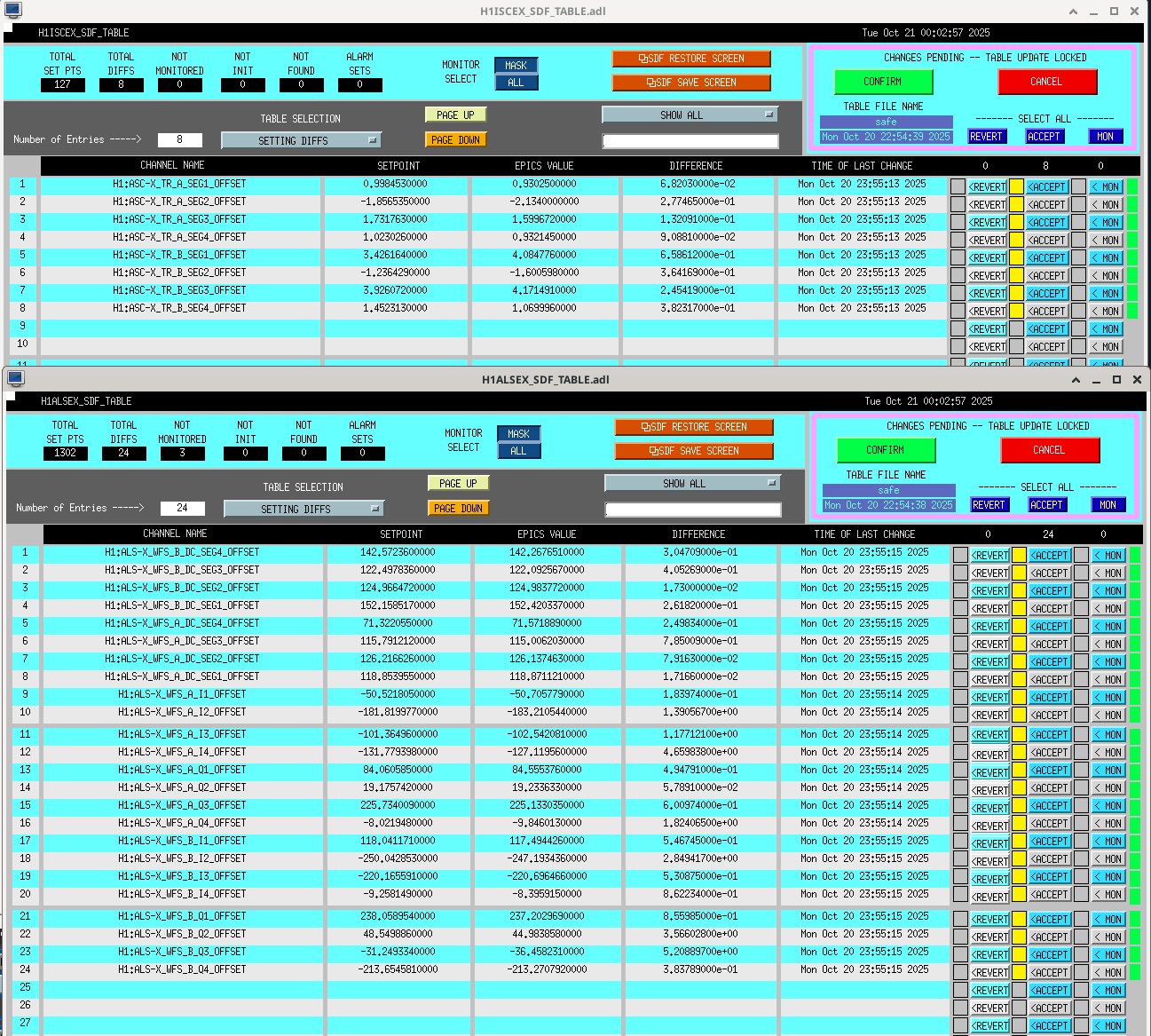

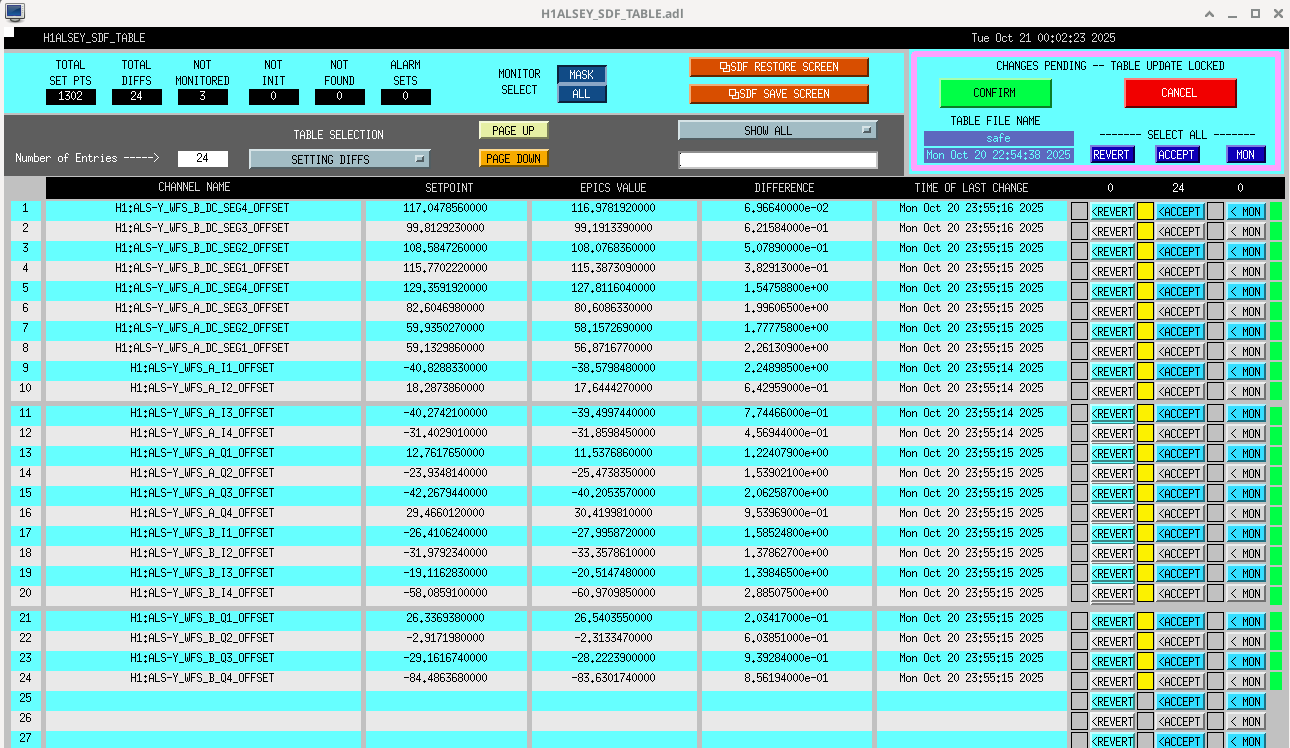

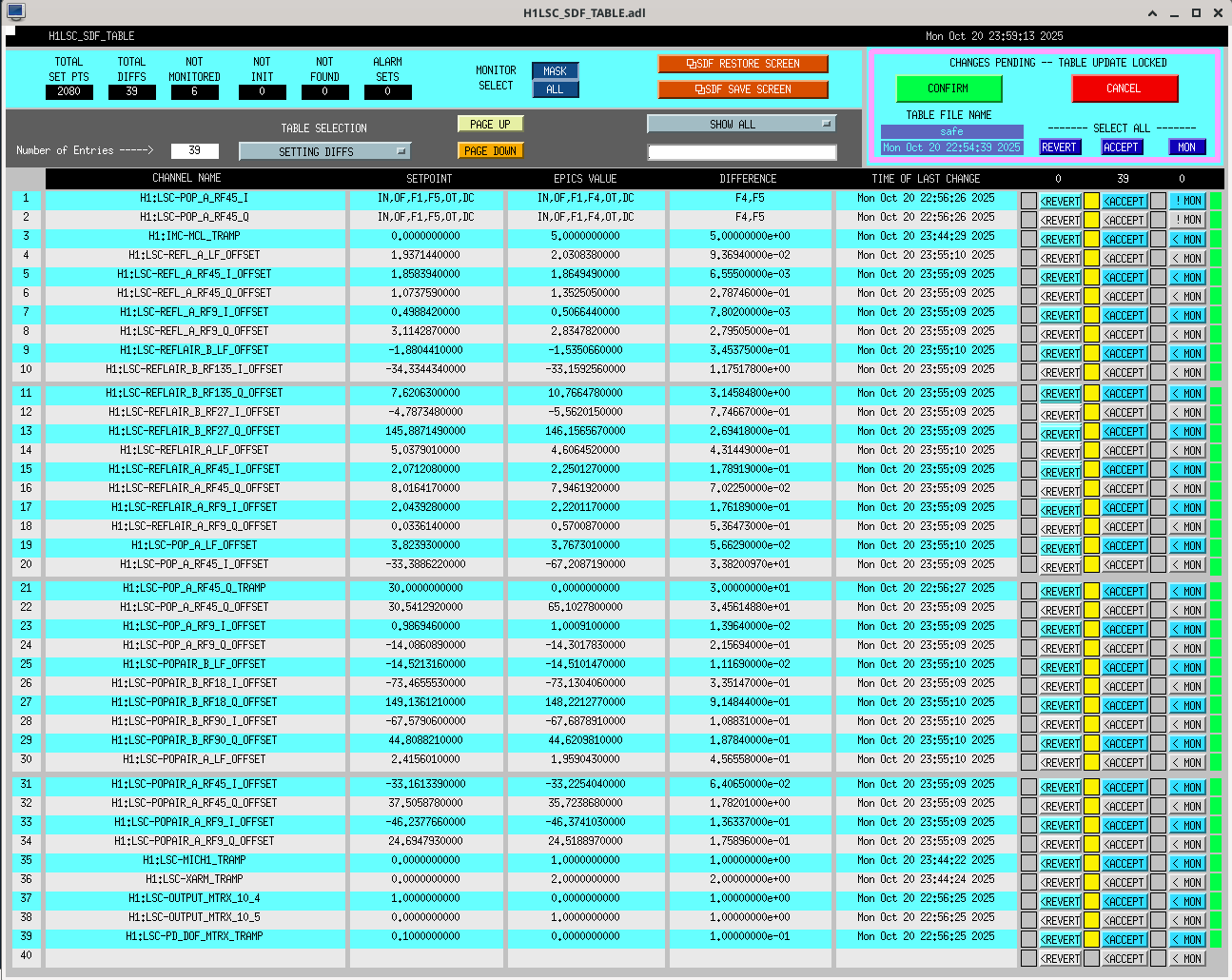

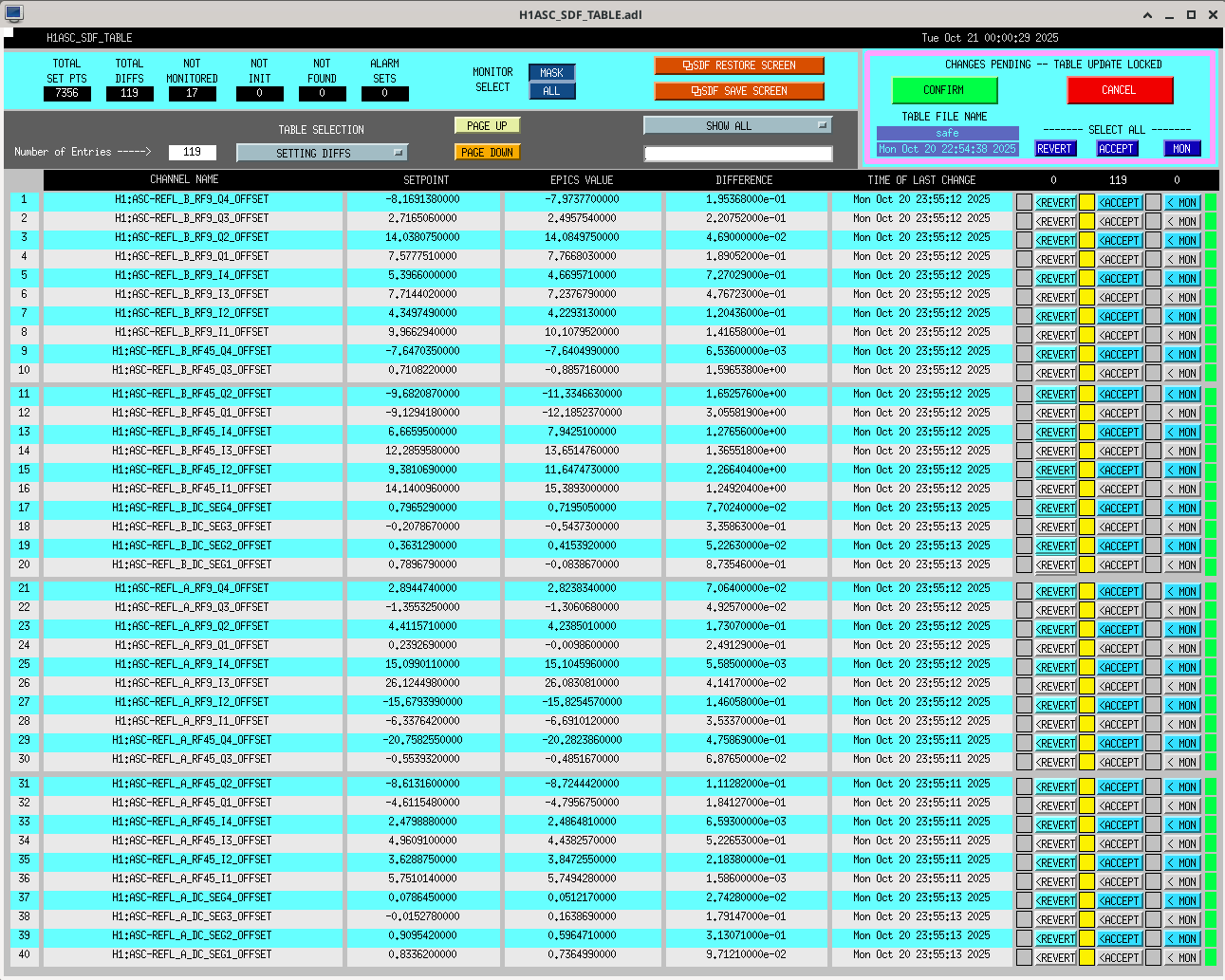

Ryan and I initially thought it was an odd alignment and chased that with the usual checking of suspension alignments, checking temperatures, etc. We just couldn't get any flashes to show up on LSC-TR_X_NORM_INMON. On the front FOM, POP90 was visible and noisy, both things that shouldn't be at this point of initial alignment. We eventually thought that maybe it was a dark offset issue since the TR_X channel wasn't quiet at 0, so we ran the dark offset script. This didn't help but I've attached the SDF screenshots. While looking at this channel more, Ryan noticed that it would dip below 0 frequently, almost as if it was flashing but into the negative values. Sign flip somehow? We tried to understand this for awhile and eventually gave up to call the top person on the call list, Keita.

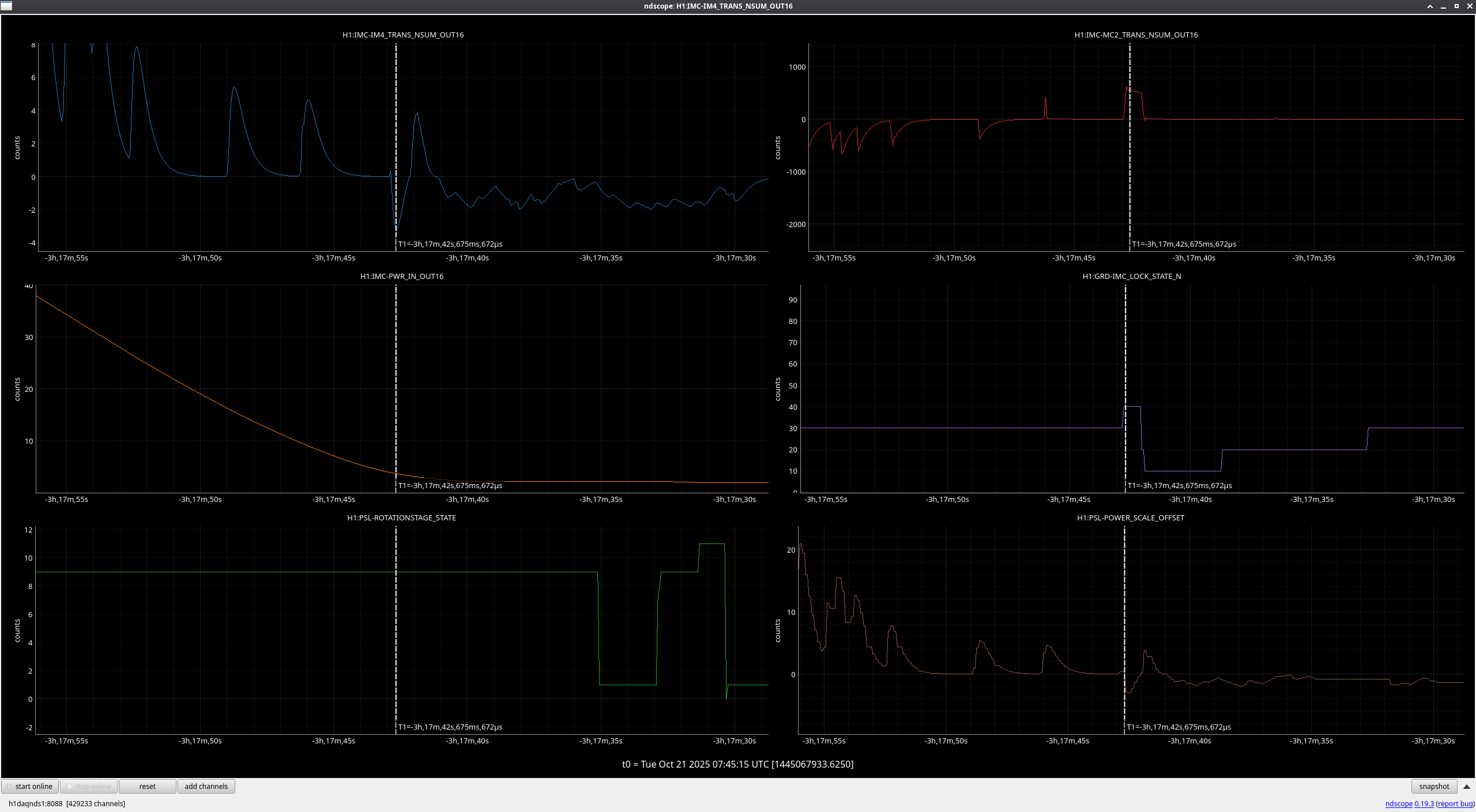

While we were describing the issue to Keita and starting to look into where a sign flip could have happened, Ryan noticed that the power scaling was at -1.4. Since this should just scale with the IFO input power, it shouldn't ever be negative. I plugged in 2.0 and, then everything looked normal again. Looking at the last attachment, IM4 trans goes negative when we lost lock and powered down. The power scaling adjusted as such, and stopped adjusting when the rotation stage stopped moving, as it was supposed to do. If we want to use this channel, we'll have to add some logic to avoid this.
The rest of initial alignment went ok, I had to manual over the PRC offload check because the high useism. DRMI and PRMI aren't locking now, it looks like due to ground motion, but I'll have it try another initial alignment again and report back.
I'm putting the observatory mode to useism and stopping trying to lock. I've had another initial alignment and numerous small DRMI locks, but it just won't hold longer than a minute. Flashes look great, but there is just too much ground motion to hold. Maintenance day starting soon.
Saturday standard coordinated calibration sweep
BB Start: 1444847709
BB End: 1444848020
Simulines Start: 1444848233
Simulines End: 1444849630
2025-10-18 19:06:16,282 | INFO | Finished gathering data. Data ends at 1444849593.0
2025-10-18 19:06:16,498 | INFO | It is SAFE TO RETURN TO OBSERVING now, whilst data is processed.
2025-10-18 19:06:16,498 | INFO | Commencing data processing.
2025-10-18 19:06:16,498 | INFO | Ending lockloss monitor. This is either due to having completed the measurement, and this functionality being terminated; or because the whole process was aborted.
2025-10-18 19:06:52,301 | INFO | File written out to: /ligo/groups/cal/H1/measurements/DARMOLG_SS/DARMOLG_SS_20251018T184336Z.hdf5
2025-10-18 19:06:52,309 | INFO | File written out to: /ligo/groups/cal/H1/measurements/PCALY2DARM_SS/PCALY2DARM_SS_20251018T184336Z.hdf5
2025-10-18 19:06:52,314 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L1_SS/SUSETMX_L1_SS_20251018T184336Z.hdf5
2025-10-18 19:06:52,319 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L2_SS/SUSETMX_L2_SS_20251018T184336Z.hdf5
2025-10-18 19:06:52,324 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L3_SS/SUSETMX_L3_SS_20251018T184336Z.hdf5
PDT: 2025-10-18 12:06:52.452839 PDT
UTC: 2025-10-18 19:06:52.452839 UTC
CALIBMONITOR attached (took screenshot after requesting NLN_CAL_MEAS - might be a mistake but do not know)
I generated the pydarm report from this measurement. I ended up changing "pro-spring" to False and regenerating.
Jennie W, Sheila,
I took a long time to post this as have been working on other things...
We carried out a test (see LHO alog #86785) to look at the effect of DARM offset stepping on the power at OMC-DCPD_SUMS and OMC-REFL (transmitted through and reflected from the OMC). We did this with the heater on OM2 off as is nominal.
We then meant to redo these measurements once we heated up OM2 to change the mode-matching of the IFO to the OMC.
Unbfortunately we lost lock at about 15:06 UTC while Corey was taking out first measurement before heating up the OM2.
The meausrement is shown in this image, I have mislabelled it as 'third measurement' but it was the first. The optical gain is shown just before this measurment to be 0.994.
Then we waited as long as we could under out initial parameters of being finished cooling the OM2 again by 1:45pm.
We took another measurement at 1 hr 25 mins into lock after two false starts where I forgot to turn off the ASC. The optical gain was measured right before we started the measurements to be 0.978 but was still thermalising.
And then we took a third 2 hrs 59 minutes into lock, the IFO should be thermalised but the temperature of OM2 was still trending upwards a bit. Optical gain was 0.986.
We can use the slope of the power at the antisymmetric port (P_AS) vs. the power at the DCPDs (P_DCPD) as the DARM offset changes to estimate the throughput of carrier through the OMC which allows us one estimate of the loss.
The plots of this throughput are here for the cold state (minus the points taken after we lost lock), here for the partially thermalised state, and here for the thermalised state.
I am also in the middle of using the plot of P_AS varying with power at the OMC reflected port (P_REFL) to get a better estimate of the mode-mis match between the interferometer and the OMC.
I plotted the loss between the antisymmetric port (calibrated into the power entering HAM6) to the power on the DCPDs. This is the inverse of the slopes in the graphs above.
All three are poltted on one graph, using plot_AS_vs_DCPD_changes.py in my own cope of the labutils repository at /ligo/home/jennifer.wright/git/local_git_copies/labutils/darm_offset_step/ .
Sheila and Camilla both agreed the loss for the two bottom lines (purple and red) are too high. These imply that a hot OM2 gives us over 20 % output losses.
If we look at the increase in loss from cold OM2 to hot OM2 this is a factor of 2.1 (210 % increase).
Compared to the decrease in optical gain squared (which we expect to reflect the change in output losses, which was:
(0.986^2 - 0.994 ^2) / 0.994^2 = -0.016 (1.6 % decrease).
We might have to check the alignment of out optics was not changing while we changed the darm offset.
Looking at OM1, OM2 and SRM alignment it did change during the darm offset steps with the biggest change (in the third offsset step measurement) being in OM2 pitch and yaw, this is only a change around 6 microradians (Elenna and Jeff state this calibration in correct to within an order of magnitude). Not sure if this enough to invalidate the loss values we measure. OM3 and OMC sus did not change much but this is because IU purposely unlocked the OMC ASC while changing the darm offset.
Jennie W, Matt T,
I plotted the antisymmetric power during the darm offset step vs. the power reflected by the OMC and am now very confused as the AS power looks to be smaller than the power reflected form the OMC. See the ndscope where I have zoomed in on the same time segment for both channels. The OMC-REFL channel is mean to be calibrated into mW and the ASC-AS_C channel is meant to be calibrated into W entering HAM 6 (even though the actual pick-off is the transmission through OM1).
The two plots attached show how the ratio between AS and OMC-REFL power changes during one of the DARM offset measurements we did right after I took this ndscope data.
Plot 1 hr 25 mins into lock.
Plot 2 hrs 59 mins into lock.
For each point the code returns the median of the time series at each step, this mioght be less valie for OMC-REFL as it is a lot noisier than ASC-AS_C.
I am still confused about the hogher power at OMC-REFL and wondering if:
a) I am confused about the calibration of one of these channels.
b) the calibration of one of these channels is wrong.
Here's the characterization data and fit results for S1100148, assigned to MC1 M2's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100148_MC1_M2_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100148_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100135, assigned to MC1 M3's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100135_MC1_M3_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100135_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100106, assigned to MC3 M2's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100106_MC3_M2_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100106_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100093, assigned to MC3 M3's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100093_MC3_M3_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100093_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1000274, assigned to PR3 M2's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1000274_PR3_M2_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1000274_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1000277, assigned to PR3 M3's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1000277_PR3_M3_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1000277_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100169, assigned to MC2 M2's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100169_MC2_M2_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100169_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100174, assigned to MC2 M3's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100174_MC2_M3_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100174_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100146, assigned to SR3 M2's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100146_SR3_M2_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100146_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
Here's the characterization data and fit results for S1100134, assigned to SR3 M3's ULLLURLR OSEMs.
This sat amp is a UK 4CH sat amp, D0900900 / D0901284. The data was taken per methods described in T080062-v3, using the diagrammatic setup shown on PAGE 1 of the Measurement Diagrams from LHO:86807.
The data was processed and fit using ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Scripts/
plotresponse_S1100134_SR3_M3_ULLLURLR_20251020.m
Explicitly, the fit to the whitening stage zero and pole, the transimpedance feedback resistor, and foton design string are:
The attached plot and machine readable .txt file version of the above table are also found in ${SusSVN}/trunk/electronicstesting/lho_electronics_testing/satamp/ECR_E2400330/Results/
2025-10-20_UKSatAmp_S1100134_D0901284-v5_fitresults.txt
Per usual, R_TIA_kOhm is not used in the compensation filter -- but after ruling out an adjustment in the zero frequency (by zeroing the phase residual at the lowest few frequency points), Jeff nudged the transimpedance a bit to get the magnitude scale within the ~0.25%, shown in the attached results. Any scaling like this will be accounted for instead with the absolute calibration step, i.e. Side Quest 4 from G2501621, a la what was done for PR3 and SR3 top masses in LHO:86222 and LHO:84531 respectively.
